Zooz
S2 Double Plug with USB Port
ZEN25
On/Off Power Switch
HW: 255 FW: 1.00
ZM5202
6.71.03
0x027A (634)
0xA000 (40960)
0xA003 (40963)
ZC10-18126338
2018-12-14 21:52:09.920414
N/A
Enhanced 232 Slave
Always On Slave
Use this Double Plug to control 2 devices individually or together. The USB port reports on/off status for charging/charged notifications.
FEATURES: - Z-Wave on/off control of 2 electrical devices UP TO 10 A - On/off (charging/charged) reports from USB port to the hub (no Z-Wave control) - turn off the charging device for best results Energy monitoring for each outlet - Smart LED indicator displays power use and Z-Wave signal strength - Built-in overload protection and ETL certification - Z-Wave Plus signal repeater to extend network range - S2 security and 500 Z-Wave chip for reliable wireless communication SPECIFICATIONS: - Model Number: ZEN25 - Z-Wave Signal Frequency: 908.42 MHz - Power: 120 VAC - Maximum Load: 10 A total (between 2 outlets) - Maximum Load for USB port: 2.1 A - Range: Up to 100 feet line of sight - Installation and Use: Indoor only

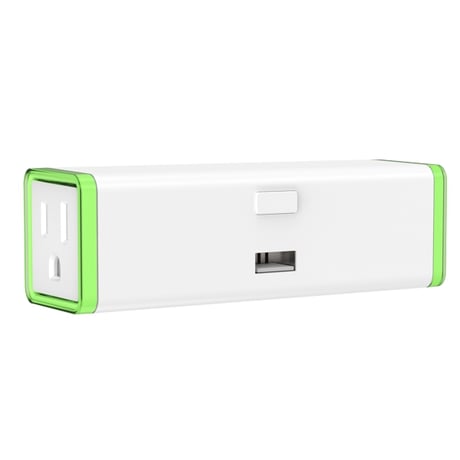

Product Picture
1 - On/Off Status Recovery A er Power Failure
Choose the recovery state for your Double Plug’s outlets if power outage occurs.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Double Plug remembers the status for each outlet prior to power outage and turns back to it |
| 1 | 1 | Double Plug automatically turns ON for each outlet once power is restored (it does not remember the status prior to power outage) |
| 2 | 2 | Double Plug automatically turns OFF each outlet once power is restored (it does not remember the status prior to power outage) |
2 - Power Wattage Report Value Threshold
Choose how you want your Double Plug to report power consumption to your hub. The number entered as value corresponds to the number of Watts the appliance needs to go over for the change to be reported. So if 5 Watts are entered by default, the Double Plug will report any change in power usage over 5 Watts for each outlet (whether it’s at least 5 Watts more or 5 Watts less compared to previous report).Size: 4 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disabled (Double Plug will not report power consumption based on this setting). |
| 1 | 65535 | number of Watts the appliance needs to go over for the change to be reported |
3 - Power Wattage Report Frequency
The number entered as value corresponds to the number of seconds. So if 30 is entered by default, the Double Plug will report power consumption (Wattage) every 30 seconds.Size: 4 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 30 | 2678400 | interval for power consumption reports in seconds |
4 - Energy (kWh) Report Frequency
Choose how often you want your Double plug to report power consumption (W) to your controller (hub). The number entered as value corresponds to the number of seconds. So if 300 is entered by default, the Double Plug will report energy usage every 300 seconds (5 minutes).Size: 4 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | interval for energy (kwh) reports in seconds |
5 - Voltage (V) Report Frequency
Choose how often you want your Double plug to report voltage to your controller (hub). The number entered as value corresponds to the number of seconds. So if 300 is entered by default, the Double Plug will report voltage every 300 seconds (5 minutes).Size: 4 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | interval for voltage (V) reports in seconds |
6 - Electrical Current (A) Report Frequency
Choose how often you want your Double plug to report electrical current (A) to your controller (hub). The number entered as value corresponds to the number of seconds. So if 300 is entered by default, the Double Plug will report current every 300 seconds (5 minutes).Size: 4 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 5 | 2678400 | interval for electrical current (A) reports in seconds |
7 - Overload Protection
Set the amp level for overload protection to kick in. The number entered as the value corresponds to the total number of amps the Double Plug needs to detect across both outlets to turn off automatically and send a notification to the hub and associated devices.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 10 | number of Amps |
8 - Enable / Disable Auto Turn-Off Timer for CH1
Use this parameter to enable or disable the auto turn-off timer for the left (CH1) outlet. If this feature is enabled, the device connected to CH1 outlet will automatic er a fixed period of time from being turned on (set in parameter 9).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 1 | timer enabled |
9 - Set Auto Turn-Off Timer for CH1
Use this parameter to set the time after which you want the device connected to the left (CH1) outlet to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | minutes |
10 - Enable / Disable Auto Turn-On Timer for CH1
Use this parameter to set the time after which you want the device connected to the left (CH1) outlet to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 1 | timer enabled |
11 - Set Auto Turn-On Timer for CH1
Use this parameter to set the time after which you want the device connected to the left (CH1) outlet to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 1 byte
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | minutes |
12 - Enable / Disable Auto Turn-Off Timer for CH2
Use this parameter to enable or disable the auto turn-off timer for the right (CH2) outlet. If this feature is enabled, the device connected to CH2 outlet will automatic er a fixed period of time from being turned on.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 1 | timer enabled |
13 - Set Auto Turn-Off Timer for CH2
Use this parameter to set the time after which you want the device connected to the right (CH2) outlet to automatically turn off once it has been turned on. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | minutes |
14 - Enable / Disable Auto Turn-On Timer for CH2
Use this parameter to set the time after which you want the device connected to the right (CH2) outlet to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | timer disabled |
| 1 | 1 | timer disabled |
15 - Set Auto Turn-On Timer for CH2
Use this parameter to set the time after which you want the device connected to the right (CH2) outlet to automatically turn on once it has been turned off. The number entered as value corresponds to the number of minutes.Size: 4 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | minutes |
16 - Manual Control
Choose if you want to use the Z-Wave button on the Double Plug to turn the outlets on or off manually or if you want to disable this function. If this parameter is set to 0 (disabled), you will only be able to turn any of the outlets on or off remotely using your Z-Wave gateway controller.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | manual control disabled for both outlets |
| 1 | 1 | manual control enabled for both outlets |
17 - LED Indicator Mode
Choose if you want the LED indicators next to each outlet to come on when power is on or off, or if you want to disable them.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED indicator will display power consumption whenever the device is plugged in (LED stays on at all times, even if the plug is off) |
| 1 | 1 | LED indicator will display power consumption whenever the device is ON in and will turn off when the plug is OFF |
| 2 | 2 | LED indicator will display the level of power consumption for 5 seconds only whenever the device is turned on or off (LED indicator will stay off for most of the time) |
| 3 | 3 | LED indicator is OFF at all times except for inclusion, exclusion, and Z-Wave range test. |
AUTO-INCLUSION: 1. Initiate inclusion (pairing) in the app (or web interface). Not sure how? [email protected] 2. Plug the device into a grounded 120 VAC receptacle you’re planning to use it (it doesn’t need to be close Put your Z-Wave hub into inclusion mode and click the Z-Wave button 3 times quickly. Get step-by-step instructions for adding the plug to SmartThings, Vera, Wink, and other hubs at ww.support.getzooz.com MANUAL INCLUSION: Put your Z-Wave hub into inclusion mode and click the Z-Wave button 3 times quickly.
1. Bring the plug within direct range of your Z-Wave gateway (hub). 2. Put the Z-Wave hub into exclusion mode (not sure how to do that? [email protected]). 3. Press and release the Z-Wave button 3 times quickly. 4. Your hub will confirm exclusion and all of the channels (child outlets) and the main device will disappear from your controller's device list.
If your primary controller is missing or inoperable, you may need to reset the device to factory settings. To complete the reset process manually, click-click-click’n’hold the Z-Wave button for at least 10 seconds. NOTE: All previously recorded activity and custom settings EXCEPT for the kWh record will be erased from the device’s memory. Click the ZWave button 9 times quickly to reset the kWh record from the left outlet and 10 times to reset the kWh record from the right outlet.
On/off (charging/charged) monitoring from USB port.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| Meter type |
|---|
| Electric Meter Consumption |
