FIBARO
The Heat Controller
FGT-001
Thermostat - HVAC
HW: 1 FW: 4.05:01.16
ZM5101
6.71.01
0x010F (271)
0x1301 (4865)
0x1000 (4096)
ZC10-18126339
2018-12-14 23:16:50.930845
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
FIBARO Heat Controller is a Z-Wave controlled thermostatic head mounted on radiator valves. Device works also with a dedicated temperature sensor.
FIBARO Heat Controller is a remotely controlled thermostatic head to control temperature in the room. It measures the temperature and automatically adjust the heat level. It can be mounted without tools on three types of thermostatic radiator valves. It is also possible to create schedules via app to easily manage temperature throughout the week. Main features: • to be installed on three types of valves: M30 x 1.5, Danfoss RTD-N and Danfoss RA-N, • compatible with any Z-Wave or Z-Wave Plus Controller, • supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 with PRNG-based encryption, • built-in battery recharged through standard micro-USB port, • easy installation - no tools required, • can use dedicated temperature sensor, • supports heating schedules, • automatic calibration, • anti-freeze function, • decalc function, • unconstrained rotation spherical knob to set desired temperature.

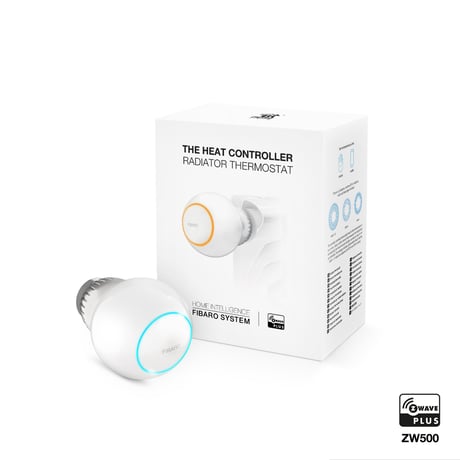

Product Picture
1 - Override Schedule duration
This parameter determines duration of Override Schedule after turning the knob while normal schedule is active (set by Schedule CC).Size: 4 bytes
Default: 240
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 10000 | (in minutes) |
2 - Additional functions
This parameter allows to enable different additional functions of the device.Size: 4 bytes
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | enable Open Window Detector |
| 2 | 2 | enable fast Open Window Detector |
| 4 | 4 | increase receiver sensitivity (shortens battery life) |
| 8 | 8 | enabled LED indications when controlling remotely |
| 16 | 16 | protect from setting Full ON and Full OFF mode by turning the knob manually |
3 - Additional functions status (READ-ONLY)
This parameter allows to check statuses of different additional functions.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | optional temperature sensor connected and operational |
| 2 | 2 | open window detected |
To add the device to the Z-Wave network: 1. Make sure the device is within the direct range of your Z-Wave controller. 2. Set the main controller in (security/non-security) add mode. 3. Use the included key to quickly triple click the button on the thermostatic head. 4. The LED ring will start blinking white. 5. If you are adding in S2 authenticated mode, type in the device pin code (underlined part of the public key on the label). 6. Wait for the adding process to end. 7. Successful adding will be confirmed by the Z-Wave controller.
To remove the device from the Z-Wave network: 1. Make sure the device is within the direct range of your Z-Wave controller. 2. Set the main controller into remove mode. 3. Use the included key to quickly triple click the button on the thermostatic head. 4. The LED ring will start blinking white. 5. Wait for the removing process to end. 6. Successful removing will be confirmed by the Z-Wave controller.
FIBARO Heat Controller is a FLiRS device. The FLiRS device alternates between sleep mode and a partially awake mode in which it is listening beam signal. When device receives this beam, it immediately fully wakes up and then communicates with the controller or other Z-Wave device.
Please use this procedure only when the network primary controller is missing or otherwise inoperable. Reset procedure allows to restore the device back to its factory settings, which means all information about the network and user configuration will be deleted. To perform factory reset: 1. Use the included key to press and hold the button. 2. Release the button when you see yellow LED colour. 3. Click the button to confirm the selection. 4. After finishing resetting the device will be put in Standby Mode. Click the button to activate it again.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
