Vision
Arrival Sensor
ZA1501JP-5
Notification Sensor
HW: 5 FW: 25.01
ZM5101
6.81.03
0x0109 (265)
0x202A (8234)
0x2A01 (10753)
ZC10-19016364
2019-01-23 18:54:37.932472
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The Arrival Sensor assigns everyone an unique ID then the user could take care of the family to send any instant notification when they are coming home or leaving home, also the user could interact some specific scenarios with specific persons
The Arrival Sensor assigns everyone an unique ID then the user could take care of the family to send any instant notification when they are coming home or leaving home, also the user could interact some specific scenarios with specific persons. When the device is secure included into Z-Wave network, above communication will be encrypted. ARRIVAL SENSOR supports SECURITY S0 / SECURITY S2 UNAUTHENTICATED / SECURITY S2 AUTHENTICATED.

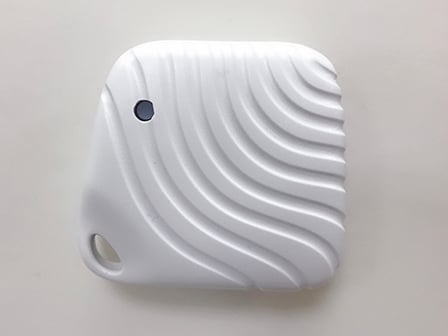

Product Picture
1 - The Synchronic Interval Time
Define the synchronic interval time between arrival sensor and the gateway, the basic interval time is 16 seconds and the default value is "2" (32seconds=2x16seconds) 1 ~ 255 (unsigned decimal) Seconds (default: 2 (=16seconds x 2))Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 255 | from 16 seconds to 4080 seconds |
For “Inclusion” in (adding to) a network: Put the Z-Wave™ Interface Controller into “inclusion” mode, and following its instruction to add the arrival sensor to your controller. To get in the “inclusion” mode, press the Program Switch of arrival sensor for sending the NIF. After sending NIF, Z-Wave will send the auto inclusion; otherwise, arrival sensor will go to sleep after 30 seconds.
For “Exclusion” from (removing from) a network: Put the Z-Wave™ Interface Controller into “exclusion” mode, and following its instruction to delete the arrival sensor from your controller. Press the Program Switch of arrival sensor to be excluded. Note: All user and network settings will be cleared and the device reset to factory defaults when the device is excluded.
Wake Up Notification: Press the program switch, arrival sensor will be “Wake Up Mode” for receiving all the command class from controller. The arrival sensor will go to sleep mode or it will wait 10 seconds then go sleep mode. It will proceed all the commands after sending the “Wake Up Notification”
Factory Default Reset: Long press the program switch up to 10 seconds to send the “Device Reset Locally Notification” command and reset to the factory default. (Remark: This is to be used only in the case of primary controller being inoperable or otherwise unavailable.)
Auto Wake Up, Battery Capacity Detection, Explorer Frame & OTA
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Sensor type |
|---|
| Acceleration X-Axis |
| Acceleration Y-Axis |
| Acceleration Z-Axis |
