Yasuda Co,. Ltd
Smart Ashley+Z
YDL110DZ
Door Lock - Keypad
HW: 255 FW: 4.01:04.02
ZM5101
6.81.01
0x0418 (1048)
0x0003 (3)
0x0001 (1)
ZC10-19016365
2019-01-30 21:26:44.903641
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
It is a Smart Lock which can be used with Z-Wave and Bluetooth.
YDL110DZ Smart Lock is a device that can control the door lock and check the status from outside as well as near by using Bluetooth or Gateway. In addition, this product can communicate with Z-Wave Plus products in compliance with the Z-Wave Plus communication security standard.

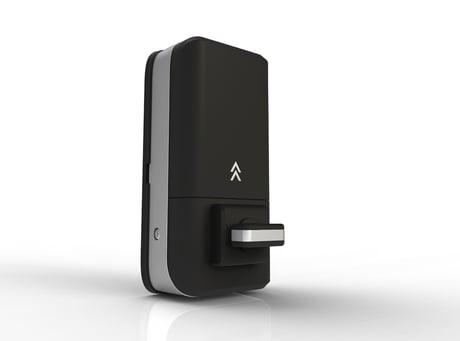

Product Picture
Inclusion: 1. Insert the battery. 2. The handle is unhooked. 3. Press and hold the 'B' Tact switch for about 3 seconds. 4. Door lock enters Inclusion Mode.
Exclusion: 1. Insert the battery. 2. The handle is unhooked. 3. Press and hold the 'B' Tact switch for about 3 seconds. 4. (If door lock is in inclusion) Door lock enters exclusion mode.
1. To lock / unlock the handle by manually moving it. 2. Receiving Z-Wave Command.
1. Insert the battery. 2. The handle is unhooked. 3. Press and hold the 'A' + 'B' Tact switch for about 5 seconds. 4. Door lock is factory reset. * Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
