Hogar Controls
1 Touch Panel Dimmer
HTP-1SD
Light Dimmer Switch
HW: 255 FW: 2.50
ZM5202
6.81.01
0x0293 (659)
0x0003 (3)
0x4410 (17424)
ZC10-19046452
2019-04-27 18:30:45.033689
N/A
Enhanced 232 Slave
Always On Slave
The Hogar 1 Touch Panel Dimmer is perfect for anywhere you would like to switch the light on or off with the added advantage of pressing it for longer and dimming the light from 100 % to 10% or vice versa. The smart touch dimmer is compatible with all types of incandescent bulbs and dimmable LEDs.
Featuring a stunning glass face with an advanced capacitive touch sensor, all you need to do is just use a finger for full dimming control and for turning your lights on and off. Tap the back-lit touch button on the panel to switch on or off, and long-press the same button to smoothly dim the lights. This 1 Touch Panel Dimmer ensures that the brightness intensity set is achieved without any loss. The Hogar 1 Touch Panel Dimmer can operate either independently or as a part of the Hogar smart home automation system, and even with any other certified Z-Wave home automation system. It is an extremely easy-to-use panel that installs in a standard US 2 gang box. Its operating capabilities include a bi-stable mode, a relay mode or touch pulse mode for scene control with a maximum load current of 3 amp. It communicates with the Hogar smart home automation system using the Z-Wave wireless communication protocol.

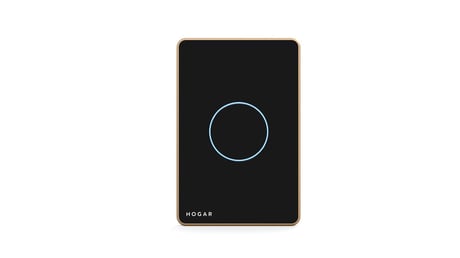

Product Picture
1. Put the controller into INCLUSION mode. Follow the instructions provided by the controller manufacturer. 2. Touch and hold at the centre of touch area for more than 5 seconds. Indication LEDs blinks blue. At this point release the key, the touch dimmer switch start inclusion process.
1. Put the controller into EXCLUSION mode. Follow the instructions provided by the controller manufacturer. 2. Touch and hold at the centre of touch area for more than 5 seconds. Indication LEDs blinks blue. At this point release the key, the touch dimmer switch start exclusion process.
1. Press the config button 5 time, Indication LEDs lights will blinks red in color, touch dimmer switch will start local reset. Touch dimmer switch will erase network inclusion state after local reset. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
