Ring
Ring Panic Button
4AP1S90EN0
Notification Sensor
HW: 1 FW: 10.08
ZM5101
6.82.03
0x0346 (838)
0x0801 (2049)
0x0101 (257)
ZC10-19036387
2019-03-05 00:17:50.115861
N/A
Enhanced Slave
Reporting Sleeping Slave
Yes
Ring Panic Button is an instant trigger for Ring Alarm.
Ring Panic Button is an instant trigger for Ring Alarm. In case of emergency, Panic Button can be used to signal your Ring Alarm Base Station to sound its siren. If you’re subscribed to Ring Protect Plus, our 24/7 professional monitoring center is notified and emergency responders can be dispatched.

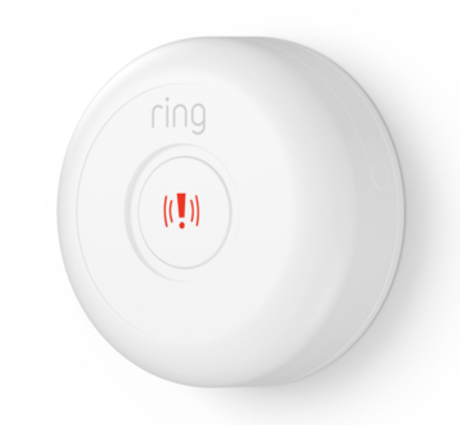

Product Picture
1 - Heartbeats
Heartbeats: This parameter is the number seconds between heartbeats. Heartbeats are automatic battery reports on a timer after the last event.Size: 2 bytes
Default: 4200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 4200 | Heartbeats |
2 - One shot timer
One shot timer: Writing to this parameter prompts the sensor to send a wakeup notification one time after this parameter's number of seconds. After which it is reset back to 0.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | One shot timer |
3 - Number of application level retries
Number of application level retries of messages either not ACKed or messages encapsulated via supervision get that did not receive a reportSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | Number of application level retries |
4 - Application Level Retry Base Wait Time Period
Application Level Retry Base Wait Time Period: The number base seconds used in the calculation for sleeping between retry messagesSize: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | Application Level Retry Base Wait Time Period |
5 - Wait time for a Supervisory Report response
The number of milliseconds waiting for a Supervisory Report response to a Supervisory Get encapsulated command from the sensor.Size: 2 bytes
Default: 1500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 5000 | Wait time for a Supervisory Report response |
6 - Button hold-time
Button hold-time configuration in seconds.Size: 1 byte
Default: 6
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 20 | Button hold-time configuration in seconds |
Inclusion Instructions - - Begin the setup process near your Ring Alarm Base Station. - In the Ring app, tap Set Up a Device - Choose Security Devices, then Base Station, then Ring Panic Button, and tap Add Device - To complete the setup process, follow the in-app instructions. - When prompted, scan the QR Code or enter the PIN. (The QR Code and PIN are on the back of your Panic Button and in the product packaging.) - This begins the pairing process. - When prompted, pull out the clear tab. - This turns the Panic Button on. Your Base Station then finds it automatically. - As the Panic Button pairs to your Base Station, its LED ring will blink. Once it pairs, the LED glows blue for three seconds. Note: If the Panic Button does not pair successfully, the LED ring glows red. To try the pairing process again, remove and reinstall the battery inside the Panic Button.
Exclusion Instructions - - Open the side menu in the Ring app and tap Devices, then Base Station. Select your Panic Button and tap the gear-shaped icon. Then tap Remove Device. - When prompted, open the Panic Button and remove and reinstall the battery to complete the removal.
Open top cover to wakeup device
Factory Reset Instructions - - Press and hold the Setup button for 10 seconds. When the LED ring stops blinking, your Panic Button has reset. Note: - A factory reset disconnects the Panic Button from your Ring Alarm. To begin using the Panic Button again, repeat the setup process in the Ring app. - Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
