Aeotec
Range Extender 6
ZW117-H07
Repeater
HW: 117 FW: 1.05
ZM5101
6.51.10
0x0086 (134)
0x1C04 (7172)
0x0075 (117)
ZC10-19026376
2019-02-11 23:02:22.597344
N/A
Enhanced 232 Slave
Always On Slave
Range Extender 6 is a Z-Wave repeater.
Range Extender is a Z-Wave repeater device based on Z-Wave enhanced 232 slave library V6.51.10. It can extend the range of the communication between Z-Wave products and assist other devices to reach each other in your Z-Wave network. It can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. It is a security Z-Wave plus device, so a security enabled controller is needed for take full advantage of all functionally for the Range Extender. It also supports the Over The Air (OTA) feature for the product’s firmware upgrade.

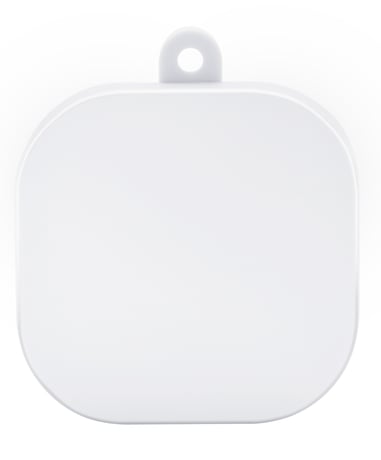

Product Picture
82 - Set the default status of the LED when the Range Extender relays Z-Wave message
Set the default status of the LED when the Range Extender relays Z-Wave messageSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The Green LED will remain ON for 2 seconds. |
| 1 | 1 | The LED remains OFF state. |
200 - Partner ID
Set the partner ID of product.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Aeon Labs standard product |
| 1 | 1 | Other partners. |
252 - Enable/disable Lock Configuration
Enable/disable to lock Configuration parameters.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
254 - Device tag
Set a device tag for your Range Extender.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | The available value range is 1 to 32767. |
255 - Reset the device
Reset the device to factory default.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reset all configuration parameters to factory default settings |
| 1431655765 | 1431655765 | Reset the device to factory default. |
Turn the primary controller of Z-Wave network into inclusion mode, press the Z-Wave Button on Range Extender 6.
Turn the primary controller of Z-Wave network into exclusion mode, press the Z-Wave Button on Range Extender 6.
Press and hold the Z-Wave Button for 20 seconds and then release it. Use this procedure only in the event that your primary network controller is missing or inoperable.
Support ""Over the Air Firmware Updating"" and “Z-Wave Security”.
