Yale
Digital Door Lock
YDM3109+
Door Lock - Keypad
HW: 32 FW: 33.17:13.16
ZM5202
6.71.03
0x0129 (297)
0xC600 (50688)
0x0300 (768)
ZC10-19036386
2019-01-30 21:23:53.141882
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Digital Doorlock with RF connection built in and optional Z-Wave connection available
Digital Doorlock by Yale Manufacturer: iRevo, ASSA ABLOY Combining high security with cutting edge technology, the Yale 3109+ Digital Door Lock is a high quality Security solution for the contemporary home. Suitable for both timber and aluminium applications, the Yale 3109+ Digital Door Lock can be used with PIN code, proximity cards or key. There are also a range of accessories available for easy, keyfree access to your home. Touch Screen Proximity Card Digital Lock (Mortise Lock) 1. Access solutions - Cards : 4 (Up to 40 Cards) - Pin code : 4-10 digits - Mechanical keys : 2 2. Product Key Features - Smart Touchpad - Various Access - Operation Status Notification - Mechanical Key Override - Missing Card Key Invalidation - Automatic Locking - Anti-Panic Egress with Safe Handle - Alarm (Break / Damage) - Low Battery Alarm and Emergency Power Supply Terminal 3. Technical - Front Body : 27(D) X 68.8(W) X 306.6(H) mm - Back Body : 377(D) X 72.8(W) X 306.6(H) mm

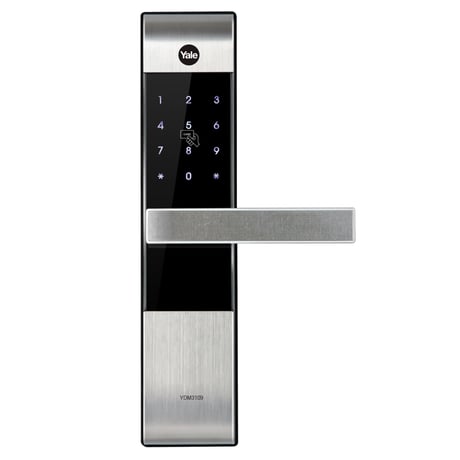

Product Picture
To include: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'I' button [Registration] from the inside of battery cover. 4. Press 9,#,1,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play then press 'I' button
To exclude: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'I' button [Registration] from the inside of battery cover. 4. Press 9,#,3,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play then press 'I' button
The lock is always in 'Wake up status'. However, touch with palm to begin and end action.
To reset to factory defaults: ※ Use this procedure only in the event that the network primary controller is missing or otherwise inoperable. (User code or master code remains the same. Only network settings reset to factory defaults.) 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'I' button [Registration] from the inside of battery cover. 4. Press 9,#,9,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play then press 'I' button
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Power Management | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
