myTEM SmartHome
Radio RGBW
MTRGB-100-WL
Light Dimmer Switch
HW: 1 FW: 1.00
ZM5101
6.71.03
0x034E (846)
0x0001 (1)
0x0005 (5)
ZC10-19046412
2019-03-28 19:52:05.661871
N/A
Enhanced 232 Slave
Always On Slave
The myTEM Radio RGBW module MTRGB-100-WL is a module for controlling and dimming 4-colored LED strips.
The myTEM Radio RGBW module MTRGB-100-WL is a module for controlling and dimming 4-colored LED strips. In addition to the red-green-blue-white color control, a warm white setting can be realized if the LED strip supports this function.

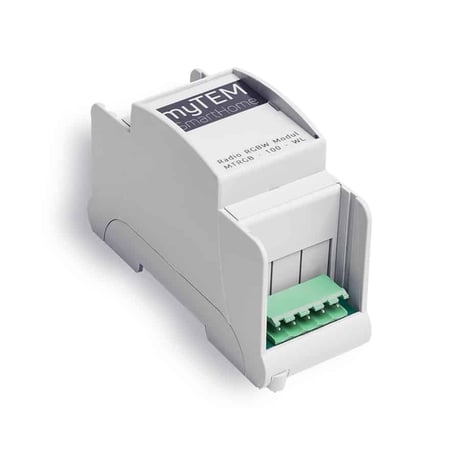

Product Picture
1 - Heartbeat Notification Rate
If the notification System Heartbeat is on, a notification report System Heartbeat is sent periodically every 60 minutes (default value).Size: 2 bytes
Default: 60
Minimum: 1
Maximum: 1440
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1440 | Heartbeat Notification Rate in minutes |
Inclusion (Add) To include (Add) the device to a Z-Wave network, press the button four times in quick succession. When the device is in Add mode, the LED flashes green. When finished, the new status is: Add: The LED lights up briefly in green Remove: The LED lights up briefly in red
Exclusion (Remove) To exclude (Remove) the device from a Z-Wave network, press the button four times in quick succession. When the device is in Add mode, the LED flashes green. When finished, the new status is: Add: The LED lights up briefly in green Remove: The LED lights up briefly in red
Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| System | (Refer to parameters): State idle |
