COMMAX CO.,LTD.
COMMAX Smart Lock
CDL-107U
Door Lock - Keypad
HW: 1 FW: 1.00:01.00
ZM5101
6.71.03
0x0299 (665)
0x0001 (1)
0x0001 (1)
ZC10-19036406
2019-03-12 22:50:38.930348
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
The CDL-107U is a door lock that can be conveniently used with Z-Wave and Bluetooth.
The CDL-107U is a door lock that can be conveniently used with Z-Wave and Bluetooth. You can control the door lock directly from a phone via the Bluetooth function in close range, check the status of the door lock on the outside by connection to the Z-Wave hub as well as control door locks and check status via Google Home or Amazon Alexa.

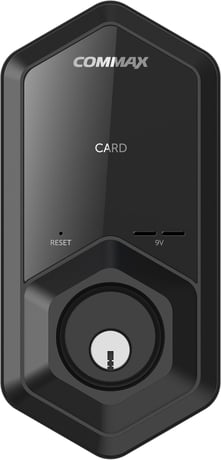

Product Picture
* Please proceed with the door lock open * To add or include the CDL-107U into a Z-Wave network 1. Set the controller in inclusion mode. 2. Press the [R] button for 6 seconds. 3. Press the [1][4][7] button after pressing the [R] button.
* Please proceed with the door lock open * To remove or exclude the CDL-107U into a Z-Wave network 1. Set the controller in exclusion mode. 2. Press the [R] button for 6 seconds. 3. Press the [3][6][9] button after pressing the [R] button.
* Wake up 1. Touch the touch panel
* To Factory Reset Please use this procedure only when the primary controller is missing or otherwise inoperable. 1. Press the [R] button for 9 seconds 2. Press the [1][2][3][6][5][4][7] button after pressing the [R] button
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
