EVA LOGIK
In-Wall Smart Outlet
ZW32
On/Off Power Switch
HW: 1 FW: 20.15
ZM5202
6.51.06
0x0312 (786)
0xA000 (40960)
0xA007 (40967)
ZC10-19026385
2019-02-28 00:24:39.663549
N/A
Routing Slave
Always On Slave
Two In-wall sockets controlled by Z-Wave controller and can be configured in Z-Wave sensor network.
Two In-wall sockets controlled by Z-Wave controller and can be configured in Z-Wave sensor network, if Z-Wave certified controller features remote access, you can control two outlets from your mobile phone each.

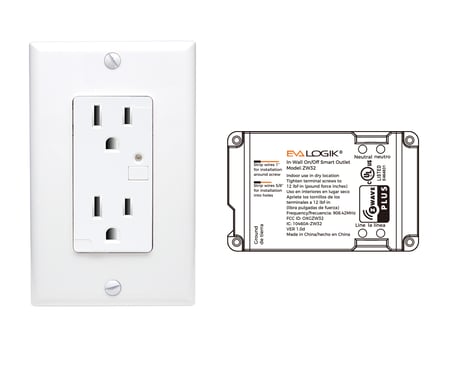

Product Picture
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press up and release the toggle to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance. The device is associated in the same group when it included in setting process. Now you can control your Z-Wave device according to groups, scenes, schedules and automation programmed.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press up and release the toggle to exclude it from the network.
1. Triple press the front button and hold the upper paddle for at least 10 seconds. 2. Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
