LinkedGO
Ultimate Thermostat
ST1000EZ0
Thermostat - HVAC
HW: 255 FW: 4.01:03.69
ZM5101
6.81.02
0x0391 (913)
0x0003 (3)
0x0024 (36)
ZC10-19046458
2019-04-30 00:59:46.936286
N/A
Enhanced 232 Slave
Always On Slave
LinkedGo thermostat is work with radiator, floor heating, and fan coil. It has dry contact and RS485 connect to heat pump or gas boiler for linkage control.
LinkedGo's Ultimate Thermostat has built-in temperature and humidity sensor to control room environment more comfortable. And it has 3.5 inch TFT display, resolution is 320*480. User interface and human-computer interaction is very friendly. We also have fashionable appearance, the depth only 0.39 inch (10mm).

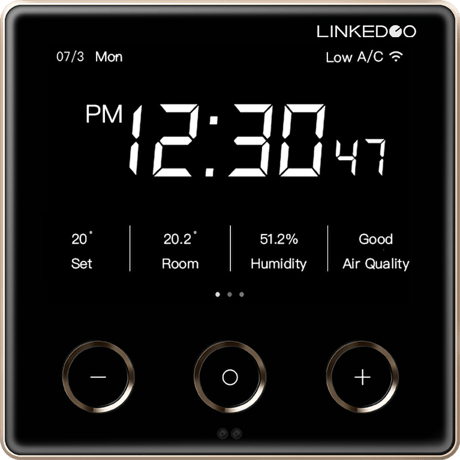

Product Picture
4 - Custom mode
0-standard modeSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Sleeping night mode |
| 2 | 3 | Sleeping noon mode |
5 - Heating method
0-Heating by fan coil onlySize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Floor heating only |
| 1 | 2 | Fan coil and floor heating both |
6 - Master and slave setting
Slave-it can be switched on/off by Master unit.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Master |
9 - Summer temperature difference calibration
Value range:-50~50(-50 means △T=-5℃) Precision:1 Calibration for the temp.sensor in summerSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | -10 | The temperature probe should be calibrated -1 degree C. |
10 - Algorithm enable
DisableSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Enable |
17 - Theme style
0-classicSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | weather |
| 1 | 2 | Digital clock |
| 2 | 3 | Rome clock |
| 3 | 4 | Cartoon clock |
20 - Min. temperature limit
Value range:50~350(50 means for 5℃, 350 means 35℃) Precision:1Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 50 | 160 | The minimum setting temperature become 16 degree C |
21 - Max. temperature limit
Value range:50~350(50 means for 5℃, 350 means 35℃) Precision:1Size: 2 bytes
Default: 350
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 350 | 280 | The maximum setting temperature become 28 degree C |
25 - Winter temperature difference calibration
Value range:-50~50(-50 means △T=-50℃) Precision:1 Calibration for the temp.sensor in winterSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | The temperature probe should be calibrated +1 degree C. |
82 - Outdoor temperature
Value range:-50℃ ~ 50℃ Precision:1℃ Display outdoor temperature on screenSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 15 | Outdoor temperature is 15 degree C |
84 - Local weather
0-sunny Show local weather on the displaySize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | windy |
| 1 | 2 | snow |
| 2 | 3 | rain |
| 3 | 4 | cloudy |
| 4 | 5 | partly cloudy |
85 - PM2.5 level
ExcellentSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Good |
| 1 | 2 | Light pollution |
| 2 | 3 | Heavy pollution |
Hold the ""+"" button 5 seconds, until the display show ""Add"".
Hold the ""-"" button 5 seconds, until the display show ""Remove"".
Go to the third page, find ""About"", select ""Reset all settings"", and confirm. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Support different style background theme. Go to ""Theme"" choose your favourite one.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Clock | (Refer to parameters): State idle |
| Weather Alarm |
|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
| Dew Point |
| Time |
