Simon
S100 Rocker for Dimmer (China)
10003020-13X
Light Dimmer Switch
HW: 1 FW: 4.24:78.59:70.48
ZM5202
6.51.07
0x0267 (615)
0x0007 (7)
0x0000 (0)
ZC10-19046438
2019-04-25 23:58:48.66665
N/A
Enhanced Slave
Always On Slave
Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes. The touch surface offers an slider area in order to adjust the light level showing the dimming intensit y with 7 LEDs .
Simon iO Dimmer is integrated by Electronic Dimmer and a Rocker, that provides Z-Wave communication attributes. The touch surface offers an slider area in order to adjust the light level showing the dimming intensit y with 7 LEDs . Simon iO Dimmer is ready to operate with Z-Wave controllers and configured to be managed by Simon100 IO APP using the HUB plug IO for getting a better user experience.

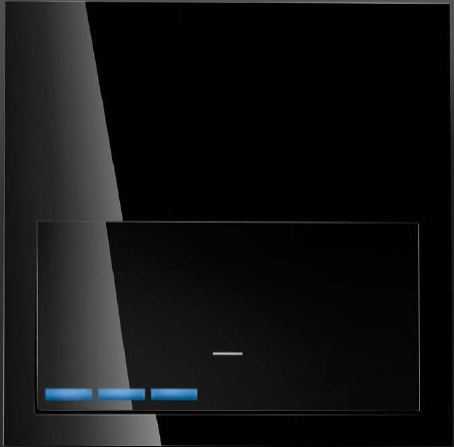

Product Picture
1 - Association LED
Allows to turn ON or OFF the central LEDSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns the LED OFF |
| 1 | 255 | Turns the central LED ON |
4 - Set time
Sets the time it takes to turn on the light (ramp time)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution |
5 - Fade time
Sets the time it takes to turn off the light (ramp time)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution |
6 - Min dimming value
Sets the minimun dimming valueSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 98 | Once the devices gets a value through Z-Wave it Scales the value read according this minimum margin |
7 - Max dimming value
Sets the maximum dimming valueSize: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 99 | Once the devices gets a value through Z-Wave it Scales the value read according this maximum margin |
8 - Last on value
Returns or sets the last non zero dimming value. In case of Set the device turns ON the load.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 127 | returns or sets the last non zero dimming value. In case of Set the device turns ON the load |
9 - Calibration
Performs a device calibrationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Device performs calibration using Trailing and leading Edge and decides which one is better |
| 2 | 2 | Device performs calibration using Trailing and leading Edge and decides which one is better |
| 3 | 3 | Device is calibrated using Leading Edge |
10 - Delay ON
Sets the delay time to turn on the lightSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution |
11 - Activation time
Sets the time the light stays on.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution |
12 - Behavior of LED in repose
Sets the central led ilumination when the key is in repose stateSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED OFF |
| 1 | 255 | Central LED on at 20% of maximum level |
13 - Lock input
Lock or Unlock the direct control of the loadSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Unlock the direct control of load |
| 1 | 255 | Lock the direct control of load |
15 - Reset default
Resets groups, Z-Wave status, and some or all configurations depending on the configuration value (write only)Size: 1 byte
Default: 39015
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 39015 | 39015 | Parameters, Groups, and Z-Wave status are restored to default. |
| 17170 | 17170 | Parameters, Groups, and Z-Wave status are restored to default. |
16 - Delay OFF
Sets the delay time to turn off the lightSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly. Disable timming |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 254 | 1 second (0x80) to 127 minutes (0xFE) in 1 minute resolution |
19 - Press action
Controls the behavior of the product when the key is pressedSize: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When short press, the device toggles the load. The Slider does not work. |
| 1 | 1 | When short press, the device turns ON the load. The Slider does not work |
| 2 | 2 | When short press, the device turns OFF the load. The Slider does not works |
| 4 | 4 | When short press, the device turns ON the load. When hold press from 2seconds to 10seconds device turns OFF the load. The Slider does not works with this configuration, the device will not send the Node Info neither Show the LEDs feedback with this press action. The Slider does not work |
| 5 | 5 | When short press, the device toggles the load. The Slider dims the load when it is ON |
20 - Identify
Allows to identify a product using its central LED (write only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | the central LED blinks for 5 seconds in order to identify the device |
21 - State of charge
Reports the state of the charge (read only)Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 45056 | 45056 | Load is OFF |
| 45057 | 45057 | Load is ON |
| 45312 | 45411 | Last active dimming value |
23 - Calibration required
Reports if calibration is required or not (read only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Calibration is not required |
| 255 | 255 | It is necessary to calibrate the dimmer to work properly |
27 - Lock long press
Locks or unlocks the long press on the keySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Long press works as described previously |
| 255 | 255 | Long press of from 2 seconds to 10 seconds does not send a the Node Info. Long press of t>30s Parameters, except Lock long press are restored to default and device send a Node Info. |
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<10sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
When the pushbutton is released after a press of (10sec<T<15sec) the device will perform an automatic callibration of times of Up and Down. All LEDs will Blink with 0,3 sec period to inform that callibration is going to be performed. After release and during the callibration All LEDs will Blink with 0,3 sec period to inform that callibration process is being performed. When the pushbutton is released after a press of (15sec<T<30sec) the device will start a min adjust process, where user can adjust the minimum regulation value from 1% up to 50%) of dimmer capability.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
