CLEVERIO
Smart Metering Plug
51110.0
On/Off Power Switch
HW: 255 FW: 3.01
ZM5202
6.71.03
0x041C (1052)
0x8006 (32774)
0x1000 (4096)
ZC10-19046437
2019-04-25 23:56:35.779013
N/A
Routing Slave
Always On Slave
Remote controlled socket with energy meter can be used with lamps, fans and other devices. Uses Z-Wave with S2 Security

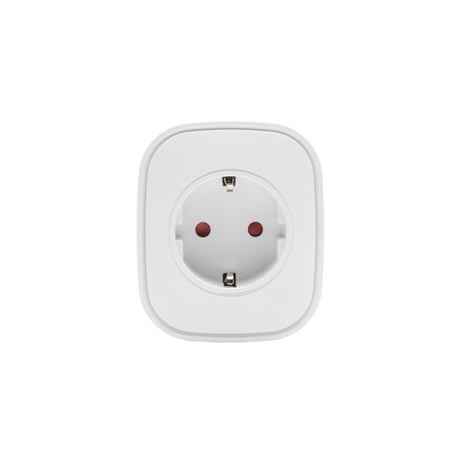

Product Picture
- Click [Add] icon in Z-Wave Controller. - Press the SW_Button 3 times within 1.5s, Blue LED is Blinking 3 times within 1 second. - If add Process is successful, Blue LED will turn off.
- Click [Remove] icon in Z-Wave Controller. - Press the SW_Button 3 times within 1.5s - If remove Process is successful, blue LED is Blinking 6 times, then turn off.
- Long press SW_Button at least 10 seconds. - Device Reset Locally notification is Transmitted. -Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
