Aeotec
NanoMote Quad
ZWA003-F
Wall Controller
HW: 1 FW: 1.02
ZM5101
6.71.01
0x0371 (881)
0x0902 (2306)
0x0003 (3)
ZC10-19036409
2019-03-28 19:53:22.128855
N/A
Enhanced 232 Slave
Portable Slave
Yes
NanoMote Quad is a wireless, portable and rechargeable product.
NanoMote Quad is a wireless, portable and rechargeable product. On one hand, it can be used to control separate Z-Wave device, such as a smart Plug, smart Dimmer, Bulb, etc. through Z-Wave Gateway. On the other hand, it can also be used to program a scene by Gateway app which groups many smart nodes such as Plugs, Bulbs, and Siren... The scene may refer to sleep scene, movie scene and entertainment scene, etc. as you created.

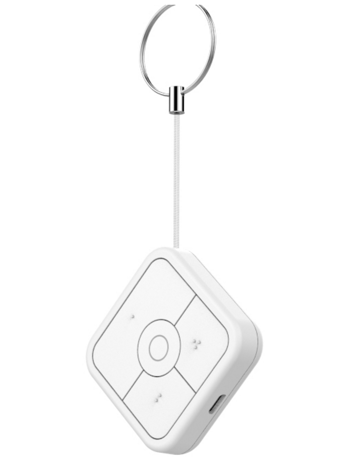

Product Picture
32 - Level of low battery
Level of low batterySize: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 50 | Available settings 10% to 50% |
41 - Enable send central scene notification
Enable send central scene notification.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
42 - Setting the duration value of the command switch multilevel
Setting the duration value of the command switch multilevel.Size: 1 byte
Default: -1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | Available settings -128 to 127 |
43 - Enable/disable the buzzer alarm when battery is running low.
Enable/disable the buzzer alarm when battery is running low.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable. |
| 1 | 1 | Enable. |
Pressing and holding button for 5 seconds and then release so the NanoMote Quad will wake up itself and send wake-up notification out to Z-Wave Controller. After that, it can be operated to update parameters, OTA, and detect battery level etc.
Press and hold the button for 20 seconds, the LED light will be solid on in red. Then release the button, the LED light will be stay in red for 2 seconds, during this 2 seconds, please click the button once, it will start to restore factory default. At the same time, the LED light will be solid on in colorful for 15 seconds. Then Sending Device Reset locally notification to the controller. NOTE: Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
NanoMote Quad can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. 1. Insert the LIR2450 battery. 2. Place the device within the direct range of your Z-Wave controller. 3. Set the main controller’s adding mode (see the controller’s manual). 4. Double click the button quickly, the LED indicator should blink fast. 5. Wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.
To remove the NanoMote Quad from the Z-Wave network: 1.Insert the LIR2450 battery. 2.Place the device within the direct range of your Z-Wave controller. 3.Set the main controller remove mode (see the controller’s manual). 4.Double click the button quickly, the LED indicator should blink fast. 5.Wait for the removing process to end. 6.Successful adding will be confirmed by the Z-Wave controller’s message.
