heatapp!
heatapp! repeater S2
9601921000.0
Repeater
HW: 0 FW: 1.05
ZM5202
6.81.04
0x017c (380)
0x0001 (1)
0x000a (10)
ZC10-19056509
2019-04-02 21:56:14.836687
N/A
Enhanced 232 Slave
Always On Slave
heatapp! repeaterS2 is a USB powered Z-Wave repeater and part of the heatapp! system. It is used to enhance the network range of the Z-Wave system by repeating the data from other devices in the network wirelessly to the destination device.
heatapp! repeaterS2 is a USB powered Z-Wave repeater and part of the heatapp! system. It is used to enhance the network range of the Z-Wave system by repeating the data from other devices in the network wirelessly to the destination device. Wireless transmission takes place via the Z-wave protocol. The device is wall-mounted. A detailed description of the heatapp! system is available in the operating instructions at www.heatapp.de This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

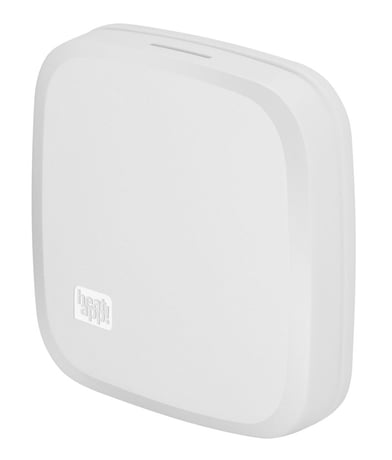

Product Picture
To add (inclusion) the device press and hold the button for 3-8 seconds. When pressing the button, the led will flash short and after 3 seconds when the led has a steady light release the button.
To remove (exclusion) the device press and hold the button for 3-8 seconds. When pressing the button, the led will flash short and after 3 seconds when the led has a steady light release the button.
Press the button for more than 10 seconds to reset the device to factory default settings. The led will be released after the device reset to factory defaults has been performed. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| System | (Refer to parameters): State idle |
