Simon
S100 IO Socket 10A (China)
10002038-13X
On/Off Power Switch
HW: 1 FW: 4.24:68.49
ZM5202
6.51.07
0x0267 (615)
0x0009 (9)
0x0000 (0)
ZC10-19076674
2019-07-16 21:53:41.419405
N/A
Enhanced Slave
Always On Slave
Simon Socket iO is a socket that allows increase the installation functions and features.
Socket iO is ready to operate with Z-Wave controllers and configured to be managed by Simon100 iO APP using the HUB plug iO for getting a better user experience. allowing the control of the socket and LEDs integrated. Available colors Black and White. visit http://www.simon.es/simon100/ to learn more about Simon 100 iO.

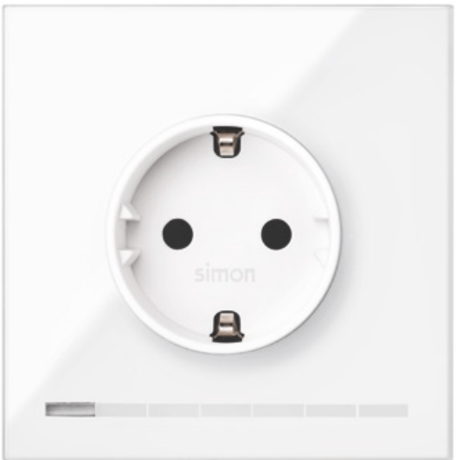

Product Picture
1 - Central LED
Allows to turn ON or OFF the central LEDSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turns the LED OFF |
| 255 | 255 | Turns the LED ON |
2 - Custom Consumption Limit
Allows to set a power consumption limit in WattsSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables custom consumption limit |
| 1 | 65535 | Sets the power in Watts that is supported |
3 - Beacon
Enables or disables the beacon functionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables beacon function |
| 1 | 99 | Set the intensity of the beacon LEDs |
10 - On Timed
Sets the delay time to turn on the deviceSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables timing |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 255 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
11 - OFF Timed
Sets the time the device stays onSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables timing |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 255 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
13 - Load lock
Locks or Unlocks the direct control of the loadSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Enables the push button to control the load |
| 255 | 255 | Disables the action of the push button of the load |
15 - Reset default
Resets groups, Z-Wave status, and some or all configurations depending on the configuration value (write only)Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 39015 | 39015 | Parameters, Groups, and Z-Wave status are restored to default. |
| 17170 | 17170 | Parameters, except Lock long press are restored to default |
16 - Delayed OFF
Sets the delay time to turn off the deviceSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disables timing |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution |
| 128 | 255 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution |
17 - Post Reset State
Controls the state of the load after a reset actionSize: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Restart with the relay disabled. |
| 255 | 255 | Recover the previous state. |
19 - Action when pressing
Controls the behavior of the product when the key is pressedSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When short press, device toggles the load |
| 1 | 1 | When short press, device turns ON the load. When hold press from 2 seconds to 10 seconds device turns OFF the load. The Slider does not works.With this configuration, the device will not send the Node Info neither Show the LEDs feedback with this press action |
| 2 | 2 | When short press, device turns OFF the load |
20 - Identify
Allows to identify a product using its central LED (write only)Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 255 | 255 | the central LED blinks for 5 seconds in order to identify the device |
21 - Charge status
Reports the state of the charge (read only)Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 45056 | 45056 | Load is OFF |
| 45057 | 45057 | Load is ON |
| 45312 | 45312 | Load is OFF |
| 45567 | 45567 | Load is ON |
27 - Long key press
Locks or unlocks the long press on the keySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Long press works as described previously |
| 255 | 255 | Long press from 2 seconds to 30 seconds does not send a Node info. With a long press above 30 seconds, all parameters except Lock long press are restored to default and device sends a Node info |
When the pushbutton is released after a press of (2sec<T<30sec) the device will send a NIF to include from Z-Wave network or perform an association with other Z-Wave device. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Central LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (2sec<T<30sec) the device will send a NIF to exclude from Z-Wave network or perform an association with other Z-Wave device. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton. This process does not perform a default reset of configurations. Main LED will Blink with 0,3 sec period to inform that NIF can be send after release of pushbutton.
When the pushbutton is released after a press of (30sec<T) the device will perform a factory default values operation, excluding it from network and reset the configuration parameters. Main LED will perform 1 Blink with 5 sec. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
