myTEM SmartHome
Radio Switch Dual
MTSWI-100-WL
On/Off Power Switch
HW: 1 FW: 1.00
ZM5101
6.71.03
0x034E (846)
0x0001 (1)
0x0007 (7)
ZC10-19086712
2019-04-25 16:34:01.659216
N/A
Enhanced 232 Slave
Always On Slave
The myTEM Radio Switch Dual is a universal, Z-Wave compatible wall or ceiling switch (ON/OFF) and is used to control two electrical devices. The power and energy con-sumption of the connected devices are measured. Two additional digital inputs and the programmable be-havior to the wireless commands allow flexible use in the house.
The myTEM Radio Switch Dual is a universal, Z-Wave compatible wall or ceiling switch (ON/OFF) and is used to control two electrical devices (e.g. roller shutters, window blinds, lamps, fans, etc.). The power and energy con-sumption of the connected devices are measured. Two additional digital inputs and the programmable be-havior to the wireless commands allow flexible use in the house. At the same time, the device also serves as a Z-Wave repeater to improve range and stability of the Z-Wave network. The device is intended for installation in a flush-mounted box, e.g. behind light switches or sockets.

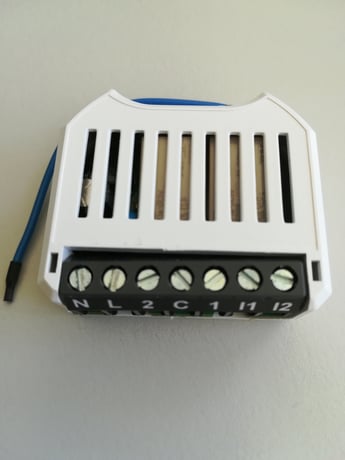

Product Picture
1 - Heartbeat rate
If the notification System Heartbeat is on, a notification report System Heartbeat is sent periodically every 60 minutes (default value).Size: 2 bytes
Default: 60
Minimum: 1
Maximum: 1440
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1440 | Heartbeat rate [min] |
2 - Main Voltage
Together with the mesured current and the Phase shift configuration parameter the Main Voltage confirguation parameter is used to calculate the power of the oututs.Size: 2 bytes
Default: 230
Minimum: 20
Maximum: 280
Possible values
| From | To | Desription |
|---|---|---|
| 20 | 280 | Main voltage [V] |
3 - Phase shift - cosines (phi)
Together with the mesured current and the Main Voltage configuration parameter the Phase shift configruation parameter is used to calculate the power of the oututs.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Phase shift [0.01] |
4 - Send Interval Energy Output 1
Period with which the energy of output 1 is sent by a Meter Report.Size: 2 bytes
Default: 5
Minimum: 1
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Interval energy [min] |
5 - Minimum Delta Energy Send Output 1
When the energy of output 1 changes this anount the energy value is sent by a Meter Report.Size: 2 bytes
Default: 2000
Minimum: 1
Maximum: 50000
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50000 | Minimum delta energy [0.001 kWh] |
6 - Send Interval Power Output 1
Period with which the power of output 1 is sent by a Meter Report.Size: 2 bytes
Default: 5
Minimum: 1
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Interval power [min] |
7 - Minimum Delta Power Send Output 1
When the power of output 1 changes this anount the energy value is sent by a Meter Report.Size: 2 bytes
Default: 5
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Minimum dleta power [%] |
8 - Send Interval Energy Output 2
Period with which the energy of output 2 is sent by a Meter Report.Size: 2 bytes
Default: 5
Minimum: 1
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Interval energy [min] |
9 - Minimum Delta Energy Output 2
When the energy of output 2 changes this anount the energy value is sent by a Meter Report.Size: 2 bytes
Default: 2000
Minimum: 1
Maximum: 50000
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 50000 | Minimum delta energy [0.001 kWh] |
10 - Send Interval Power Output 2
Period with which the power of output 2 is sent by a Meter Report.Size: 2 bytes
Default: 5
Minimum: 1
Maximum: 120
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 120 | Interval power [min] |
11 - Minimum Delta Power Send Output 2
When the power of output 2 changes this anount the energy value is sent by a Meter Report.Size: 2 bytes
Default: 5
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Minimum delta power [%] |
Automatic inclusion (“Add”) The device supports the so-called auto-inclusion. To use this function the device must be in factory default. 1. Activate the “Add” mode on your controller. 2. Turn on the power and the unit starts in its own “Add” mode for 30 seconds. If the connection is successful, the device registers on the controller. When the device is in the “Add” mode, the LED flashes green. When finished, the new status is: Add: The LED lights up briefly in green Remove: The LED lights up briefly in red Manual inclusion (“Add”) 1. Activate the “Add” ” mode on your controller. 2. When 110 – 230 VAC is used, press a button connected to input I1 or I2 four times in quick succession to start include (“Add”). If a switch is used instead of the button, it must be changed accordingly eight times. 3. Alternatively, when 24 VDC is used, you can press the small lever (T) four times in quick succession with a pen to start “Add”. When the device is in the “Add” mode, the LED flashes green. When finished, the new status is: Add: The LED lights up briefly in green Remove: The LED lights up briefly in red
Manual exclusion (“Remove”) 1. Activate the “Remove” mode on your controller. 2. When 110 – 230 VAC is used, press a button connected to input I1 or I2 four times in quick succession to start exclude (“Remove”). If a switch is used instead of the button, it must be changed accordingly eight times. 3. Alternatively, when 24 VDC is used, you can press the small lever (T) four times in quick succession with a pen to start “Remove”. When the device is in the “Remove” mode, the LED flashes red. When finished, the new status is: Add: The LED lights up briefly in green Remove: The LED lights up briefly in red
If the myTEM Radio Switch Dual shows status “Add”, the “Remove” can be performed with any controller in the network or with the help of a new controller. However it is recommended to use the primary controller of the previous network unless it is no longer available or damaged. “Remove” deletes the memory chip, including all Z-Wave network and custom configuration settings.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| System | (Refer to parameters): State idle |
| Meter type |
|---|
| Electric Meter Consumption |
