Sunricher
In-Wall Smart Switch
SR-ZV9100A-B
On/Off Power Switch
HW: 1 FW: 1.00
ZM5101
6.71.03
0x0330 (816)
0x0201 (513)
0xD00F (53263)
ZC10-19056463
2019-05-01 18:46:11.512935
N/A
Enhanced 232 Slave
Always On Slave
The in-wall smart switch is a Z-Wave device designed to work with various types of light sources. It may be connected to two-wire or three-wire configuration so it can operate with or without neutral lead. The switch can switch ON/OFF connected light source either through Z-Wave devices or through the wall switch connected directly to it.
The in-wall smart switch is a Z-Wave device designed to work with various types of light sources. It may be connected to two-wire or three-wire configuration so it can operate with or without neutral lead. The switch can switch ON/OFF connected light source either through Z-Wave devices or through the wall switch connected directly to it. The switch can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.

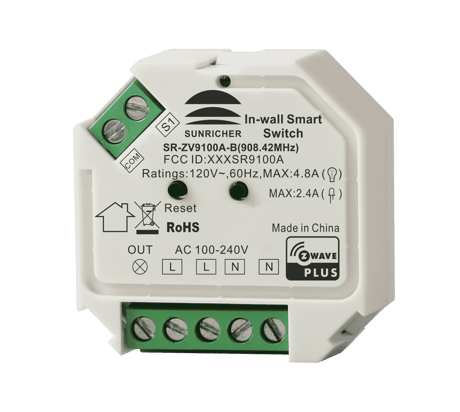

Product Picture
2 - Saving load state before power failure
Saving load state before power failureSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | shutoff load |
| 1 | 1 | turn on load |
| 2 | 2 | save load state before power failure |
3 - Enable/disable to send the basic report
Enable/disable to send the basic report to the Lifeline when the load state changed (When value set as 1, re-power on the dimmer, it will send Basic report automatically）Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable to send Basic report |
| 1 | 1 | Enable to send Basic report |
4 - Enable/disable external switch to be added to and removed from a network
Enable/disable external switch to be added to and removed from a network (when enables this function, triple press the external switch within 1.5 seconds to be added to or removed from a network)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
5 - External switch type
External switch typeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Push button switch |
| 1 | 1 | normal on/off switch |
| 2 | 2 | 3-way switch |
1. Set primary controller/gateway into inclusion mode (Please refer to your primary controller’s manual on how to turn your controller into inclusion). 2. Power on the in-wall switch and set it into inclusion mode. There are two methods to set the in-wall switch into inclusion mode: 1)Repower on the switch, it will be set into inclusion mode automatically, and waiting to be included. 2)Triple press the action button on the switch, it will set the switch into inclusion mode.
There are two exclusion methods: Method 1: Exclusion from the primary controller/gateway as follows: 1. Set the primary controller/gateway into exclusion mode (Please refer to your primary controllers manual on how to set your controller into exclusion). 2. Triple press the action button, the switch will be set to exclusion mode, and waiting to be excluded, then the switch will be excluded from the network. Method 2: Factory reset the switch will force it to be excluded from a network. (please refer to the part “Factory Reset” of this manual) Note: Factory reset is not recommended for exclusion, please use this procedure only if the primary controller/gateway is missing or otherwise inoperable.
Press and hold down the action button for over 10 seconds, the dimmer will be reset to factory defaults.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| System | (Refer to parameters): State idle |
