Dooya

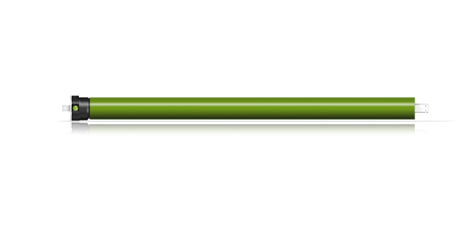

Tubular motor
DM35E/F-6/28;DM35E/F-10/17;DM35E/F-13/14
Window Covering - Pos/End Aware
HW: 144 FW: 1.14:01.00
ZM5304
6.81.04
0x030A (778)
0x0103 (259)
0x0090 (144)
ZC10-19086732
2019-08-28 14:57:29.188589
N/A
Enhanced 232 Slave
Always On Slave
Z-Wave integrated A/C powered tubular motor.
Features: Percentage control Position feedback Electronic Limit Switch Direction Stall Protection Built-in Receiver Preferred Stop Position Low-noise Jog & Lift Mode
Product Image Published
1 - Motor rotation direction
This parameter is used to set the motor rotation direction. Value: Clockwise: 0 Anticlockwiseset: 1Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Clockwise |
| 1 | 1 | Anticlockwise |
2 - Touch-start setting
This parameter is used to set the touch-start setting. Value: Enable touch-start function: 0 Disable touch-start function: 1Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Enable touch-start function |
| 1 | 1 | Disable touch-start function |
3 - Weak electric switch mode
This parameter is used to set the weak electric switch mode. Value: Double-button reboundable switch: 1 Double-button non-reboundable switch: 2 DC246 switch: 3 Single-button cyclic switch: 4Size: 1 byte
Default: 1
Minimum: 1
Maximum: 4
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 4 | Switch mode selection |
4 - Strong electric switch mode
This parameter is used to set the need for strong electric switch mode. Value: Double-button non-reboundable: 0 Hotel mode: 1 Double-button reboundable: 2Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 2 | Switch mode selection |
5 - Position limits status
Position limits status (Read-only) Value: No limits: 0 Limits had been set: 1Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Limit setting status |
6 - Device type
Device type (Read-only) Value: Curtain motor: 0x01 Shutter: 0x11 Venetian: 0x12Size: 1 byte
Default: 1
Minimum: 1
Maximum: 18
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Curtain motor |
| 17 | 17 | Shutter |
| 18 | 18 | Venetian |
7 - Power supply type
Power supply type (Read-only) Value: Mains power: 0 Battery power: 1Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Powered by Mains supply |
| 1 | 1 | Powered by Battery |
8 - Open borders
Open borders Value: Enable open boarders: 1 Close open boarders: 0Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Close open boarders |
| 1 | 1 | Enable open boarders |
9 - Close borders
Close borders Value: Enable close boarders: 1 Close close boarders: 0Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Close close boarders |
| 1 | 1 | Open close boarders |
10 - Delete the limit position
Delete the limit positionSize: 1 byte
Default: 127
Minimum: 127
Maximum: 127
Possible values
| From | To | Desription |
|---|---|---|
| 127 | 127 | Delete the limit position |
Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))
Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))
Press and hold P1 for 10S (Press and hold P1 button for 2S, the motor will long beep once and jog once; for 5S, 3 beeps and jog once if no limits; for 10S, 3 beeps and jog once; release the P1 button, 16 beeps and jog once.) Please use this procedure only when the network primary controller is missing or otherwise inoperable.
Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))
Press the motor setting button three times within 1.5 seconds. (Press P1(1 beep), Press P1(1 beep), Press P1(1 beep and 1 jog))
| Type | Value(s) |
|---|
