Everspring
WALL SWITCH-ON/OFF BUTTON
AC137-1
Wall Controller
HW: 1 FW: 1.01
SD3502
6.71.03
0x0060 (96)
0x000A (10)
0x0003 (3)
ZC10-19056482
2019-05-13 16:28:01.870854
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
The On/Off Button is a portable wireless switch designed to control the On/Off status of other associated devices thru the Z-Wave controller. After receiving the signals emitted by the On/Off Button, the Z-Wave controller can then give commands or operate according to its own settings
The AC137 Wall Switch-On/Off Button is a Z-Wave Plus enabled device and is fully compatible with any Z-Wave enabled network. The device can be set up in a Z-Wave network to communicate directly with other end devices such as lighting controllers, or to report directly a Z-Wave controller (usually a gateway). This product supports the S2 security protocol that uses encrypted Z-Wave Plus messages to communicate to other security-enabled Z-Wave Plus products. A security-enabled Z-Wave Plus Controller must be used in order to fully utilize the security features of this product.

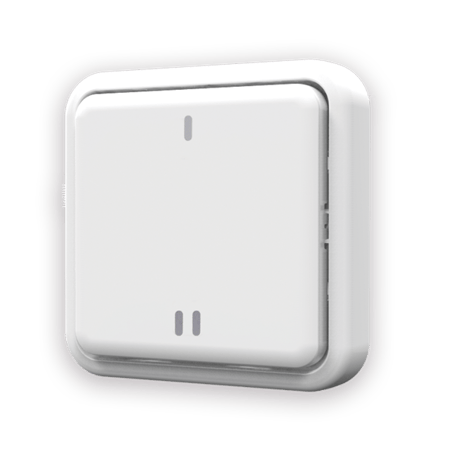

Product Picture
1. Put the Z-Wave Controller into inclusion mode. 2. Press the link button 3 times within 1.5 seconds to put the unit into inclusion mode.
1. Put the Z-Wave Controller into exclusion mode. 2. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode.
The time interval between Wakeup Notification Commands can be set in the Wakeup Command Class based on the range values below: Minimum Wake Up Interval 600s (10 minutes) Maximum Wake Up Interval 86400s (1 day) Default Wake Up Interval 14400s (4 hours) Wake Up Interval Step Seconds 600s (10 minutes)
1. Press the link button 3 times within 1.5 seconds to put the unit into exclusion mode. 2. Within 1 second of step 1, press the link button again and hold for 5 seconds. 3. Node ID is excluded. The device reverts to factory default state. (This procedure should only be used when the controller is inoperable.)
| Type | Value(s) |
|---|
