FIBARO
Wall Dimmer
FGWDEU-111
Light Dimmer Switch
HW: 1 FW: 5.01:05.01:03.06
ZM5101
6.81.01
0x010F (271)
0x1C01 (7169)
0x1000 (4096)
ZC10-19056515
2019-05-29 04:23:41.234448
N/A
Enhanced 232 Slave
Always On Slave
FIBARO Walli Dimmer is a smart wall dimmer designed to control light source via Z-Wave network.
FIBARO Walli Dimmer is a smart wall dimmer designed to control light source via Z-Wave network. It measures active power and energy consumed by the controlled load. You can install it with provided cover plate or other compatible. Main features of FIBARO Walli Dimmer: - Can be used for dimming: o 110/230V operated conventional incandescent and halogen, o 12V operated ELV halogen lamps and dimmable LED bulbs (with electronic transformers), o 12V operated MLV halogen lamps (with ferromagnetic transformers), o dimmable LED bulbs, o dimmable compact fluorescent CFL tube lamps, o supported dimmable light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2. - Can be used for switching: o compact fluorescent CFL tube lamps with electronic ballast, o fluorescent tube lamps with electronic ballast, o LED bulbs (power factor > 0.7), o supported light sources (power factor > 0.5) with minimal power of 5VA using FIBARO Bypass 2. - Uses different operating modes: o „Trailing edge” for resistive loads (R) o „Trailing edge” for resistive-capacitive loads (RC) o „Leading edge” for resistive-inductive loads (RL) - Can be used with provided cover plate or one of the following: o GIRA – System 55 (Standard 55, E2, Event, Event Clear), o Legrand – Céliane, o Schneider – Odace. - Active power and energy consumption metering. - Can be installed in two and three-wired configuration. - Calibrates automatically to the connected light source. - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. - Works as Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network). - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers.

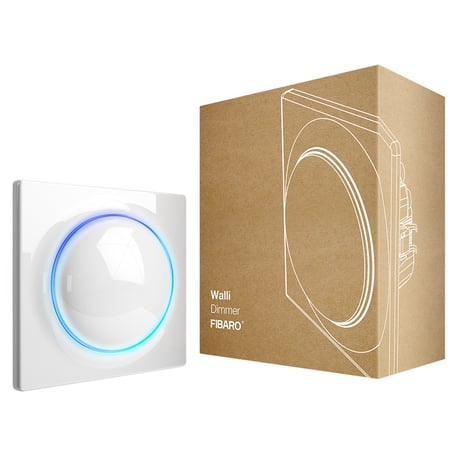

Product Picture
1 - Remember device state
This parameter determines how the device will react in the event of power supply failure (e.g. power outage).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | remains switched off after restoring power |
| 1 | 1 | restores remembered state after restoring power |
2 - Overload safety switch
This function allows to turn off the controlled device in case of exceeding the defined power. Controlled device can be turned back on via the button or sending a control frame.Size: 4 bytes
Default: 3500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function disabled |
| 10 | 5000 | (1.0-500.0W, step 0.1W) – power threshold |
10 - LED frame – power limit
This parameter determines maximum active power. Exceeding it results in the LED frame flashing violet. Function is active only when parameter 11 is set to 8 or 9.Size: 4 bytes
Default: 3500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 100 | 5000 | (10.0-500.0W, step 0.1W) – power threshold |
11 - LED frame – colour when ON
This parameter defines the LED colour when thedevice is ON. When set to 8 or 9, LED frame colour will change depending on he measured power and parameter 10. Other colours are set permanently and do not depend on power consumption.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED disabled |
| 1 | 1 | White |
| 2 | 2 | Red |
| 3 | 3 | Green |
| 4 | 4 | Blue |
| 5 | 5 | Yellow |
| 6 | 6 | Cyan |
| 7 | 7 | Magenta |
| 8 | 8 | colour changes smoothly depending on measured power |
| 9 | 9 | colour changes in steps depending on measured power |
12 - LED frame – colour when OFF
This parameter defines the LED colour when the device is OFF.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED disabled |
| 1 | 1 | White |
| 2 | 2 | Red |
| 3 | 3 | Green |
| 4 | 4 | Blue |
| 5 | 5 | Yellow |
| 6 | 6 | Cyan |
| 7 | 7 | Magenta |
13 - LED frame – brightness
This parameter allows to adjust the LED frame brightness.Size: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED disabled |
| 1 | 100 | (1-100% brightness) |
| 101 | 101 | brightness directly proportional to set level |
| 102 | 102 | brightness inversely proportional to set level |
24 - Buttons orientation
This parameter allows reversing the operation of the buttons.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | default (1st button brightens, 2nd button dims) |
| 1 | 1 | reversed (1st button dims, 2nd button brightens) |
30 - Alarm configuration - 1st slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | [MSB] – Notification Type |
| 2 | 2 | Notification Value |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
31 - Alarm configuration - 2nd slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Value |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
32 - Alarm configuration - 3rd slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
33 - Alarm configuration - 4th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Notification Type |
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
34 - Alarm configuration - 5th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] - action |
35 - Alarm configuration – duration
This parameter defines duration of alarm sequence. When time set in this parameter elapses, alarm is cancelled, LED frame and relay restore normal operation, but do not recover state from before the alarm.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | infinite |
| 1 | 32400 | (1s-9h, 1s step) – duration |
40 - First button – scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 time |
| 4 | 4 | Key pressed 3 time |
| 8 | 8 | Key hold down and key released |
41 - Second button – scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 time |
| 4 | 4 | Key pressed 3 time |
| 8 | 8 | Key hold down and key released |
60 - Power reports – include self-consumption
This parameter determines whether the power measurements should include power consumed by the device itself.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Self-consumption not included |
| 1 | 1 | Self-consumption included |
61 - Power reports – on change
This parameter defines minimal change (from the last reported) in measured power that results in sending new report. For loads under 50W the parameter is irrelevant, report are sent every 5W change.Size: 2 bytes
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting on change disabled |
| 1 | 500 | (1-500%, 1% step) – minimal change |
62 - Power reports – periodic
This parameter defines reporting interval for measured power. Periodic reports are independent from changes in value (parameter 61).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports disabled |
| 30 | 32400 | (30s-9h, 1s step) – time interval |
65 - Energy reports – on change
This parameter defines minimal change (from the last reported) in measured energy that results in sending new report.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting on change disabled |
| 1 | 500 | (0.01-5kWh, 0.01kWh step) – minimal change |
66 - Energy reports – periodic
This parameter defines reporting interval for measured energy. Periodic reports are independent from changes in value (parameter 65).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports disabled |
| 30 | 32400 | (30s-9h, 1s step) – time interval |
150 - Minimum brightness level
This parameter is set automatically during the calibration process, but can be changed manually after the calibration.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 98 | (1-98%, 1% step) – level of brightness |
151 - Maximum brightness level
This parameter is set automatically during the calibration process, but can be changed manually after the calibration.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 2 | 99 | (2-99%, 1% step) – level of brightness |
152 - Incandescence level of dimmable compact fluorescent lamps
The virtual value set as a percentage level between parameters MIN (1%) and MAX. (99%). The device will set to this value after the first switch on. It is required for warming up and switching dimmable compact fluorescent lamps and certain types of light sources.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | (1-98%, 1% step) – level of brightness |
153 - Incandescence time of dimmable compact fluorescent lamps
This parameter determines the time required for switching compact fluorescent lamps and certain types of light sources. Setting this parameter to 0 will disable the incandescence functionality.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | (0-25.5s, 0.1s step) – incandescence time |
154 - Automatic control – dimming step size
This parameter defines the percentage value of dimming step during the automatic control.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | (1-99%, 1% step) – dimming step |
155 - Automatic control – time of dimming step
This parameter defines the time of performing a single dimming step set in parameter 154 during the automatic control.Size: 2 bytes
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | This parameter defines the time of performing a single dimming step set in parameter 154 during the automatic control. |
156 - Manual control – dimming step size
This parameter defines the percentage value of the dimming step during the manual control.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Value |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
| 1 | 99 | (1-99%, 1% step) – dimming step |
157 - Manual control – time of dimming step
This parameter defines the time of performing a single dimming step set in parameter 156 during the manual control.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | (0-2.55s, 10ms step) |
158 - Auto-off functionality
This parameter allows to automatically switch off the device after a specified time from switching the light source on. It may be useful when the device is installed in the stairway.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | auto-off disabled |
| 1 | 32767 | (1s-9.1h, 1s step) – auto-off time |
159 - Force auto-calibration
Changing value of this parameter will force the calibration process. During the calibration parameter is set to 1 or 2 and switched to 0 upon completion.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | readout |
| 1 | 1 | force auto-calibration without FIBARO Bypass 2 |
| 2 | 2 | force auto-calibration with FIBARO Bypass 2 |
160 - Auto-calibration status (read-only parameter)
This parameter determines operating mode of the device (automatic/manual settings).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | calibration procedure not performed or the device operates on manual settings |
| 1 | 1 | the device operates on auto-calibration settings |
161 - Burnt out bulb detection
This parameter defines percentage power variation (compared to power consumption measured during the calibration) to be interpreted as load error/burnt out bulb.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function disabled |
| 1 | 99 | (1-99%, 1% step) – power variation |
162 - Time delay of a burnt out bulb and overload detection
This parameter defines detection delay for the burnt out bulb (parameter 161) and overload (parameter 2).Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | detection of a burnt out bulb disabled |
| 1 | 255 | (1-255s, 1s step) – time delay |
163 - First button – Switch ON value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | value sent |
| 254 | 254 | send value equal to the current level |
| 255 | 255 | value sent |
164 - Second button – Switch OFF value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | value sent |
| 254 | 254 | send value equal to the current level |
165 - Double click – set level
This parameter defines brightness level set after double-clicking any of the buttons. The same value is also sent to devices associated with 2nd and 3rd association group.Size: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | (0-99%, 1% step) – set level |
170 - Load control mode
This parameter allows to set the desired load control mode. Auto-calibration sets value of this parameter to 2 (control mode recognized during auto-calibration), but the installer may force control mode using this parameter. After changing parameter value, turn the load OFF and ON to change control mode.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | forced leading edge |
| 1 | 1 | forced trailing edge |
| 2 | 2 | control mode selected automatically (based on auto-calibration) |
171 - Load control mode recognized during auto-calibration (read only)
This parameter allows to read load control mode that was set during auto-calibration.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | leading edge |
| 1 | 1 | trailing edge |
172 - ON/OFF mode
This mode is necessary while connecting non-dimmable light sources. Setting this parameter to 1 automatically ignores brightening/dimming time settings. Forced auto-calibration will set this parameter’s value to 2.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | ON/OFF mode disabled (dimming is possible) |
| 1 | 1 | ON/OFF mode enabled (dimming is not possible) |
| 2 | 2 | mode selected automatically |
173 - Dimmability of the load (read only)
This parameter allows to read if the load detected during calibration procedure is dimmable.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | load recognized as dimmable |
| 1 | 1 | load recognized as non-dimmable |
174 - Soft-start functionality
This parameter allows to set time required to warm up the filament of halogen bulb.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no soft-start |
| 1 | 1 | short soft-start (0.1s) |
| 2 | 2 | long soft-start (0.5s) |
175 - Auto-calibration after power on
This parameter determines the trigger of auto-calibration procedure, e.g. power on, load error, etc.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no auto-calibration after power on |
| 2 | 2 | Auto-calibration after each power on |
| 3 | 3 | Auto-calibration after each LOAD ERROR (no load, load failure, burnt out bulb), if parameter 176 is set to 1 also after SURGE (output overvoltage) and OVERCURRENT (output overcurrent) |
| 4 | 4 | Auto-calibration after each power on or after each LOAD ERROR (no load, load failure, burnt out bulb), if parameter 176 is set to 1 also after SURGE (output overvoltage) and OVERCURRENT (output overcurrent) |
176 - Behaviour after OVERCURRENT or SURGE
Error occurrences related to surge or overcurrent results in turning off the output to prevent possible malfunction. By default the device performs three attempts to turn on the load (useful in case of temporary, short failures of the power supply).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | device permanently disabled until re-enabling by command or external switch |
| 1 | 1 | three attempts to turn on the load |
177 - Brightness level correction for flickering loads
Correction reduces spontaneous flickering of some capacitive loads (e.g. dimmable LEDs) at certain brightness levels in 2-wire installation. In countries using ripple-control, correction may cause changes in brightness. In this case it is necessary to disable correction or adjust the time of correction for flickering loads.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | automatic correction disabled |
| 1 | 254 | (1-254s, 1s step) – duration of correction |
| 255 | 255 | automatic correction always enabled |
178 - Method of calculating the active power
This parameter defines how to calculate active power. It is useful in a case of 2-wire connection with light sources other than resistive.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | measurement based on the standard algorithm |
| 1 | 1 | approximation based on the calibration data |
| 2 | 2 | approximation based on the control angle |
179 - Approximated power at the maximum brightness level
This parameter determines the approximate value of the power that will be reported by the device at its maximum brightness level.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 500 | (0-500W, 1W step) – power consumed by the load at the maximum brightness level. |
To add the device to the Z-Wave network manually: 1. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 2. Quickly, three times click one of the buttons. 3. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 4. LED will start blinking yellow, wait for the adding process to end. 5. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful. To add the device to the Z-Wave network using Smart Start: 1. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 2. Scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 3. Power the device. 4. Wait for the calibration process to end. Light may blink, the device will be switched off once the process is completed. 5. Wait for the adding process to start (up to few minutes), which is signaled with yellow LED blinking. 6. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful.
To remove the device from the Z-Wave network: 1. Set the main controller into remove mode (see the controller’s manual). 2. Quickly, three times click one of the buttons. 3. LED will start blinking yellow, wait for the removing process to end. 4. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour. 5. The device will start calibrating the load.
FIBARO Walli Dimmer is powered using DC power supply unit so it is always awake.
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory. 1. Quickly, three times click, then press and hold one of the buttons to enter menu. 2. Release the button when the device glows yellow. 3. Quickly click the button to confirm. 4. After a few seconds the device will be restarted, which is signalled with the red LED colour. Please include a request to use the reset procedure only when the primary controller is missing or inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| System | (Refer to parameters): State idle |
| Meter type |
|---|
| Electric Meter Consumption |
