QUBINO
3-Phase Smart Meter
ZMNHXD1
Whole Home Meter - Simple
HW: 1 FW: 1.00:01.00
ZM5101
6.71.03
0x0159 (345)
0x0007 (7)
0x0054 (84)
ZC10-19066549
2019-06-20 20:54:53.409231
N/A
Enhanced 232 Slave
Always On Slave
The 3-Phase Smart Meter is a powerful Z-Wave device for measuring energy consumption in a three-phase electrical power network of up to 3 x 65A.
The Qubino 3 Phase Smart Meter can be used in residential, industrial and utility applications. It measures energy directly in 2-wire networks by means of fast sampling of voltage and current signals. It calculates energy, power and power factor from the measured signals. You can control the device through the Z-Wave network. The Qubino 3 Phase Smart Meter can operate across a wide temperature range, from a chilly -15˚C to a scorching 55˚C (5˚F–131˚F). Every device also acts as a repeater in order to improve the range and stability of the Z-Wave network.

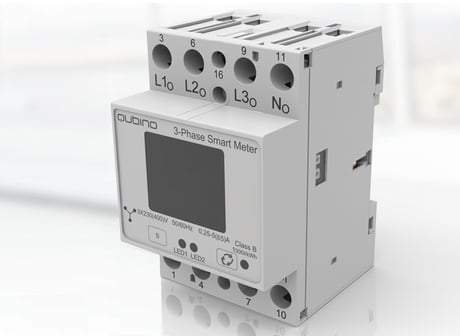

Product Picture
40 - Reporting on power change
This parameter is valid for Active Power Total, Active Power Phase1, Active Power Phase2 and Active Power Phase3. Set value means percentage from 0-100 = 0% - 100% • Available configuration parameters (data type is 1 Byte DEC) • Default value 50 • 0 – reporting disabled • 1-100 = 1% - 100% reporting enabled. Power report is send only when actual power in Watts (in real time changes for more than set percentage comparing to previous Active Power, step is 1%. NOTE: if power change is less than 5 W, the report is not send (pushed). NOTE: Device is measuring also some disturbances even if on the output is no load. To avoid disturbances: • If measured Active Power (W) is below e.g. 5W-> the reported value in this case is 0WSize: 1 byte
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | 1% - 100% reporting enabled.Power report is send only when actual power in Watts (in real time changes for more than set percentage comparing to previous Active Power, step is 1%. |
| 0 | 0 | reporting disabled |
42 - Reporting on time interval
This parameter is currently valid only for Active Energy Total Import/Export (kWh), Reactive Energy Total (kvarh), Total Energy (kVAh) • Available configuration parameters (data type is 2 Byte DEC) • Default value 600 (600 seconds - 10 minutes) • 0 – reporting disabled EN. 34 • 600-32535 = 600 (600 seconds – 32535 seconds). Reporting enabled. Report is send with the time interval set by entered value. Note: Device is reporting only if there was a change of 0.1 in Energy Note: In the future will be possible to measure and report also Active Energy on PH1, PH2 and PH3.Size: 1 byte
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 600 | 32535 | 600-32535 = 600 (600 seconds – 32535 seconds). Reporting enabled. Report is send with the time interval set by entered value. |
43 - Other Values - Reporting on time interval
This parameter is valid only for Voltage (V of ph1, ph2, ph3), Current (A of ph1, ph2, ph3), Total Power Factor, Total Reactive Power (var) Available configuration parameters (data type is 2 Byte DEC) • Default value 600 (600 seconds - 10 minutes) • 0 – reporting disabled • 600-32535 = 600 (600 seconds – 32535 seconds). Reporting enabled. Report is send with the time interval set by entered value. • Note: Device is reporting only if there was a changeSize: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Reporting disabled |
| 600 | 32535 | (600 seconds – 32535 seconds). Reporting enabled. Report is send with the time interval set by entered value. |
AUTOMATICALLY: 1. Enable add mode on your Z-Wave gateway (hub). Put the device in a mode, in which it can be added to a network (learn mode) 2. Automatic selection of secure/unsecure inclusion 3. The device can be automatically added to a Z-Wave network during the first 2 minutes 4. Connect the device to the power supply 5. Auto-inclusion will be initiated within 5 seconds of connection to the power supply and the device will be automatically added to your network MANUALLY: 1. Connect the device to the power supply 2. Enable add/remove mode on your Z-Wave gateway (hub) 2. Toggle the Service button S between 0.2 and 3 seconds 3. A new multi-channel device will appear on your dashboard
EXCLUSION: 1. Connect the device to the power supply 2. Make sure the device is within direct range of your Z-Wave gateway (hub) or use a hand-held Z-Wave remote to perform exclusion 3. Enable add/remove mode on your Z-Wave gateway (hub) 4. Press and hold the S service button between 0.2 and 3 seconds 5. The device will be removed from your network, but custom configuration parameters will not be erased. Wait at least 30 seconds before attempting to add the device back to a network.
FACTORY RESET: 1. Connect the device to the power supply 2. Press and hold the S service button between 6 seconds and 20 seconds 3. Device will be removed from you network and the green LED start blinking By resetting the device, all previously set parameters on the device will return to their default values, and the Home ID will be deleted. Use this reset procedure only when the main gateway (hub) is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
