Vision
Z-Wave Gateway
ZA1011EU-5
Gateway
HW: 3 FW: 6.04:02.81:02.00
ZM5101
6.81.03
0x0109 (265)
0x1005 (4101)
0x0501 (1281)
ZC10-20036895
2019-07-29 20:57:15.933664
N/A
Bridge Controller
Central Static Controller
This gateway is designed to manage your intelligent home with friendly and easily understanding interface.
This gateway designed to manage your intelligent home and may control up to 230 devices via the wireless Z-WAVE communication protocol. This Hub connects all of the different Z-WAVE sensors around your home so that you can receive notifications by smartphone even you are away from home.

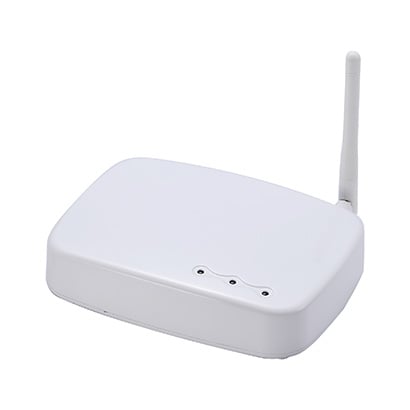

Product Image
1) Follow the manufacturer’s instructions of the other controller to enable it into Add mode. 2) Click “Learn Mode” button. If it is a S2 Controller, the DSK of the Gateway will appear. Please key in the DSK to the other Controller UI when prompted. 3) When completed, the UI will show the existing Controller and device(s) in the network.
1) Select “Reset Locally” button. 2) Confirm the dialog. This will perform a factory reset to the Gateway. If this controller is the primary controller for your network, resetting it will result in the nodes in your network being orphaned and it will be necessary after the reset to exclude and re-include all of the nodes in the network. If this controller is being used as a secondary controller in the network, use this procedure to reset this controller only in the event that the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
