Inovelli
Dimmer Switch (Red Series)
LZW31-SN
Light Dimmer Switch
HW: 1 FW: 1.24:01.20
ZM5101
6.81.03
0x031E (798)
0x0001 (1)
0x0001 (1)
ZC10-19096762
2019-06-20 21:02:23.992847
N/A
Enhanced 232 Slave
Always On Slave
The Inovelli Red Series Dimmer is our most advanced switch to date, which provides energy monitoring, scene control, LED Bar Notifications and much more.
The Inovelli Red Series Dimmer is a Z-Wave in-wall dimmer that controls attached LED, CFL, & Incandescent lighting which can be highly customized to your liking at the switch itself with our unique config button and advanced firmware. The switch can also be used either with or without a neutral wire. In addition, the Red Series comes with advanced features such as scene support, power monitoring, notifications, local protection, etc.

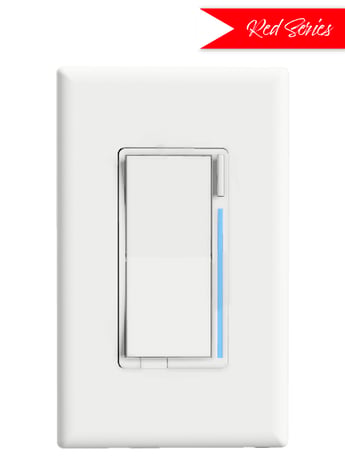

Product Image
1 - Dimming Speed
How fast or slow the light turns on when you hold the switch (ie: dimming from 10-20%, 80-60%, etc). Example of how the values work: 0 - Instant On, 1 = 1 second, 100 = 100 seconds. This parameter can be set without a HUB from the Configuration Button. Finally, if you are using a, "dumb" switch in a 3-Way setting, this parameter will not work if you manually press the dumb switch (it will only work if you press the smart switch).Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Seconds |
2 - Dimming Speed (Z-Wave)
How fast or slow the light turns dim when you adjust the switch remotely (ie: dimming from 10-20%, 80-60%, etc). Example of how the values work: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. Entering the value of 101 = Keeps the switch in sync with Parameter 1.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Seconds |
| 101 | 101 | Keeps in sync with Parameter 1 |
3 - Ramp Rate
How fast or slow the light turns on when you press the switch 1x to bring from On to Off or Off to On. Example of how the values work: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. Entering the value of 101 = Keeps the switch in sync with Parameter 1.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Seconds |
| 101 | 101 | Keeps in sync with Parameter 1 |
4 - Ramp Rate (Z-Wave)
How fast or slow the light turns on when you bring your switch from On to Off or Off to On remotely. Example of how the values work: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. Entering the value of 101 = Keeps the switch in sync with Parameter 1.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Seconds |
| 101 | 101 | Keeps in sync with Parameter 1 |
5 - Minimum Dim Level
Minimum level the light switch will dim to (great for fixing flickering bulbs). Example of how the values work: 1= 1%, 2 = 2%, 45 = 45%. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 45 | Percent |
6 - Maximum Dim Level
Maximum level the light switch will dim to. Example of how the values work: 55 = 55%, 56 = 56%, 100 = 100%. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 55 | 100 | Percentage |
7 - Invert Switch
Inverts the switch (Tap Down = On, Tap Up = Off). Example of how the values work: 0 = Disabled, 1 = Enabled. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 1 | Enabled |
8 - Auto Off Timer
Automatically turns the switch off after x amount of seconds. Example of how the values work: 0 = Disabled, 1 = 1 second, 32767 = 32767 seconds.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 32767 | Seconds |
9 - Default Level (Local)
Default dim level for the switch when pressed locally (at the switch). This is useful if you'd like your switch to turn on to a certain level when manually pressing the switch during certain times. For example, you could have your switch turn on to 10% brightness during the hours of 10pm - 6am when you manually press it. Example of how the values work: 0 = Switch will return to level it was prior to being off, 1 = 1%, 100 = 100%. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switch returns to level it was prior to being turned off |
| 1 | 100 | Percentage |
10 - Default Level (Z-Wave)
Default dim level for the switch when powered on via a Z-Wave command. This is useful if you'd like your switch to turn on to a certain level when remotely controlling the switch during certain times. For example, you could have your switch only turn on to 10% brightness during the hours of 10pm - 6am when you remotely control it. Example of how the values work: 0 = Switch will return to level it was prior to being off, 1 = 1%, 100 = 100%. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Switch returns to level it was prior to being turned off |
| 1 | 100 | Percentage |
11 - Power On State
When power is restored, the switch reverts to either On, Off, or Last Level. Example of how the values work: 0 = Off, 1-100 = Specific % On, 101 = Returns to Level before Power Outage. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When Power is restored, switch is OFF |
| 1 | 100 | When Power is restored, switch turns ON to a certain dim level |
| 101 | 101 | When Power is restored, switch reverts to last status |
12 - Association Behavior
When should the switch send commands to associated devices.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Local |
| 2 | 2 | 3-Way |
| 3 | 3 | 3-Way + Local |
| 4 | 4 | Z-Wave HUB |
| 5 | 5 | Z-Wave HUB + Local |
| 6 | 6 | Z-Wave HUB + 3-Way |
| 7 | 7 | Z-Wave HUB + Local |
| 8 | 8 | Timer |
| 9 | 9 | Timer + Local |
| 10 | 10 | Timer + 3-Way |
| 11 | 11 | Timer + Local |
| 12 | 12 | Timer + Z-Wave HUB |
| 13 | 13 | Timer + Local |
| 14 | 14 | Timer + Z-Wave HUB |
| 15 | 15 | All |
13 - LED Indicator Color
This will set the default color of the LED Bar. This is calculated by using a hue color circle (Value / 255 * 360). See website for more info. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 170
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 170 | 170 | Blue |
| 0 | 255 | Hue Color Circle |
14 - LED Indicator Intensity
This will set the intensity of the LED bar (ie: how bright it is). Example of how the values work: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 3 | Low Intensity |
| 4 | 7 | Medium Intensity |
| 8 | 10 | High Intensity |
15 - LED Indicator Intensity (When Off)
This is the intensity of the LED bar when the switch is off. Example of how the values work: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 3 | Low Intensity |
| 4 | 7 | Medium Intensity |
| 8 | 10 | High Intensity |
16 - LED Strip Effect
This will allow you to add some sweet effects to your LED bar (ie: pulse, chase, solid, etc). Example of how the values work: Byte 1 = Choose Color, Byte 2 = Choose Brightness Level, Byte 3 = Choose Effect, Byte 4 = Duration. Please see website for further instructions on how to set this up as the possible values are a matrix. You start with Byte 1 to select the color, then move to Byte 2 to select the Brightness Level, then move to Byte 3 to choose the Effect, and finally move to Byte 4 to choose the Duration.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Please see website for matrix |
17 - LED Indicator Timeout
Changes the amount of time the RGB Bar shows the Dim level if the LED Bar has been disabled. Example of how the values work: 0 = Always off, 1 = 1 second after level is adjusted, 10 = 10 seconds after level is adjusted.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Always Off |
| 1 | 10 | Seconds after level is adjusted |
18 - Active Power Alerts
The power level change that will result in a new power report being sent (% of previous report). Example of how the values work: 0 = Disabled, 10 = 10% of previous report, 100 = 100% of previous report.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 100 | Percentage of previous report |
19 - Periodic Power + Energy Reports
Time period between consecutive power and energy reports being sent (in seconds). Example of how the values work: 0 = 0 seconds, 1 = 1 second, 32767 = 32767 seconds. The timer resets after every report is sent.Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Seconds |
20 - Energy Reports
The energy level change that will result in a new energy report being sent (% of previous report). Example of how the values work: 0 = Disabled, 10 = 10% of previous report, 100 = 100% of previous report.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 100 | Percentage of previous report |
There are two ways to include your dimmer. The primary is via, ""Auto Inclusion"". With the 120V Power turned off (or the Air-Gap pulled out), start the inclusion process on your HUB. Next, flip your breaker on (or push the Air-Gap switch in) and your switch should automatically include to your network. If that doesn't work, start the inclusion process again on your HUB and tap the Configuration Button three (3) times. Please Note: If this still does not work, you can check to see if your switch is within Z-Wave Range by holding down the Configuration Button for 5-10 seconds (if it's not within range, the LED Bar will indicate Red and if it is within Range, the LED Bar will indicate Green). If your switch indicates Red, please move the switch closer to the HUB. If your switch indicates Green, please try running an Exclusion to reset your switch.
To Exclude your dimmer, put your HUB in exclusion mode and press the Configuration Button three (3) times.
You may factory reset the switch by holding down the Config Button for twenty (20) or more seconds. The LED Bar will turn Red and blink three (3) times to confirm. However, we recommend using a certified Z-Wave controller to remove the device from your network for factory resetting the switch. Only use either of these procedures in the event that the network primary controller is missing or otherwise inoperable.
Configuration/Favorites Button: This switch allows for ultimate customization via the Configuration Button (rather than via a Z-Wave HUB) such as changing the dimming speed, minimum/maximum dim level, invert switch, default dim level (local & Z-Wave), the power on state, LED Indicator Color, LED Indicator Intensity, and LED Indicator Intensity (When Off). In addition, the config button doubles as a favorites button allowing you to create your favorite scene (Z-Wave Central Scene) and press the config/favorite button to activate it. LED Bar Notifications: The LED Bar will alert you when an action has taken place (ie: Door is unlocked after 10pm, your switch will light up Red or your alarm panel is armed, it can flash green, etc). Central Scene Control: Allows up to 11 different scenes to be added to your switch (10x on the Paddles, 1x on the Config/Favorites Button). A use-case would be: Double Tap down on the switch to activate a bedtime scene that turns off all smart lights, locks the doors, and sets the temperature to 68. Smart Bulb Compatible: The internal relay can be disabled allowing for full control of Smart Bulbs (Z-Wave bulbs preferred for maximum control). This fixes the issue of when someone flips a switch and turns off power to your smart bulb (causing it to go offline). Now, you can disable the internal relay and send a scene command to turn on/off your bulb. Or directly associate the switch to the bulb to dim up/down and send a scene command to change the colors. OTA (Over-the-Air) Enabled: As with all our devices, the dimmer allows you to receive our latest firmware updates (NOTE: Please make sure your HUB supports this).
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
