IOTAS
IOTAS Hub
Connect2
Gateway
HW: 1 FW: 6.04:02.81:02.02
ZM5304
6.81.03
0x042F (1071)
0x0001 (1)
0x0001 (1)
ZC10-20036880
2020-03-05 16:45:00.326873
N/A
Bridge Controller
Central Static Controller
IoT smart hub for use in smart homes/apartments to control various Z-Wave based devices including lights, outlets, thermostats, door locks, ceiling fans, sensors
IOTAS provides its customers (residents, property managers and building owners) with an enterprise software solution that updates your community experience as new hardware and integrations are released. Along with the smart hub IOTAS provides lights, outlets, thermostats, door locks, ceiling fans, sensors and much more. The system allows residents remote access to their home but also delivers powerful solutions to property management for building-wide control and oversight. A complete ecosystem with simple installation using the IOTAS Connect hub for a safe and secure smart infrastructure.

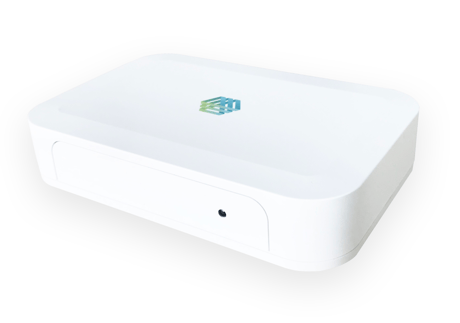

Product Image
Start inclusion, per instructions on the existing network controller. In the UI, press the learn button. When prompted, enter the 5 digit underlined portion of the DSK code. Verify secure inclusion completed successfully on the existing network controller per that documentation.
Start exclusion, per instructions on the existing network controller. In the UI, press the learn button. Verify exclusion completed successfully on the existing network controller per that documentation.
In the UI, press Hard Reset.
The DSK label can be found on the under side of the hub. It is also available via the IOTAS Maintenance Tool UI. Please see IOTAS Z-Wave Maintenance Tool Documentation (page 9) for details - IOTASZWaveMaintenanceToolDocs.pdf.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Clock | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| Illuminance |
| Power |
| Humidity |
| Meter type |
|---|
| Electric Meter Consumption |
