Inovelli
Dimmer Switch
LZW31
Light Dimmer Switch
HW: 1 FW: 1.24:01.21
ZM5101
6.81.03
0x031E (798)
0x0003 (3)
0x0001 (1)
ZC10-19096763
2019-06-20 21:06:29.237271
N/A
Enhanced 232 Slave
Always On Slave
The Inovelli dimmer switch is a Z-Wave Plus switch equipped with S2 Encryption, SmartStart, allows full customization via our config button and has an RGB LED Bar.
The Inovelli dimmer switch is a Z-Wave in-wall dimmer that controls attached LED, CFL, & Incandescent lighting which can be highly customized to your liking at the switch itself with our unique config button and advanced firmware. The switch can also be used either with or without a neutral wire.

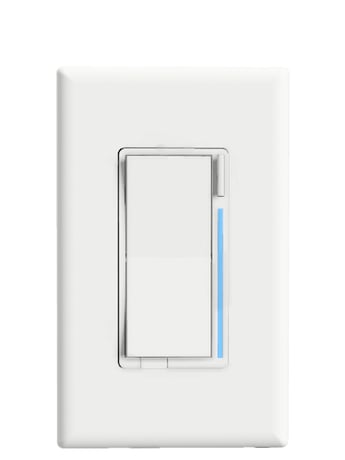

Product Image
1 - Dimming Speed
How fast or slow the light turns on when you hold the switch (ie: dimming from 10-20%, 80-60%, etc). Example of how the values are used: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. This parameter can be changed at the config button. NOTE IF USING A DUMB SWITCH: This parameter will not work when pressing the dumb switch manually.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Seconds |
2 - Dimming Speed (Z-Wave)
How fast or slow the light turns on when you dim the switch remotely (ie: dimming from 10-20%, 80-60%, etc). Example of how the values are used: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. A value of 101 keeps this parameter in sync with Parameter 1.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instant On |
| 1 | 100 | Seconds |
| 101 | 101 | Keeps in sync with Parameter 1 |
3 - Ramp Rate
How fast or slow the light turns on when you press the switch 1x to bring from On to Off or Off to On. Example of how the values are used: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. A value of 101 keeps this parameter in sync with Parameter 1.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instant On |
| 1 | 100 | Seconds |
| 101 | 101 | Keeps in sync with Parameter 1 |
4 - Ramp Rate (Z-Wave)
How fast or slow the light turns on when you turn on or off the switch remotely to bring from On to Off or Off to On. Example of how the values are used: 0 = Instant On, 1 = 1 second, 100 = 100 seconds. A value of 101 keeps this parameter in sync with Parameter 1.Size: 1 byte
Default: 101
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instant On |
| 1 | 100 | Seconds |
| 101 | 101 | Keeps in sync with Parameter 1 |
5 - Minimum Dim Level
Minimum level the light switch will dim to (great for fixing flickering bulbs). Example of how the values are used: 1= 1%, 2 = 2%, 45 = 45%. This parameter can be changed at the config button.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 45 | Percentage |
6 - Maximum Dim Level
Maximum level the light switch will dim to. Example of how the values are used: 55= 55%, 56 = 56%, 100 = 100%. This parameter can be changed at the config button.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 55 | 100 | Percentage |
7 - Invert Switch
Inverts the switch (Tap Down = On, Tap Up = Off). Example of how the values are used: 0 = Disabled, 1 = Enabled. This parameter can be changed at the config button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 1 | Enabled |
8 - Auto Off Timer
Automatically turns the switch off after x amount of seconds. Example of how the values are used: 0 = Disabled, 1 = 1 second, 32767 = 32767 seconds.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | automatically turns off after so many seconds |
9 - Default Level (Local)
Default dim level for the switch when pressed locally (at the switch). Example of how the values are used: 0 = Switch will return to level it was prior to being off, 1 = 1%, 100 = 100%. This parameter can be changed at the config button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Previous Level |
| 1 | 100 | Percentage |
10 - Default Level (Z-Wave)
Default dim level for the switch when controlled remotely (via an app or voice control). Example of how the values are used: 0 = Switch will return to level it was prior to being off, 1 = 1%, 100 = 100%. This parameter can be changed at the config button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Previous Level |
| 1 | 100 | Percentage |
11 - Power On State
When power is restored, the switch reverts to either On, Off, or Last Level. Example of how the values are used: 0 = Off, 1-100 = Specific % On. Entering a value of 101 = Returns the switch to the Level before the Power Outage. This parameter can be changed at the config button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 100 | Turns On to a Specific Percentage Level |
| 101 | 101 | Turns On to Last Percentage Level |
12 - Association Behavior
When should the switch send commands to associated devices.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Local |
| 2 | 2 | 3-Way |
| 3 | 3 | 3-Way + Local |
| 4 | 4 | Z-Wave HUB |
| 5 | 5 | Z-Wave HUB + Local |
| 6 | 6 | Z-Wave HUB + 3-Way |
| 7 | 7 | Z-Wave HUB + Local + 3-Way |
| 8 | 8 | Timer |
| 9 | 9 | Timer + Local |
| 10 | 10 | Timer + 3-Way |
| 11 | 11 | Timer + 3-Way + Local |
| 12 | 12 | Timer + Z-Wave HUB |
| 13 | 13 | Timer + Z-Wave HUB + Local |
| 14 | 14 | Timer + Z-Wave HUB + 3-Way |
| 15 | 15 | All |
13 - LED Indicator Color
This will set the default color of the LED Bar. The color is calculated by using a hue color circle (Value / 255 * 360). See website for more info. This parameter can be changed at the config button.Size: 1 byte
Default: 170
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 170 | 170 | Default Color (Blue) |
| 0 | 255 | Colors |
14 - LED Indicator Intensity
This will set the intensity of the LED bar (ie: how bright it is). Example of how the values are used: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be changed at the config button.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 32767 | Seconds |
| 0 | 0 | Off |
| 1 | 4 | Low Intensity |
| 5 | 7 | Medium Intensity |
| 8 | 10 | High Intensity |
15 - LED Indicator Intensity (When Off)
This is the intensity of the LED bar when the switch is off. Example of how the values are used: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be changed at the config button.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 4 | Low Intensity |
| 5 | 7 | Medium Intensity |
| 8 | 10 | High Intensity |
16 - LED Strip Effect
This will allow you to add some sweet effects to your LED bar (ie: pulse, chace, solid, etc). Example of how the values are used: Byte 1 = Choose Color, Byte 2 = Choose Brightness Level, Byte 3 = Choose Effect, Byte 4 = Duration. Please see website for further instructions on how to set this up as you'll have to enter values for each byte.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | No Effect |
17 - Timeout for LED Notifications
Changes the amount of time the RGB Bar shows the Dim level if the LED Bar has been disabled. Example of how the values are used: 0 = Always off, 1 = 1 second after level is adjusted, 10 = 10 seconds after level is adjusted.Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Always Off |
| 1 | 10 | Seconds after Dim Level is Adjusted |
There are two ways to include your dimmer switch. The first is via, ""Auto Inclusion"" while the backup is through physically pressing the configuration button. Auto Inclusion: With the mains power off to the switch (or the air-gap pulled out), start the inclusion process on your HUB. Once the inclusion process has been started and your HUB is looking for your switch, flip the mains power on (or push the air-gap button in) and the switch should automatically include. Config Button: If auto-inclusion doesn't work, please follow these instructions. Start by putting your HUB in inclusion mode and then press the configuration button three (3) times. If both methods aren't working, you can check the Z-Wave signal to your switch by holding the config button for 5-10 seconds. The LED bar will light up either Green or Red. If it lights up Red, please move the switch within range of the HUB until it lights up Green. If it lights up Green and you are still having issues, you will have to run an Exclusion to reset the switch.
To exclude the dimmer, put your HUB in exclusion mode and press the configuration button three (3) times.
To factory reset your dimmer, hold down the configuration button for twenty (20) or more seconds. In addition, you can you a secondary Z-Wave controller to factory reset this device (follow exclusion instructions). While both methods will factory reset your device, we recommend only using this feature when the primary controller is missing or inoperable.
The Inovelli Dimmer has some amazing features such as a configuration button that allows you to change parameters without the need for a HUB. It also has an RGB LED bar that shows the dim level of the switch, the color and intensity can be changed and also has the ability to be off until the switch is manually dimmed.
