Yale
Digital Door Lock
YDM4109+
Door Lock - Keypad
HW: 32 FW: 33.17:17.16
ZM5202
6.71.03
0x0129 (297)
0xC700 (50944)
0x0005 (5)
ZC10-19076673
2019-07-02 20:52:53.55076
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Digital Doorlock with RF connection built in and optional Z-Wave connection available
Digital Doorlock by Yale Manufacturer: iRevo, ASSA ABLOY The Yale Digital Door Lock Collection, Smarter Solution for your home, High tech Fingerprint Digital Door Lock with strong features Features: One touch Fingerprint Verification Method (Progressive Scan) Automatic Locking Voice Guide Feature Smart Touchpad Scramble code Emergency Mechanical Key Anti-panic egress with Safe handle Automatic Alarm (Break-in/Damage) Low-battery alarm and emergency power supply terminal Technical details: Mortise Lock Type Fingerprint: Up to 20 Mechanical Keys: 2 Keys Pin Code: 6-12 digits Colour: Black Outside Trim Dimensions : 28.5mm X 68.6mm X 320.7mm Thickness : Suitable for 40-80mm thick wooden doors Backset : 60mm

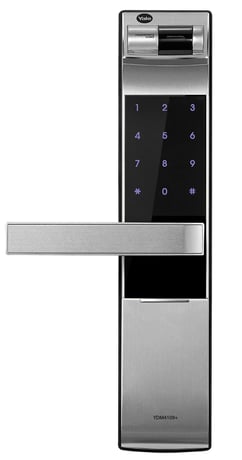

Product Picture
5 - English Language
Set the language of the Door Lock interfaceSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Korean Language |
| 2 | 2 | English Language |
| 3 | 3 | Chinese Language |
| 6 | 6 | Taiwanese Language |
To include: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'I' button [Registration] from the inside of battery cover. 4. Press 9,#,1,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play then press 'I' button
To exclude: 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'I' button [Registration] from the inside of battery cover. 4. Press 9,#,3,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play then press 'I' button
The lock is always in 'Wake up status'. However, touch with palm to begin and end action.
To reset to factory defaults: ※ Please use this procedure only when the network primary controller is missing or otherwise inoperable. (User code or master code remains the same. Only network settings reset to factory defaults.) 1. Touch keypad with palm 2. Enter User code(Normal Mode only. Enter Master code if operating Master Mode.) 3. Press 'I' button [Registration] from the inside of battery cover. 4. Press 9,#,9,# on the keypad (by sequence) 5. Wait until 'Ding dong dang' melody play then press 'I' button
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Power Management | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
