ID Lock
ID Lock 150 Z-Wave module
ID-150
Door Lock - Keypad
HW: 1 FW: 1.06:01.71
ZM5202
6.51.06
0x0373 (883)
0x0003 (3)
0x0001 (1)
ZC10-19066550
2019-06-20 20:36:08.262735
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
Z-Wave Plus module compatible with ID Lock 150 digital door lock. Z-Wave firmware version 1.6. Door lock firmware => 1.4.7
A module enabling your ID Lock digital door lock to a Z-Wave Plus enabled digital door Lock. The module is compatible with ID Lock 150. It enables your ID Lock to operate in a Z-Wave network with numerous access control funtions and notifications.

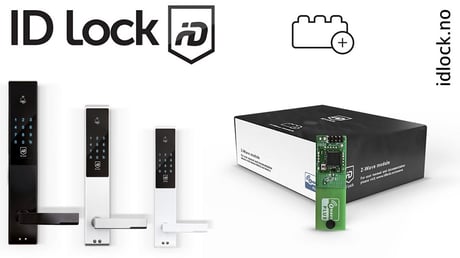

Product Picture
1 - Away and lock mode
Away mode off or on Auto or Manual Lock mode In auto Lock mode the door Locks Three Seconds after closing the door. In manual Lock mode the door Locks when pressing O/C button or activating touchpanel. When away mode is on the inside O/C button is deactivated.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Away mode off - Manual lock mode |
| 1 | 1 | Away mode off - Auto lock mode |
| 2 | 2 | Away mode on - Manual lock mode |
| 3 | 3 | Away mode on - Auto lock mode |
3 - Hinge direction (Right or Left)
Direction of hinges on door. To find your correct settings look at the mounted door lock outside. If the door hinges are on the right side of the door correct setting is "Right". If the door hinges are on the left side of the door correct setting is "Left".Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Right hinged door |
| 1 | 1 | Left hinged door |
4 - Door lock audio volume
Setting for audio volume of notifications on door lock operations.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 6 | Sound volume level 0 to 6 |
5 - ReLock mode
ReLock mode is factory default on. ReLock is the security function relocking the door lock 7 seconds after a valid unlock if the door is not opened. When ReLock is off, the door lock will remain unlocked untill a new lock door operation (i.e. pressing O/C-button, activating touch panel or closing the door if auto lock mode).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | ReLock mode off |
| 1 | 1 | ReLock mode on |
6 - Service PIN Mode
The service PIN on ID Lock 150 will be enabled or disabled according to this configuration setting. By default the Service PIN Mode is 0=Deactivated. It can be set to either 1, 2, 5 or 10 times, 12 hours, 24 hours, always valid or disabled (FE). Service PIN is identifier 108.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Deactivated |
| 1 | 1 | Valid 1 time |
| 2 | 2 | Valid 2 times |
| 3 | 3 | Valid 5 times |
| 4 | 4 | Valid 10 times |
| 8 | 8 | Valid 12 hours |
| 9 | 9 | Valid 24 hours |
| 7 | 7 | Always valid |
7 - Door lock model
This configuration is only available through the configuration get command. If the configuration report is 65(101), door lock model type is ID Lock 101. If the configuration report is 96(150), door lock model type is ID Lock 150. ID Lock 101 cannot have user PINs or individually deleted RFID keyfobs. ID Lock 101 cannot have Service PIN Mode (Mode on ID-101 is always on). ID Lock 101 cannot be remote configured on volume, hinge direction. ID Lock 101 does not have the ReLock function (Mod on ID-101 is always on). This is a read-only parameter, it cannot be changed.Size: 1 byte
Default: 96
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 65 | 65 | ID Lock 101 |
| 96 | 96 | ID Lock 150 |
8 - Updater mode
Updater mode turns on or off possibility to use the ID Lock 150 Updater app. Turns off when unlocking the door.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Updater mode off (silent) |
| 1 | 1 | Updater mode on (silent) |
| 2 | 2 | Updater mode off (audible) |
| 3 | 3 | Updater mode on (audible) |
9 - Master PIN mode
Turns on or off Master PIN unlock capability. Master PIN is identifier 109.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Master PIN cannot unlock |
| 1 | 1 | Master PIN unlocks |
Inclusion – (Puts your device in inclusion mode) • Push and hold key button until all LEDs on touch panel activates (with ID Lock in an unlocked state). • Release button. • Enter Master PIN followed by * on touch panel. • Press digit ""2"" for settings followed by * on touch panel. • Press digit “5” on touch panel. Inclusion mode starts immediately. LED indicator below logo signals this by flashing blue.
Exclusion – (Puts your device in exclusion mode) • Push and hold key button until all LEDs on touch panel activates (with ID Lock in an unlocked state). • Release button. • Enter Master PIN followed by * on touch panel. • Press digit ""2"" for settings followed by * on touch panel. • Press digit “5” on touch panel. Exclusion mode starts immediately. LED indicator below logo signals this by flashing blue.
Activate by touching the touch panel with multiple fingers or the palm of the hand on the outside unit or by pushing the key button on the inside unit. Wakeup is not recommended by touching the * or # symbol on the touch panel.
Device reset – (This will reset RF interface module to factory default settings) Warning: Please do only proceed with the following reset procedure, if primary network controller is missing or otherwise inoperable. Warning: If device reset is performed when connected to a controller the door lock will factory reset. RESET Z-WAVE MODULE: • Push and hold key button until all LEDs on touch panel activates (with ID Lock in an unlocked state). • Release button. • Enter Master PIN followed by * on keypad. • Press digit ""2"" for settings followed by * on keypad. • Press digit “0” on keypad. If the Z-wave module is not included in a Z-wave network the door lock will also return to factory settings when following the above procedure. FACTORY RESET DOOR LOCK FIRMWARE: • Push and hold inside lock/unlock button while inserting the fourth battery. • Receive reset sound. • Release button. • Receive confirmation sound.
Notification parameter in COMMAND_CLASS_NOTIFICATION_V4 Events: - Manual Unlock Operation - Manual Lock Operation - PIN Unlock Operation - RFID Unlock Operation - Z-wave unlock - Z-wave lock - Unlock Request by Unknown PIN - Unlock Request by Unknown RFID - Locked by autolock - Lock jammed Events: - Forced Open Alarm triggered - Forced Open Alarm Idle - High temperature Alarm Triggered - High temperature Alarm Idle
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Home Security | (Refer to parameters): State idle |
| Emergency Alarm | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Voltage |
| RF Signal Strength |
