Inovelli
On/Off Switch (Red Series)
LZW30-SN
On/Off Power Switch
HW: 1 FW: 2.00
ZM5101
6.81.03
0x031E (798)
0x0002 (2)
0x0001 (1)
ZC10-19086700
2019-08-02 22:32:00.431877
N/A
Enhanced 232 Slave
Always On Slave
The Inovelli Red Series On/Off is our most advanced switch to date, which provides energy monitoring, scene control, LED Bar Notifications and much more.
The Inovelli Red Series On/Off is a Z-Wave in-wall switch that controls attached LED, CFL, & Incandescent lighting which can be highly customized to your liking at the switch itself with our unique config button and advanced firmware. In addition, the Red Series comes with advanced features such as scene support, power monitoring, notifications, local protection, etc.

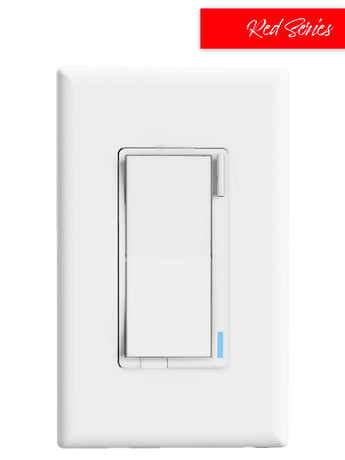

Product Picture
1 - Power On State
When power is restored, the switch reverts to either On, Off, or Last Level. Example of how the values work: 0 = Off, 1-100 = Specific % On, 101 = Returns to Level before Power Outage. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | When Power is restored, switch is OFF |
| 1 | 100 | When Power is restored, switch turns ON to a certain dim level |
| 101 | 101 | When Power is restored, switch reverts to last status |
2 - Invert Switch
Inverts the switch (Tap Down = On, Tap Up = Off). Example of how the values work: 0 = Disabled, 1 = Enabled. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 1 | Enabled |
3 - Auto Off Timer
Automatically turns the switch off after x amount of seconds. Example of how the values work: 0 = Disabled, 1 = 1 second, 32767 = 32767 seconds.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 32767 | Seconds |
4 - Association Behavior
When should the switch send commands to associated devices.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Local |
| 2 | 2 | 3-Way |
| 3 | 3 | 3-Way + Local |
| 4 | 4 | Z-Wave HUB |
| 5 | 5 | Z-Wave HUB + Local |
| 6 | 6 | Z-Wave HUB + 3-Way |
| 7 | 7 | Z-Wave HUB + Local |
| 8 | 8 | Timer |
| 9 | 9 | Timer + Local |
| 10 | 10 | Timer + 3-Way |
| 11 | 11 | Timer + Local |
| 12 | 12 | Timer + Z-Wave HUB |
| 13 | 13 | Timer + Local |
| 14 | 14 | Timer + Z-Wave HUB |
| 15 | 15 | All |
5 - LED Indicator Color
This will set the default color of the LED Bar. This is calculated by using a hue color circle (Value / 255 * 360). See website for more info. This parameter can be set without a HUB from the Configuration Button.Size: 2 bytes
Default: 170
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | Hue Color Circle |
| 170 | 170 | Blue |
6 - LED Indicator Intensity
This will set the intensity of the LED bar (ie: how bright it is). Example of how the values work: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 3 | Low Intensity |
| 4 | 7 | Medium Intensity |
| 8 | 10 | High Intensity |
7 - LED Indicator Intensity (When Off)
This is the intensity of the LED bar when the switch is off. Example of how the values work: 0 = Off, 1 = Low, 5 = Medium, 10 = High. This parameter can be set without a HUB from the Configuration Button.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 3 | Low Intensity |
| 4 | 7 | Medium Intensity |
| 8 | 10 | High Intensity |
8 - LED Strip Effect
This will allow you to add some sweet effects to your LED bar (ie: pulse, chase, solid, etc). Example of how the values work: Byte 1 = Choose Color, Byte 2 = Choose Brightness Level, Byte 3 = Choose Effect, Byte 4 = Duration. Please see website for further instructions on how to set this up as the possible values are a matrix. You start with Byte 1 to select the color, then move to Byte 2 to select the Brightness Level, then move to Byte 3 to choose the Effect, and finally move to Byte 4 to choose the Duration.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Please see website for matrix |
10 - Active Power Alerts
The power level change that will result in a new power report being sent (% of previous report). Example of how the values work: 0 = Disabled, 10 = 10% of previous report, 100 = 100% of previous report.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 100 | Percentage of previous report |
11 - Periodic Power + Energy Reports
Time period between consecutive power and energy reports being sent (in seconds). Example of how the values work: 0 = 0 seconds, 1 = 1 second, 32767 = 32767 seconds. The timer resets after every report is sent.Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | Seconds |
12 - Energy Reports
The energy level change that will result in a new energy report being sent (% of previous report). Example of how the values work: 0 = Disabled, 10 = 10% of previous report, 100 = 100% of previous report.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disabled |
| 1 | 100 | Percentage of previous report |
To include your on/off switch start the inclusion process on your HUB and tap the Configuration Button three (3) times. Please Note: If this doesn't work, you can check to see if your switch is within Z-Wave Range by holding down the Configuration Button for 5-10 seconds (if it's not within range, the LED Bar will indicate Red and if it is within Range, the LED Bar will indicate Green). If your switch indicates Red, please move the switch closer to the HUB. If your switch indicates Green, please try running an Exclusion to reset your switch.
To Exclude your switch, put your HUB in exclusion mode and press the Configuration Button three (3) times.
You may factory reset the switch by holding down the Config Button for twenty (20) or more seconds. The LED Bar will turn Red and blink three (3) times to confirm. However, we recommend using a certified Z-Wave controller to remove the device from your network for factory resetting the switch. Only use either of these procedures in the event that the network primary controller is missing or otherwise inoperable.
Configuration/Favorites Button: This switch allows for ultimate customization via the Configuration Button (rather than via a Z-Wave HUB) such as the power on state, LED Indicator Color, LED Indicator Intensity, and LED Indicator Intensity (When Off). In addition, the config button doubles as a favorites button allowing you to create your favorite scene (Z-Wave Central Scene) and press the config/favorite button to activate it. LED Bar Notifications: The LED Bar will alert you when an action has taken place (ie: Door is unlocked after 10pm, your switch will light up Red or your alarm panel is armed, it can flash green, etc). Central Scene Control: Allows up to 13 different scenes to be added to your switch (12x on the Paddles, 1x on the Config/Favorites Button). A use-case would be: Double Tap down on the switch to activate a bedtime scene that turns off all smart lights, locks the doors, and sets the temperature to 68. Smart Bulb Compatible: The internal relay can be disabled allowing for full control of Smart Bulbs (Z-Wave bulbs preferred for maximum control). This fixes the issue of when someone flips a switch and turns off power to your smart bulb (causing it to go offline). Now, you can disable the internal relay and send a scene command to turn on/off your bulb. Or directly associate the switch to the bulb to dim up/down and send a scene command to change the colors. OTA (Over-the-Air) Enabled: As with all our devices, the switch allows you to receive our latest firmware updates (NOTE: Please make sure your HUB supports this).
| Type | Value(s) |
|---|
| Meter type |
|---|
| Electric Meter Consumption |
