MCO Home
9 in 1 MULTI-SENSOR
A8-9
Notification Sensor
HW: 255 FW: 6.00
ZM5202
6.71.03
0x015F (351)
0xA803 (43011)
0x135A (4954)
ZC10-19086697
2019-08-02 19:30:47.973988
N/A
Enhanced 232 Slave
Always On Slave
MCOHome A8-9 is built in with Temperature, Humidity, PM2.5, CO2, VOC, PIR, illumination, Noise, Smoke sensors.
The MCOHome A8-9 is a Z-Wave enabled multi-sensor that can completely monitor your environment and assist with all of your smart home needs. The 3.5 inch touch-screen display allows you to see the sensor information that is also reported to your Z-Wave gateway. The A8-9 includes temperature, humidity, motion and light level like many sensors, but goes far beyond by also providing particular matter (pollution), carbon dioxide, and volatile organic compound levels as well. Security and safety is further enhanced with a noise sensor and smoke detection providing an amazing NINE different sensors in one package.

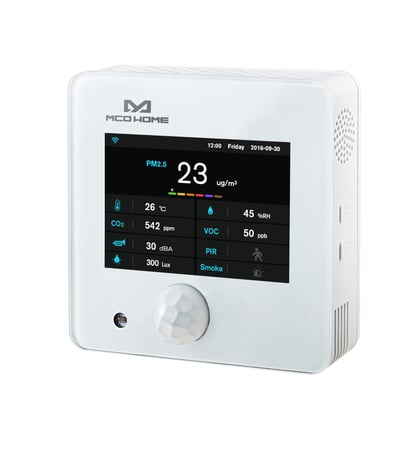

Product Picture
1 - PM25_Delta_Level
=0 Turn off report >=1 Report when change > n * 1ug/m3Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | =0 Turn off report >=1 Report when change > n * 1ug/m3 |
2 - CO2_Delta_Level
=0 Turn off report >=1 Report when change > n * 5ppmSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | =0 Turn off report >=1 Report when change > n * 5ppm |
3 - Temp_Delta_Level
=0 Turn off report >=1 Report when change > n*0.5℃Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | =0 Turn off report >=1 Report when change > n*0.5℃ |
4 - Humidity_Delta_Level
=0 Turn off report >=1 Report when change >n%Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | =0 Turn off report >=1 Report when change >n% |
5 - VOC_Delta_Level
=0 Turn off report >=1-127*5ppb ReportchangeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | =0 Turn off report >=1-127*5ppb Reportchange |
6 - Lux_Delta_Level
=0 Turn off report >=1 Report when change > n*1 LuxSize: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 32767 | =0 Turn off report >=1 Report when change > n*1 Lux |
7 - dB_Delta_Level
=0 Turn off report >=1 Report when change > n*1dBSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 127 | =0 Turn off report >=1 Report when change > n*1dB |
8 - PIR_Delta_Level
=0 Turn off report =1 Report changeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | =0 Turn off report =1 Report change |
9 - SMOKE_Delta_Level
=0 Turn off report =1 Report changeSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | =0 Turn off report =1 Report change |
10 - Smoke_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
11 - PIR_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
12 - PM25_Timer
=0 Turn off report >=35Report every n*1s intervalSize: 2 bytes
Default: 120
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35Report every n*1s interval |
13 - CO2_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 120
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
14 - Temp_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
15 - Humidity_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
16 - VOC_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 180
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
17 - Lux_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
18 - dB_Timer
=0 Turn off report >=35 Report every n*1s intervalSize: 2 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 35 | 32767 | >=35 Report every n*1s interval |
47 - Temp. unit
=0 ℃ =1 ℉Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | =0 ℃ =1 ℉ |
50 - T_OffSet
0 ~ 127: ((n-100)/10)=(-10~2.7)℃ -128 ~ -1: ((156+n)/10)=(2.8~15.5)℃Size: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 ~ 127: ((n-100)/10)=(-10~2.7)℃ -128 ~ -1: ((156+n)/10)=(2.8~15.5)℃ |
51 - RH_OffSet
n-20=(-20~20)%Size: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 40 | n-20=(-20~20)% |
52 - CO2_OffSet
(n-500)=(-500~500)ppmSize: 2 bytes
Default: 500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1000 | (n-500)=(-500~500)ppm |
53 - PM2.5_OffSet
0 ~ 127: n-100=(-100~27)ug/m3 -128 ~ -1: 156+n=(28~155)ug/m3Size: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 ~ 127: n-100=(-100~27)ug/m3 -128 ~ -1: 156+n=(28~155)ug/m3 |
54 - Lux_OffSet
n-5000=(-5000~5000)luxSize: 2 bytes
Default: 5000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10000 | n-5000=(-5000~5000)lux |
55 - VOC_Correct
0 ~ 127: n-100=(-100~27)ppb -128 ~ -1: 156+n=(28~155)ppbSize: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -128 | 127 | 0 ~ 127: n-100=(-100~27)ppb -128 ~ -1: 156+n=(28~155)ppb |
56 - dB_Correct
(n-50)=-50~50Size: 1 byte
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | (n-50)=-50~50 |
Activate Add mode in the gateway. When device is powered on, hold F1 to choose interface for Add into Z-Wave network. Click F2 five times until ""cycle icon"" turns blue. Hold F2 and the device enters into learning mode, then ""wifi icon"" turns blue and the device is added into Z-Wave network.
Activate Remove mode in the gateway. When device is powered on, hold F1 to choose interface for Remove into Z-Wave network. Click F2 five times until ""cycle icon"" turns blue. Hold F2 and the device enters into learning mode, then ""wifi icon"" turns blue and the device is added into Z-Wave network.
1. Remove the device from network. 2. By manual: 1, Press & hold F1 to enter Z-Wave setting interface, then press & hold F1 again to enter parameters setting interface; 2, Press & hold F2 to enter setting interface and select “default”; 3, Click F2 3 times and displays “OFF”-->“ON”-->“OK”-->“OFF”, factory setting is restored. 3. Input 0xFF to ==0x55 Restore factory setting ==0xAA Restore default para. Note: Please use this procedure only when the network primary controller is missing or otherwise inoperable
MCOHome A8-9 is a Z-Wave enabled multiple environmental monitoring sensors, with 3.5 inch TFT clear display and compliant to Z-Wave Plus standard. It is built in with Temperature, Humidity, PM2.5, CO2, VOC, PIR, illumination, Noise, Smoke sensors. Device can be added into any Z-Wave network, and is compatible with any other Z-Wave certified devices.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
| Humidity |
| Carbon Dioxide (CO2) Level |
| Loudness |
| Volatile Organic Compound Level |
| Smoke Density |
| Particulate Matter 1 |
