RATOC
Z-Wave Smart IR Repeater
RS-ZWIREX1
IR Repeater
HW: 1 FW: 1.00:01.00
ZM5202
6.81.03
0x040F (1039)
0x0001 (1)
0x0001 (1)
ZC10-19116789
2019-07-22 20:53:29.419665
N/A
Enhanced 232 Slave
Always On Slave
The RS-ZWIREX1 supports learning and repeating IR signals. The RS-ZWIREX1 also has a temperature and humidity sensor.
The RS-ZWIREX1 is an IR repeater supporting the Z-Wave Plus standard. The RS-ZWIREX1 supports learning and repeating IR signals. The RS-ZWIREX1 also has a temperature and humidity sensor. The RS-ZWIREX1 is a security enabled Z-Wave Plus Product. This device must be used in conjunction with a Security Enabled Z-Wave Controller in order to fully utilize all implemented functions. The RS-ZWIREX1 supports the standard security S0 and S2.

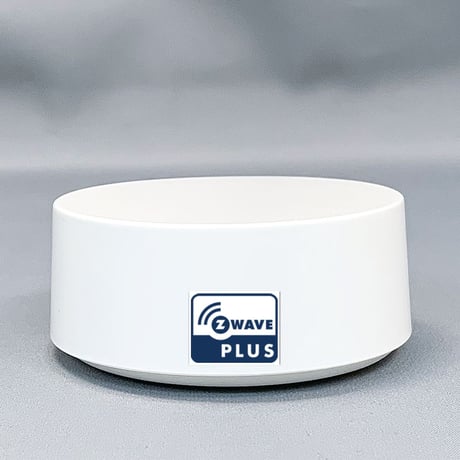

Product Image
To add or include the RS-ZWIREX1 into a Z-Wave network using Z-wave Learn mode button 1. Set the controller in inclusion mode 2. Push the Learn mode button once 3. Wait about 15 seconds
To remove or exclude the RS-ZWIREX1 into a Z-Wave network 1. Set the controller in exclusion mode 2. Push Z-Wave Learn mode button once 3. Wait about 5 seconds.
The RS-ZWIREX1 can be set to factory settings by pushing Z-wave Learn mode button for 5 seconds. Please use this procedure only when the primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Air Temperature |
| Humidity |
