FIBARO
FIBARO Motion Sensor
FGMS-001
Notification Sensor
HW: 1 FW: 3.04:03.04
ZM5202
6.51.07
0x010F (271)
0x0801 (2049)
0x2002 (8194)
ZC10-19066574
2019-06-28 04:36:20.382704
N/A
Enhanced 232 Slave
Reporting Sleeping Slave
Yes
FIBARO Motion Sensor is a universal, battery-powered, Z-Wave Plus compatible multi-sensor.
FIBARO Motion Sensor is a universal, Z-Wave Plus compatible multi-sensor. This device has a built-in motion sensor, temperature sensor and light sensor. Additionally, through vibrations detection, it may detect tampering attempt or an earthquake. FIBARO Motion Sensor is battery powered, completely wireless, and its casing allows for quick and non-invasive installation on any surface. The eye of the sensor visually indicates motion, temperature level, operating mode or may inform about Z-Wave network range. The device can be used for lighting scenes and presence monitoring systems.

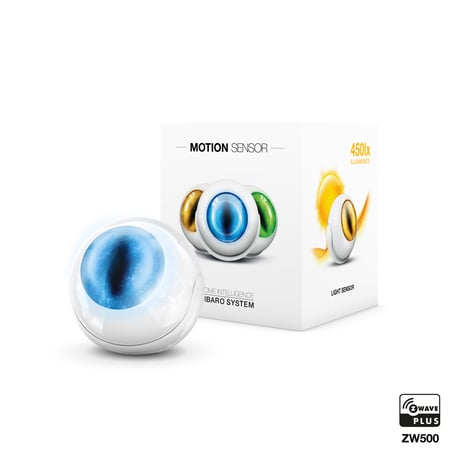

Product Picture
1 - Motion detection - sensitivity
The lower the value, the more sensitive the PIR sensor is.Size: 2 bytes
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 8 | 255 | sensitivity |
2 - Motion detection - blind time
PIR sensor is “blind” (insensitive) to motion after last detection for the amount of time specified in this parameter. Shorter time periods allow to detect motion more frequently, but the battery will be drained faster.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 15 | (0.5-8 seconds, time [s] = 0.5 x (value+1)) |
3 - Motion detection - pulse counter
This parameter determines the number of moves required for the PIR sensor to report motion. The higher the value, the less sensitive the PIR sensor is. It is not recommended to modify this parameter settings!Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 1 pulse |
| 1 | 1 | 2 pulse |
| 2 | 2 | 3 pulse |
| 3 | 3 | 4 pulse |
4 - Motion detection - window time
Period of time during which the number of moves set in parameter 3 must be detected in order for the PIR sensor to report motion. The higher the value, the more sensitive the PIR sensor is. It is not recommended to modify this parameter setting!Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 4 seconds |
| 1 | 1 | 8 seconds |
| 2 | 2 | 12 seconds |
| 3 | 3 | 16 seconds |
6 - Motion detection - alarm cancellation delay
Time period after which the motion alarm will be cancelled in the main controller and associated devices. Any motion detected during this period resets the timer.Size: 2 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | in seconds |
8 - Motion detection - operating mode
This parameter determines in which part of day the PIR sensor will be active. This parameter influences only the motion reports and associations. Tamper, light intensity and temperature measurements will be still active, regardless of this parameter settings.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | PIR sensor always active |
| 1 | 1 | PIR sensor active during the day only |
| 2 | 2 | PIR sensor active during the night only |
9 - Motion detection - night/day
This parameter defines the difference between night and day in terms of light intensity, used in parameter 8.Size: 2 bytes
Default: 200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | (1-32767 lux) |
12 - BASIC command class configuration
This parameter determines the command frames sent to 2nd association group (assigned to PIR sensor).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | BASIC ON and OFF command frames sent in Basic Command Class |
| 1 | 1 | only the BASIC ON command frame sent in Basic Command Class |
| 2 | 2 | only the BASIC OFF command frame sent in Basic Command Class |
14 - BASIC ON command frame value
The command frame sent at the moment of motion detection. Further motion detections, during the cancellation time, will not result in sending the association.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | BASIC ON |
16 - BASIC OFF command frame value
The command frame sent at the moment of motion alarm cancellation, after cancellation delay time specified in parameter 6.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 255 | BASIC OFF |
18 - Associations in Z-Wave network Security Mode
This parameter defines how commands are sent in specified association groups: as secure or non-secure. Parameter is active only in Z-Wave network security mode. It does not apply to 1st group “Lifeline”.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | none of the groups sent as secure |
| 1 | 1 | 2nd group sent as secure |
| 2 | 2 | 3rd group sent as secure |
| 4 | 4 | 4th group sent as secure |
| 8 | 8 | 5th group sent as secure |
20 - Tamper - sensitivity
This parameter determines the change in force acting on the device, that will result in reporting tamper alarm - g-force acceleration.Size: 1 byte
Default: 20
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | tamper inactive |
| 1 | 121 | (0.08-2g; every 0.016g) |
22 - Tamper - alarm cancellation delay
Time period after which a tamper alarm will be cancelled in the main controller and associated devices. Any tampering detected during this period will not extend the delay.Size: 2 bytes
Default: 30
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32767 | in seconds |
24 - Tamper - operating modes
This parameter determines function of the tamper and sent reports. It is an advanced feature serving much more functions than just detection of tampering.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | tamper only |
| 1 | 1 | tamper and earthquake detector |
| 2 | 2 | tamper and orientation in space |
25 - Tamper - alarm cancellation
This parameter allows to disable cancellation of the tamper alarm.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | do not send tamper cancellation report |
| 1 | 1 | send tamper cancellation report |
28 - Tamper - broadcast mode
The parameter determines whether the tamper alarm frame will or will not be sent in broadcast mode. Alarm frames sent in broadcast mode can be received by all of the devices within range (if they accept such frames), but not repeated by them.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | tamper alarm sent to 3rd association group |
| 1 | 1 | tamper alarm sent in broadcast mode |
29 - Tamper - backward compatible broadcast mode
The parameter determines whether the backward compatible tamper alarm frame will or will not be sent in broadcast mode. Alarm frames sent in broadcast mode can be received by all of the devices within range (if they accept such frames), but not repeated by them. This parameter provides backward compatibility with controllers not supporting Z-Wave+.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | backward compatible tamper alarm sent to 5th association group |
| 1 | 1 | backward compatible tamper alarm sent in broadcast mode |
40 - Illuminance report - threshold
This parameter determines the change in light intensity level resulting in illuminance report being sent to the main controller.Size: 2 bytes
Default: 200
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reports are not sent |
| 1 | 32767 | (illuminance in lux) |
42 - Illuminance report - interval
Time interval between consecutive illuminance reports. The reports are sent even if there is no change in the light intensity.Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodical reports are not sent |
| 1 | 32767 | (in seconds) |
60 - Temperature report - threshold
This parameter determines the change in measured temperature that will result in new temperature report being sent to the main controller.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reports are not sent |
| 1 | 255 | 0.1-25.5°C, 0.1°C step) |
62 - Temperature measuring - interval
Time interval between consecutive temperature measurements. The shorter the time, the more frequently the temperature will be measured, but the battery life will shorten.Size: 2 bytes
Default: 900
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | temperature is not measured |
| 1 | 32767 | (in seconds) |
64 - Temperature report - interval
Time interval between consecutive temperature reports. The reports are sent even if there is no change in the temperature.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodical reports are not sent |
| 1 | 32767 | (in seconds) |
66 - Temperature offset
The value to be added to the actual temperature, measured by the sensor (temperature compensation).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| -1000 | 1000 | (-100 - 100°C, 0.1°C step) |
80 - Visual LED indicator - signalling mode
This parameter determines the way in which visual indicator behaves after motion has been detected.Size: 1 byte
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED inactive |
| 1 | 9 | single long blink at the moment of reporting motion. No other motion will be indicated until alarm is cancelled. |
| 10 | 18 | single long blink at the moment of reporting motion and one short blink each time the motion is detected again. |
| 19 | 26 | single long blink at the moment of reporting motion and two short blinks each time the motion is detected again. |
81 - Visual LED indicator - brightness
This parameter determines the brightness of the visual LED indicator when indicating motion.Size: 1 byte
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | brightness determined by the illuminance(parameters 82 and 83) |
| 1 | 100 | (1-100%) |
82 - Visual LED indicator - illuminance for low indicator brightness
Light intensity level below which brightness of visual indicator is set to 1%.Size: 2 bytes
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 83 | (in lux) |
83 - Visual LED indicator - illuminance for high indicator brightness
Light intensity level above which brightness of visual indicator is set to 100%.Size: 2 bytes
Default: 1000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 82 | 32767 | (in lux) |
86 - Visual LED indicator - temperature for blue colour
This parameter is determines minimal temperature that will result in blue visual indicator colour. Relevant only when parameter 80 has been properly configured.Size: 2 bytes
Default: 18
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 87 | (in Celsius degree) |
87 - Visual LED indicator - temperature for red colour
This parameter is determines minimal temperature that will result in red visual indicator colour. Relevant only when parameter 80 has been properly configured.Size: 2 bytes
Default: 28
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 86 | 255 | (in Celsius degree) |
89 - Visual LED indicator - tamper alarm
This parameter allows to enable/disable indicating tamper alarm (flashing white, red and blue)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | tamper alarm is not indicated |
| 1 | 1 | tamper alarm is indicated |
1. Open the cover by turning it counter-clockwise. 2. Place the device within the direct range of your Z-Wave controller. 3. Set the main controller in (security/non-security) add mode (see the controller’s manual). 4. Quickly, three times press the B-button. 5. Wait for the adding process to end. 6. Successful adding will be confirmed by the Z-Wave controller’s message.
1. Open the cover by turning it counter-clockwise. 2. Place the device within the direct range of your Z-Wave controller. 3. Set the main controller in remove mode (see the controller’s manual). 4. Quickly, three times press the B-button. 5. Wait for the removing process to end. 6. Successful removing will be confirmed by the Z-Wave controller’s message.
The Motion Sensor will wake up at a defined time interval and will always try to communicate with the main controller. There is a possibility to wake up the device manually by clicking the B-button.
1. Open the cover by turning it counter-clockwise. 2. Press and hold the B-button. 3. Wait for visual indicator to glow yellow (2nd menu position). 4. Release the B-button. 5. Click the B-button to confirm selection. 6. After few seconds the device will be reset, which is signalled with the red, fading visual indicator colour. Use reset procedure only if the primary controller is missing or inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
