Honeywell
Plug-in Outdoor Smart Switch
39363/ZW4203
On/Off Power Switch
HW: 255 FW: 5.52
ZM5202
6.81.03
0x0039 (57)
0x4F50 (20304)
0x3034 (12340)
ZC10-19076672
2019-07-15 23:22:27.248126
N/A
Enhanced 232 Slave
Always On Slave
The New Honeywell Plug-in Outdoor Smart Switch is equipped with S2 and Smart Start which allows for easy and secure inclusion.
Transform any home into a smart home with the Honeywell Z-Wave Outdoor Smart Switch. The lighting control enables wireless control of on/off functions for outdoor applications, and is compatible with incandescent, LED, Xenon, Halogen, fluorescent and compact fluorescent bulbs. The discreet black color blends in with any outdoor environment. Perfect for decorative or seasonal lighting, fountains and other outdoor plug-in appliances. Our New Plug-in Outdoor Smart Switch is equipped with S2 and Smart Start which allows for easy and secure inclusion. Take control of your home lighting with Honeywell Z-Wave Smart Lighting Controls!

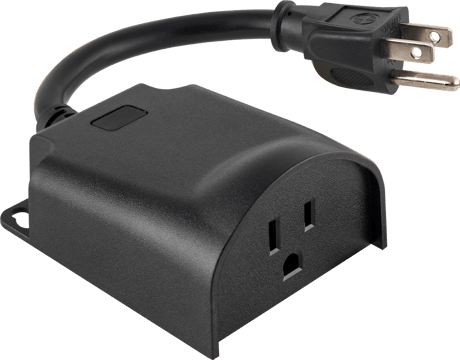

Product Picture
3 - LED Indication Configuration
Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED ON when device is OFF, LED is OFF when device is ON |
| 1 | 1 | LED ON when device is ON, LED is OFF |
| 2 | 2 | LED always OFF |
| 3 | 3 | LED always ON |
19 - Alternate Exclusion
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Press the button once to exclude |
| 1 | 1 | Press the button twice and hold on the third press |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and the manual/program button on the smart switch. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the box or the QR code label on the product. Enter the 5-digit code.
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press the manual/program button on the smart switch to remove it from the network.
1. If plugged in, unplug the device from the receptacle. 2. Press and hold the manual/program button, plug the device in, and continue to hold for at least 3 seconds. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
How to cycle through LED options — Press button 10 times quickly. 1. LED is ON when the load is ON (indicates the switch is ON) (default) 2. LED is always OFF 3. LED is always ON (illuminates switch in the dark) 4. LED is ON when the load is off (guide light in the dark)
| Type | Value(s) |
|---|
