InWave Pro Z-Wave device database

Brand

REHAU

Name

Rehau RE.GUARD Leakage detector

Part number

14573121001.0

Device type

Valve

Description

The Rehau RE.GUARD is a water manager which protecs your home against water leakages and meassures your consumption of water

Description long

The Rehau RE.GUARD is a water manager which protects your home against water leakages and meassures your consumption of water. It has a highly sophisticated water meter and pressure meter built inside. Its algorithms are able to detect very small microleakages as well as larger leakages like e.g. pipe bursts. The sensibility can be adapted to your needs. Furthermore statistics of your water consumption can be created to help you save water. This product is available at your professional plumber. Made and engineered in Europe

Z-Wave Features

Categories (2)

Security Systems

Water Valves & Irrigation

Z-Wave Chip Series

500

Region (1)

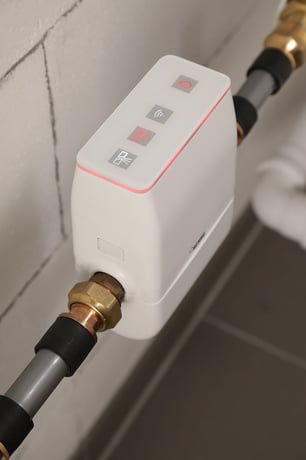

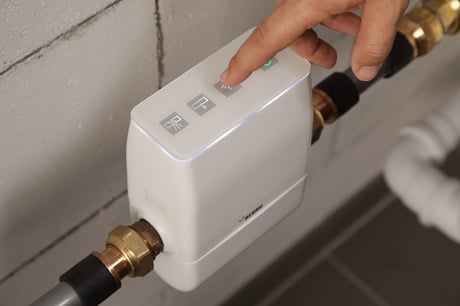

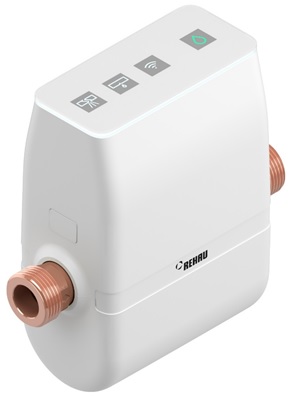

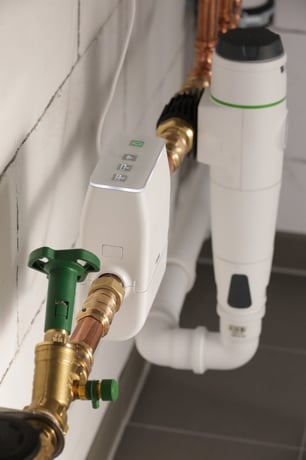

Product Image

0 / 0

Download configuration parameters

Download configuration parameters and import them in your Smart Home hub.

Please log in to download configuration parameters

1 - operation mode

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 3

Possible values

From	To	Desription
0	0	0-valve (always) off
1	1	1-user absent=not at home=holiday
2	2	2 = user present=at home
3	3	3 = valve (always) on

4 - fixed schedule time hours

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 23

Possible values

From	To	Desription
0	23	hour of day

5 - fixed schedule time minutes

minutes in time stamp

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 59

Possible values

From	To	Desription
0	59	minute

6 - fixed schedule day

127 = 1111111 in binary, 0 -> automatic schedule time interval is used, see "data_definiton_comment"

Size: 1 byte

Default: 127

Minimum: 0

Maximum: 127

Possible values

From	To	Desription
1	127	1111111 in binary,

7 - automatic schedule time interval

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 168

Possible values

From	To	Desription
0	168	How many days

8 - micro leakage mesuring time

Size: 2 bytes

Default: 100

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	seconds measuring time

9 - micro leakage pressure drop

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	presssure drop in kPa

10 - micro leakage pressure drop abort

Size: 2 bytes

Default: 100

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	pressure drop in kPa

11 - number of measurements

for micro leackage

Size: 1 byte

Default: 3

Minimum: 1

Maximum: 99

Possible values

From	To	Desription
1	99	how many in one time period

12 - wait time until next measurement

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 60

Possible values

From	To	Desription
0	60	waiting time in minutes between two meassurements

13 - reaction to micro leakage

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 2

Possible values

From	To	Desription
0	2	0=disable detection, 1=blink LED, 2= blink LED andshut off valve

14 - macro leakage detected

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	0	no leackage
1	1	leackage detected

15 - max flow rate if operation mode is 2

Size: 2 bytes

Default: 3000

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	flowrate in l/h

16 - max pressure drop if operation mode is 2

Size: 2 bytes

Default: 1000

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	pressure drop in kPa

18 - max continious liter if operation mode is 2

Size: 2 bytes

Default: 300

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	liter

20 - max continious time if operation mode is 2

Size: 2 bytes

Default: 60

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	time in minutes for water flow in present mode

21 - max flow rate if operation mode is 1

Size: 2 bytes

Default: 300

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	max flow rate in absent mode liters/hour

22 - max pressure drop if operation mode is 1

Size: 2 bytes

Default: 1000

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	max pressure drop in absent mode

24 - max continious liter if operation mode is 1

Size: 2 bytes

Default: 100

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	max. liter of water in absent mode

26 - max continious time if operation mode is 1

Size: 2 bytes

Default: 30

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	max. time of water flow in absent mode in minutes

28 - reaction to macro leakage

0=disable detection, 1=blink LED, 2= blink LED and shut off valve

Size: 1 byte

Default: 2

Minimum: 0

Maximum: 2

Possible values

From	To	Desription
0	2	0=disable detection, 1=blink LED, 2= blink LED and shut off valve

30 - reaction to flooding sensor

0=disable detection, 1=blink LED, 2= blink LED andshut off valve

Size: 1 byte

Default: 1

Minimum: 0

Maximum: 2

Possible values

From	To	Desription
0	2	0=disable detection, 1=blink LED, 2= blink LED andshut off valve

31 - backup battery nominal voltage

Size: 2 bytes

Default: 0

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	7	shows backup battery voltage

37 - time set correctly

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 1

Possible values

From	To	Desription
0	1	0=time not set 1=time set correctly

38 - total operating time

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 2147483647

Possible values

From	To	Desription
0	2147483647	Read only: Counting total operation time internally

39 - operating time since last power on

Size: 4 bytes

Default: 0

Minimum: 0

Maximum: 2147483647

Possible values

From	To	Desription
0	2147483647	Read only counting operation time since last power off

50 - water temperature high threshold

Size: 2 bytes

Default: 250

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	1°C = 10; Recommended 25°C by international standards

51 - water temperature low threshold

Size: 2 bytes

Default: 20

Minimum: 0

Maximum: 32000

Possible values

From	To	Desription
0	32000	1°C = 10; Water icing prevention

54 - error code

error codes; see documentation for

Size: 1 byte

Default: 0

Minimum: 0

Maximum: 127

Possible values

From	To	Desription
0	37	showing different error codes. See website for error description

Type	Name
Product Manual in English	Manualcompressedandshort-2.pdf
Advanced Information Product Manual	Manualcompressedandshort-2.pdf
Product Manual	multi language small.pdf

Type: Product Manual in English

Name: Manualcompressedandshort-2.pdf

Type: Advanced Information Product Manual

Name: Manualcompressedandshort-2.pdf

Type: Product Manual

Name: multi language small.pdf

Group	Type
Water Alarm	Sensor status: Water leak detected Water pressure alarm status: Water pressure alarm Water temperature alarm status: Water temperature alarm
Power Management	Backup battery level status: Back-up battery is low
System	HW status: System hardware failure
Water Valve	Valve short circuit status: Valve short circuit

Sensor type
Water Temperature
Water Flow
Water Pressure

Meter type
Water Meter Consumption
