ATSUMI Electric Co., Ltd.
4 in 1 Multi Sensor
ZNS10
Notification Sensor
HW: 1 FW: 1.01:01.01
ZM5202
6.81.03
0x0427 (1063)
0x0001 (1)
0x0002 (2)
ZC10-19076679
2019-07-17 17:05:35.954198
N/A
Routing Slave
Reporting Sleeping Slave
Yes
“4 in 1 Multi Sensor” is a sensor that detects door and window open/close, temperature, humidity, and illumination.
This product is “4 in 1 Multi Sensor” that detects door and window open/close, temperature, humidity, and illumination. It detects the state change of the place where the product is installed and notifies the controller. It's possible to install it in the various places because a thin magnet is adopted.

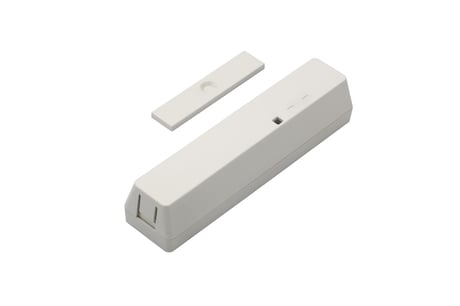

Product Picture
1 - LED
LED Setting, Whether to Enable/Disable lighting at sending.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Enable |
| 1 | 1 | Disable |
2 - Temperature
Temperature Setting - Threshold value.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 7 | Value desired (1 to 9°C in increments of 1°C) |
Press the operating switch once and release it within about 2 seconds, then registration operation is started and the LED lights for about 30 seconds.
Press the operating switch once. The LED comes on and then goes out.
Press the operating switch twice consecutively. The sensor wakes from the sleep state, and sends “WAKE UP NOTIFICATION”. It will automatically enter the sleep state upon completion of sending/receiving with the controller.
Use this procedure only in the event that the primary controller is lost. All the set values and the controller information are cleared to return to the factory default. 1. Hold down the operating switch for about 10 seconds. The LED comes on when initialization starts. 2. Release the operating switch when the LED comes on.The initialization is complete when the LED goes out.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control | (Refer to parameters): State idle |
| Sensor type |
|---|
| Air Temperature |
| General Purpose |
| Illuminance |
| Humidity |
