KPL
PIR-Z-Wave
IX32-Z-Wave
Notification Sensor
HW: 255 FW: 5.36
ZM5202
6.51.09
0x0214 (532)
0x0005 (5)
0x0003 (3)
ZC10-19076690
2019-07-30 20:38:12.619929
N/A
Routing Slave
Reporting Sleeping Slave
Indoor human passive infrared detector
The Z-Wave sensor is equipped with Z-Wave500 series main control chip. It is a passive infrared intrusion sensor that adopts Energy Integration Logical Processing, Random Dynamic Time Segmentation & Digital Signal Processing Technologies. With precise columnar Fresnel lens, it can increase its energy receiving efficiency and sensitivity without false alarm. In conjunction with advanced software technology, it will make an accurate judgement between real intruder & interference factors that may cause false alarm. Superior ability to detect & prevent false positives. The pulse number is optional, suitable for kinds of residential constructions, preventing false positive & false negative that other ordinary indoor sensors cannot do. Its performance is far beyond other ordinary PIR alarms. Besides, we use large capacity built-in battery & special power saving solution, battery working life is up to 3 years.

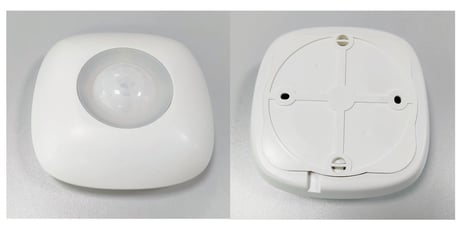

Product Picture
1 - Basic Set
If there is any device under Association Group2, the PIR sensor will send “Basic Set = value” command to control that device when the PIR sensor is alarm.Size: 1 byte
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Decimalism 1-100,Used for quantitative control of other z-wave devices, like adjusting the brightness of lights. |
| 255 | 255 | Decimalism 255,To control other devices that only receive basic set value = 0xff. |
2 - Turn Off Light Time Configuration
If there is any device under Association Group2, the PIR sensor will send “Basic Set = value” command to Group2, and send “Basic Set = 0x00” command to turn-off light after “5 x t” seconds.Size: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 24 | Decimalism 1-24,To control the time to turn off the lights.The basic step value of time is 5 seconds.If the value is set to 4,start timing when the lights are turned on,turn off the lights after 4*5 seconds =20 seconds |
3 - PIR Sensor Alarm Elimination Time Configuration
Min set time is 5s. If the configuration is 1, that means it will eliminate alarm after 5 seconds, if t, will eliminate alarm after “5 x t” seconds.Size: 1 byte
Default: 4
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 24 | Decimalism 1-24,Used to set to send the eliminate alarm time after PIR alarm.The basic step value of time is 5 seconds,If the value is set to 4,send the eliminate alarm message after alarm 4 * 5 seconds = 20 seconds |
enter the Inclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will stay in enrollment state until successfully enrolled into network or enrollment time out after 30s.
enter the Exclusion Mode of gateway, and press the tamper switch 3 times within 1.5s, then the PIR sensor will be removed after a period of time.
a) Manual Wake-up Quickly press tamper switch once, the PIR sensor will automatically send wake-up information, and there will be 10s after wake-up to receive gateway setting information. b) Automatic Wake-up Default time of automatic wake-up is 24 hours, and there will be 10s after wake-up to receive gateway setting information, the max automatic report time = 24 hours, minimum=30min.
Press the anti-tamper switch for 6 times within 2.5 seconds to restore factory settings(Please include a request to use the reset procedure only when the primary controller is missing or inoperable).
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Home Security | (Refer to parameters): State idle |
| Sensor type |
|---|
| General Purpose |
