HZC ELECTRIC
Z-Wave Rotary Dimmer Switch
EU-P10
Light Dimmer Switch
HW: 1 FW: 1.17
ZM5101
6.81.03
0x0431 (1073)
0x0202 (514)
0x0001 (1)
ZC10-20036888
2020-03-13 10:31:20.343163
N/A
Enhanced 232 Slave
Always On Slave
Z-Wave Rotary Dimmer Switch without neutral, suitable for new building and retrofitted house
The Dimmer controller is a switch multilevel device based on Z-Wave and it can be easy configuration, operation and can make the traditional LED dimmable lighting to be intelligent control. This Dimmer integrated Z-Wave communication module to connect with Z-Wave gateway and this device can be adapted to EU (868.42Mhz) The Dimmer controller can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase the reliability of the network. The Dimmer controller is also a security Z-Wave device and supports the Over The Air (OTA) feature for the product’s firmware upgrade. If you want your Dimmer controller to be a security device that use secure/encrypted message to communicate in a Z-Wave network, then a security enabled Z-Wave controller is needed.

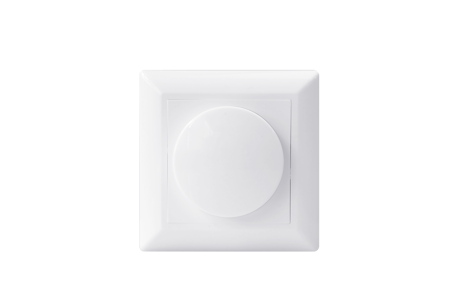

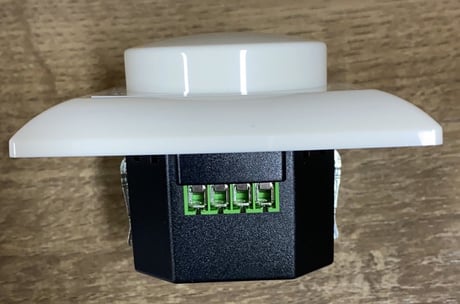

Product Image

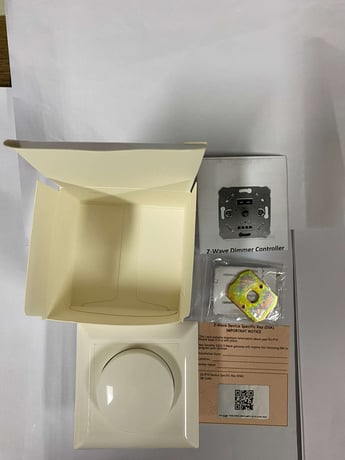

Full view of the product
Package of the product

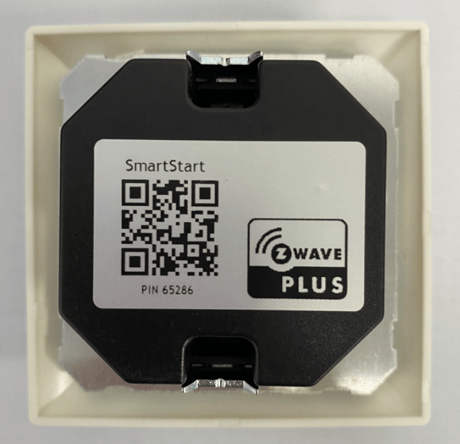

Back Side of the product

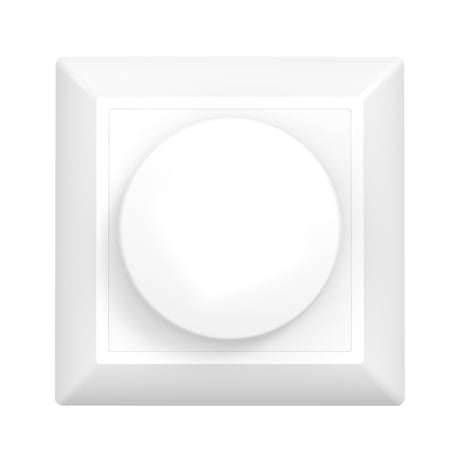

Front Side of the product
1 - State After Power Restored
The state the switch should return to once power is restored after power failure.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Off |
| 1 | 1 | On |
| 2 | 2 | Returns to level before Power Outage |
2 - Notification when Load status change
The Dimmer will send notification to associated device (Group Lifeline) when the status of Dimmer load is changedSize: 1 byte
Default: 1
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The function is disabled |
| 1 | 1 | Send Switch Multilevel Report . |
| 2 | 2 | Send Switch Multilevel Report only when Load status is not changed by Z-WAVE Command |
1. Set primary controller/gateway into inclusion mode (If you don’t know how to do this, please refer to your primary controller’s manual on how to turn your controller into inclusion mode). 2. Short press 2 times the reset button, it will set the dimmer controller into inclusion mode.25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be added to the Z-Wave network.
1. Set primary controller/gateway into exclusion mode (If you don’t know how to do this, please refer to your primary controller’s manual on how to turn your controller into exclusion mode). 2. Short press 2 times the reset button, it will set the dimmer controller into exclusion mode (The dimmer controller already exists a Z-Wave network). 25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be removed from the Z-Wave network. Note: The Dimmer will start SmartStart Inclusion when it is removed from a Z-wave network.
1. Power on the dimmer controller, press and hold down the reset button for over 4 seconds, it will set the dimmer controller into inclusion mode.25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 2. The dimmer controller will be added to the Z-Wave network.
Press and hold down reset button for over 4 seconds, the dimmer controller will be reset to factory defaults. Note: This procedure should only be used when the primary controller is inoperable. Reset Dimmer controller to factory default settings will sets the Dimmer to not in z-wave network state, delete the Association setting and restore the Configuration setting to the default. The Dimmer controller will start SmartStart Inclusion when it is reset.
You scan the QR code with an android phone. For example, the QR Code may be scanned by the application provided with your SmartStart compatible Z-Wave controller. ( The data for each Dimmer is different) Note: If your controller does not support SmartStart inclusion, please refer to the manual for your controller for non-SmartStart inclusion.
1. Set primary controller/gateway into inclusion mode (If you don’t know how to do this, Please refer to your primary controller’s manual on how to turn your controller into inclusion mode). 2. Power on the dimmer controller, press and hold down the reset button for over 4 seconds, it will set the dimmer controller into inclusion mode.25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be added to the Z-Wave network.
1. Set primary controller/gateway into exclusion mode (If you don’t know how to do this, Please refer to your primary controller’s manual on how to turn your controller into exclusion mode). 2. Power on the dimmer controller again, it will set the dimmer controller into exclusion mode (The dimmer controller already exists a Z-Wave network). 25 seconds timeout if there is no reply from the Z-Wave primary controller, repeat the operation. 3. The dimmer controller will be removed from the Z-Wave network.
| Type | Value(s) |
|---|
