HEIMAN
Smart Smoke Sensor
HS3SA-Z
Notification Sensor
HW: 255 FW: 3.01
ZM5202
6.71.03
0x0260 (608)
0x8002 (32770)
0x1001 (4097)
ZC10-19076680
2019-07-22 20:37:11.629244
N/A
Routing Slave
Reporting Sleeping Slave
Yes
The smart smoke alarm is a battery operated, photoelectric alarm. This unit is designed to alert you and your family to the dangers of smoke and fire.
The smart smoke alarm is a battery operated, photoelectric alarm. This unit is designed to alert you and your family to the dangers of smoke and fire. When detected smoke reaches the set threshold value, the smoke alarm will issue visible and audible alarm signals and send alarm notification to user APP.

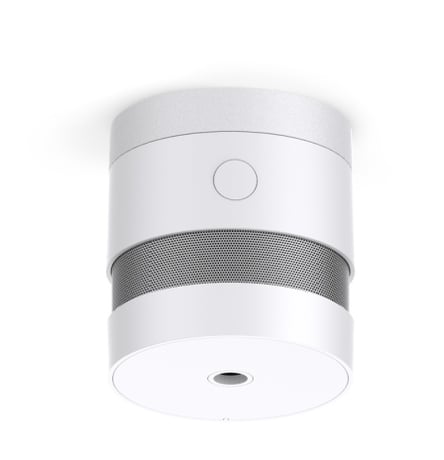

Product Picture
Device ADD for Inclusion - Click [Add] icon in Z-Wave Controller . - Press the Net_Button 3 times within 1.5s, Green LED is Blinking 3 times within 1 second. - If Inclusion Process is successful, Green led will turn off.
Device Remove for Exclusion - Click [Remove] icon in Z-Wave Controller - Press the Net_Button 3 times within 1.5s - If Exclusion Process is successful, Green led is Blinking 6 times, then turn off.
Device Factory Reset --Long press Net_Button at least 10 seconds in the product. - Device Reset Locally notification is Transmitted. . Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Smoke Alarm | State Idle |
