Honeywell
In-Wall Smart Dimmer
39351/ZW3010
Light Dimmer Switch
HW: 255 FW: 5.53
ZM5202
6.81.03
0x0039 (57)
0x4944 (18756)
0x3235 (12853)
ZC10-19086695
2019-08-01 23:19:57.065818
N/A
Enhanced 232 Slave
Always On Slave
Honeywell In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements.
In-Wall Smart Dimmer with QuickFit and SimpleWire enhancements. Revolutionary QuickFit design features a housing depth that is up to 20 percent smaller than the previous Z-Wave models. This reduced size coupled with the elimination of heat taps provides a better fit in older style boxes and multi-gang configurations. SimpleWire technology allows line and load to automatically be configured with auto-sensing line-load terminals. All of this is coupled with Z-Wave S2 and Smart Start allows for effortless installation while being safer than ever!

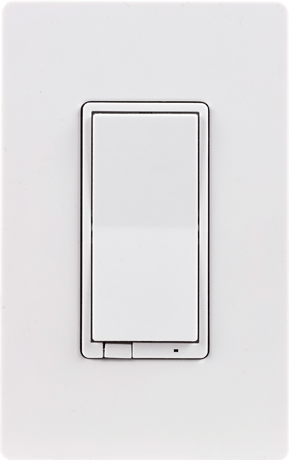

Product Picture
3 - LED indication configuration
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | The device is ON, LED is OFF; the device is OFF, LED is ON |
| 1 | 1 | The device is ON, LED is ON; the device is OFF, LED is OFF |
| 2 | 2 | LED always OFF |
| 3 | 3 | LED always ON |
6 - Dim Up/Down Rate
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Dim up/down the light to the specified level quickly by command except value O and FF |
| 1 | 1 | Dim up/down the light to the specified level slowly by command except value O and FF |
16 - Enable/Disable Switch Mode
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable |
| 1 | 1 | Enable |
19 - Alternate Exclusion
Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Press any button on the switch |
| 1 | 1 | Press two times ON button and two times OFF button, LED will flash 5 times if exclusion succeed |
30 - Minimum Dim Threshold
Set the minimum dimmer threshold when manually or remotely controlledSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Set the minimum dimmer threshold when manually or remotely controlled |
31 - Maximum Brightness Threshold
Set the maximum brightness threshold when manually or remotely controlledSize: 1 byte
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | Set the maximum brightness threshold when manually or remotely controlled |
32 - Default Brightness Level
Set the default brightness level that the dimmer will turn on when being turned on manuallySize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Default |
| 1 | 99 | Set the default brightness level that the dimmer will turn on when being turned on manually |
1. Follow the instructions for your Z-Wave certified controller to add a device to the Z-Wave network. 2. Once the controller is ready to add your device, press and release the top or bottom of the wireless smart dimmer (rocker) to add it in the network. If prompted by the controller to enter the S2 security code, refer to the QR code/security number on the back of the box, or the QR code label on the product.
1. Follow the instructions for your Z-Wave certified controller to remove a device from the Z-Wave network. 2. Once the controller is ready to remove your device, press and release the top or bottom of the wireless smart dimmer (rocker) to remove it from the network.
Quickly press ON (top) button 3 times, then, immediately press the OFF (bottom) button 3 times. The LED will flash 5 times when completed successfully. Note: This should only be used in the event your network’s primary controller is missing or otherwise inoperable.
Button Press Functions Cycle LED= Press 3 up then 1 down to cycle through LED status Switch Mode = Press 5 up then 5 down if done successfully the LED will blink 5 times Min Threshold = Press 4 down then 1 up, if done successfully the device will turn to 1% and the LED will start to blink signaling the device is in setup mode. Press and hold up or down to adjust the device to the desired minimum threshold. Max Threshold = Press 4 up then 1 down, if done successfully the device will turn to 99% and the LED will start to blink signaling the device is in setup mode. Press and hold down or up to adjust the device to the desired maximum threshold.
| Type | Value(s) |
|---|
