EVA LOGIK
S2 In-wall Smart Dimmer switch
ZW31
Light Dimmer Switch
HW: 1 FW: 1.00
ZM5202
6.81.03
0x0312 (786)
0xA000 (40960)
0xAA02 (43522)
ZC10-19086704
2019-08-05 21:08:30.516704
N/A
Enhanced 232 Slave
Always On Slave
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal ,around obstacles and radio dead spots to ensure that the signal is received at its intended destination.

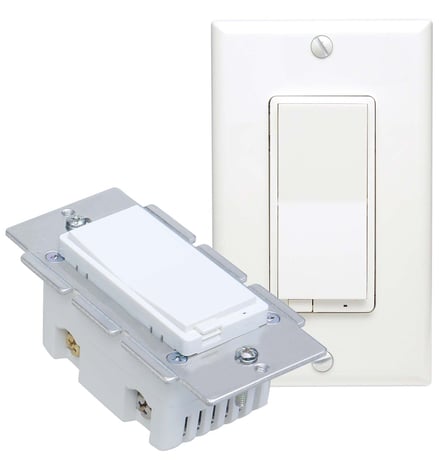

Product Picture
1 - Locally Button function
Locally Button functionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Up Button ON,Down Button OFF |
| 1 | 1 | Up Button OFF,Down Button ON |
| 2 | 2 | Up Button: On/Off Down Button: On/Off |
2 - Status LED Configuration
Status LED ConfigurationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output and the LED are in the different state. |
| 1 | 1 | Output and the LED are in the same state. |
| 2 | 2 | Always OFF |
| 3 | 3 | Always ON |
3 - Enable Auto Turn-OFF Timer
Enable Auto Turn-OFF TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-OFF Timer Disabled |
| 1 | 1 | Auto Turn-OFF Timer Enabled |
4 - Count Down Configuration
Count Down Configuration(Turn off the output by time）Size: 4 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Count Down Configuration(Turn off the output by time） |
5 - Enable Auto Turn-ON Timer
Enable Auto Turn-ON TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-ON Timer Disabled |
| 1 | 1 | Auto Turn-ON Timer Enabled |
6 - Count Down Configuration
Count Down Configuration(Turn ON the output by time）Size: 4 bytes
Default: 60
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Count Down Configuration(Turn ON the output by time） |
7 - Association Setting Parameter
Association Setting ParameterSize: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | None |
| 1 | 1 | Local |
| 2 | 2 | 3-way |
| 3 | 3 | 3-way&Local |
| 4 | 4 | Z-Wave hub |
| 5 | 5 | Z-Wave hub&Local |
| 6 | 6 | Z-Wave hub&3-way |
| 7 | 7 | Z-Wave hub&Local&3-way |
| 8 | 8 | Timer |
| 9 | 9 | Timer&Local |
| 10 | 10 | Timer&3-way |
| 11 | 11 | Timer&3-way&Local |
| 12 | 12 | Timer&Z-Wave hub |
| 13 | 13 | Timer&Z-Wave hub&Local |
| 14 | 14 | Timer&Z-Wave hub&3-way |
| 15 | 15 | ALL |
8 - Restores state after power failure
Restores state after power failureSize: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output OFF. |
| 1 | 1 | Output ON |
| 2 | 2 | The state before a power outage. |
9 - Dimmer Speed Parameter （Local Button）
Dimmer Speed Parameter （Local Button）Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | from 0x63 to 0x00 or from 0x00 to 0x63 need XXs |
10 - Multilevel minimum value can be set
Multilevel minimum value can be set（The minimum luminance value of the dimming）（Local Button）Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Multilevel minimum value can be set（The minimum luminance value of the dimming）（Local Button） |
11 - Multilevel maxmum value can be set
Multilevel maxmum value can be set（The maxmum luminance value of the dimming）（Local Button）Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Multilevel maxmum value can be set（The maxmum luminance value of the dimming）（Local Button） |
12 - quickly press UPPER paddle 2 times
when switch is off and quickly press UPPER paddle 2 times, switch turns on to x brightness （Local Button）Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn ON to 99 |
| 1 | 1 | turn on to the value relate |
14 - Double Tap Behavior
Double Tap BehaviorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | enable double tap to full brightness |
| 1 | 1 | disable double tap to full brightness, single tap to last brightness level |
| 2 | 2 | disable double tap to full brightness, single tap always to full brightness |
15 - Enable or Disable local control
Enable or Disable local controlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
1. Follow the instructions for your Z-Wave certified controller to include a device to the Z-Wave network. 2. Once the controller is ready to include your device, press up and release the toggle three times to include it in the network. 3. Once your controller has confirmed that the device has been included, refresh the Z-Wave network to optimize performance. 4. The device is associated in the same group when it included in setting process.
1. Follow the instructions for your Z-Wave certified controller to exclude a device from the Z-Wave network. 2. Once the controller is ready to Exclude your device, press up and release the front button Three times to exclude it from the network.
Press click Z-Wave button3 times quickly,and hold the third time for at least 10 seconds. to restore the device to the factory.Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
