FIBARO
Wall Plug UK
FGWPG-121
On/Off Power Switch
HW: 1 FW: 4.02:04.02
ZM5101
6.71.01
0x010F (271)
0x1501 (5377)
0x1000 (4096)
ZC10-19086711
2019-08-08 17:50:58.687454
N/A
Enhanced 232 Slave
Always On Slave
FIBARO Wall Plug is a Z-Wave controlled plug-in switch with the ability to measure power and energy consumption. It is also equipped with a USB charging port with power metering.
FIBARO Wall Plug is a remotely controlled plug-in switch with the ability to measure power and energy consumption. It uses a LED frame to visualize the current load and operating mode with color changing illumination. FIBARO Wall Plug makes it possible to control electrical devices in a convenient and maintenance-free way. It is also equipped with a USB charging port with power metering. Main features of FIBARO Wall Plug: - Compatible with type G sockets and plugs. - Compatible with any Z-Wave or Z-Wave+ Controller. - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 with PRNG-based encryption. - Extremely easy installation - simply plug the device into the mains socket. - Equipped with USB charging port. - Works as a Z-Wave signal repeater. - Active power and energy consumption metering for plugged device and the USB port. - Current value of the load and operating mode are indicated by the multi-color LED frame.

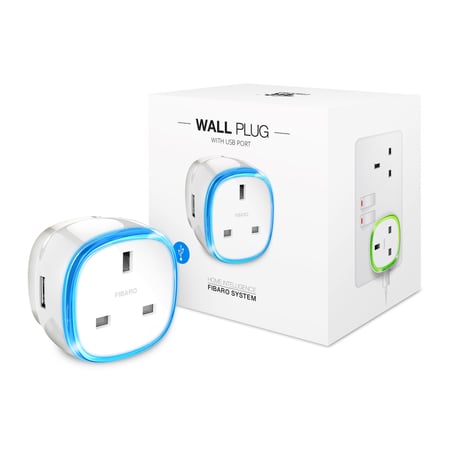

Product Picture
2 - Remember device status before the power failure
This parameter determines how the Wall Plug will react in the event of power supply failure (e.g. power outage or taking out from the electrical outlet). After the power supply is back on, the Wall Plug can be restored to previous state or remain switched off.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | device remains switched off |
| 1 | 1 | device restores the state from before the power failure |
3 - Overload safety switch
This function allows to turn off the controlled device in case of exceeding the defined power. Controlled device can be turned back on via button or sending a control frame. By default this function is inactive.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function inactive |
| 10 | 30000 | 1.0-3000.0W, step 0.1W) - power threshold |
11 - Power reporting
This parameter determines the minimum percentage change in active power consumption (in relation to the previously reported) that will result in sending new power report.Size: 1 byte
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | power reports inactive |
| 1 | 100 | power change in percent |
12 - Energy reporting threshold
This parameter determines the minimum change in energy consumption (in relation to the previously reported) that will result in sending a new report.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | energy reports inactive |
| 1 | 500 | (0.01-5kWh, step 0.01kWh) - threshold |
13 - Periodic power reporting
This parameter defines time period between independent reports sent when changes in power load have not been recorded or if changes are insignificant. By default reports are sent every hour.Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports inactive |
| 30 | 32400 | (in seconds) |
14 - Periodic energy reporting
This parameter defines time period between independent reports sent when changes in power load have not been recorded or if changes are insignificant. By default reports are sent every hour.Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports inactive |
| 30 | 32400 | (in seconds) |
15 - Measuring energy consumed by the Wall Plug itself
This parameter determines whether power metering should include the amount of power consumed by the Wall Plug itself. Results are being added to the value of power consumed by controlled device.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function inactive |
| 1 | 1 | function active |
21 - UP value - „On/Off (Power)” association group (3)
Upper power threshold, used in parameter 23. UP value cannot be lower than a value specified in parameter 22.Size: 2 bytes
Default: 500
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 100 | 30000 | (10.0-3000.0W, step 0.1W) |
22 - DOWN value - „On/Off (Power)” association group (3)
Lower power threshold, used in parameter 23. DOWN value cannot be higher than a value specified in parameter 21.Size: 2 bytes
Default: 300
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 29900 | (0.0-2990.0W, step 0.1W) |
23 - Controlling „On/Off (Power)” association group (3)
This parameter defines the way that 3rd association group devices are controlled. Depends on the actual measured power (according to parameters 21 and 22 settings).Size: 1 byte
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | send frame (with value set in parameter 26) only if power exceeded value of parameter 21 |
| 2 | 2 | send frame (with value set in parameter 27) only if power dropped below value of parameter 22 |
| 3 | 3 | send frame in both cases |
24 - SWITCH ON value - „On/Off (Button)” association group (2)
The value of BASIC SET command frame sent to the devices associated in 2nd group „On/Off (Button)” when turning the device ON using the button.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | turning off associated devices |
| 1 | 99 | forcing level of associated devices |
| 255 | 255 | setting associated devices to the last remembered state or turning them on |
25 - SWITCH OFF value - „On/Off (Button)” association group (2)
The value of BASIC SET command frame sent to the devices associated in 2nd group „On/Off (Button)” when turning the device OFF using the button.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | turning off associated devices |
| 1 | 99 | forcing level of associated devices |
| 255 | 255 | setting associated devices to the last remembered state or turning them on |
26 - THRESHOLD UP value - „On/Off (Power)” association group (3)
The value of BASIC SET command frame sent to the devices associated in 3rd group „On/Off (Power)” if power exceeded value of parameter 21.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | turning off associated devices |
| 1 | 99 | forcing level of associated devices |
| 255 | 255 | setting associated devices to the last remembered state or turning them on |
27 - THRESHOLD DOWN value - „On/Off (Power)” association group (3)
The value of BASIC SET command frame sent to the devices associated in 3rd group „On/Off (Power)” if power dropped below value of parameter 22.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | turning off associated devices |
| 1 | 99 | forcing level of associated devices |
| 255 | 255 | setting associated devices to the last remembered state or turning them on |
30 - Active alarms
Define Z-Wave network alarms to which the Wall Plug will respond.Size: 1 byte
Default: 63
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | general alarm |
| 2 | 2 | smoke alarm |
| 4 | 4 | CO alarm |
| 8 | 8 | CO2 alarm |
| 16 | 16 | high temperature alarm |
| 32 | 32 | flood alarm |
31 - Response to alarm frames
This parameter defines how the Wall Plug will respond to alarms (device’s status change). In case of values 1 or 2 the Wall Plug is operating normally and LED frame signals an alarm through time defined in parameter 32 or until the alarm is canceled. In case of values 5 to 50 the Wall Plug does not report status change, power changes, ignores BASIC SET command frames. After time defined in parameter 32 or after the alarm cancellation, connected device is set to the previous state.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | no reaction |
| 1 | 1 | turn connected device on |
| 2 | 2 | turn connected device off |
| 5 | 50 | (0.5-5.0s, step 0.1s) - cyclically change device state with set period |
32 - Alarm state duration
This parameter specifies the duration of alarm state. If a device sending an alarm frame through the Z-Wave network sets alarm duration as well, this settings are ignored.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 32400 | (in seconds) |
40 - Power load for violet color
This parameter determines maximum active power value, which when exceeded, causes the LED frame to flash violet. Function is active only when parameter 41 is set to 1 or 2.Size: 2 bytes
Default: 30000
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1000 | 30000 | (100.0-3000.0W, step 0.1W) |
41 - LED frame color when controlled device is on
When set to 1 or 2, LED frame color will change depending on active power and parameter 40. Other colors are set permanently and do not depend on power consumption.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | illumination turned off completely |
| 1 | 1 | color changes smoothly depending on active power |
| 2 | 2 | color changes in steps depending on active power |
| 3 | 3 | white |
| 4 | 4 | red |
| 5 | 5 | green |
| 6 | 6 | blue |
| 7 | 7 | yellow |
| 8 | 8 | cyan |
| 9 | 9 | magenta |
42 - LED frame color when controlled device is off
This parameter defines the illumination color after turning off.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | illumination turned off completely |
| 1 | 1 | LED frame is illuminated with a color corresponding to the last measured power, before the controlled device was turned off |
| 3 | 3 | white |
| 4 | 4 | red |
| 5 | 5 | green |
| 6 | 6 | blue |
| 7 | 7 | yellow |
| 8 | 8 | cyan |
| 9 | 9 | magenta |
43 - LED frame color at the Z-Wave network alarm detection
This parameter defines the illumination color in case of Z-Wave alarm.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | illumination turned off completely |
| 1 | 1 | no change in color. LED frame color is determined by settings of parameters 41 or 42 |
| 2 | 2 | LED frame flashes red/blue/white |
| 3 | 3 | white |
| 4 | 4 | red |
| 5 | 5 | green |
| 6 | 6 | blue |
| 7 | 7 | yellow |
| 8 | 8 | cyan |
| 9 | 9 | magenta |
To add the device to the Z-Wave network: 1. Plug the device into a socket nearby the main Z-Wave controller. 2. The LED frame will glow red signaling not being added (reset or remove the device otherwise). 3. Set the main controller in (security/non-security) add mode. 4. Quickly, triple click the button located on the casing. 5. If you are adding in S2 authenticated mode, type in the device pin code (underlined part of the public key available on the device or in the manual). 6. Wait for the adding process to end. 7. Successful adding will be confirmed by the Z-Wave controller’s message.
To remove the device from the Z-Wave network: 1. Plug the device into a socket nearby the main Z-Wave controller. 2. The LED frame will glow green signaling being added (removing is not necessary otherwise). 3. Set the main controller into remove mode. 4. Quickly, triple click the button located on the casing. 5. Wait for the removing process to end. 6. Successful removing will be confirmed by the Z-Wave controller’s message.
FIBARO Wall Plug is powered with mains voltage so it is always awake.
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. 1. Make sure the device is powered. 2. Press and hold the button. 3. Wait for the LED frame to glow yellow (3rd menu position). 4. Release the button. 5. Click the button once to confirm selection. 6. After few seconds the device will restart with factory settings, which is signaled with the red frame color. Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management | (Refer to parameters): State idle |
| System | (Refer to parameters): State idle |
| Sensor type |
|---|
| Power |
| Meter type |
|---|
| Electric Meter Consumption |
