HYUNDAI TELECOM
DIGITAL DOOR LOCK
HDL-5200SK
Door Lock - Keypad
HW: 1 FW: 1.00:01.00
ZM5101
6.81.05
0x0374 (884)
0x0001 (1)
0x0081 (129)
ZC10-19086733
2019-08-29 11:07:01.176679
N/A
Enhanced 232 Slave
Listening Sleeping Slave
Yes
- Lock & Unlock Automatically
- Lock & Unlock Automatically - Supports Z-Wave - Touchscreen Keypad

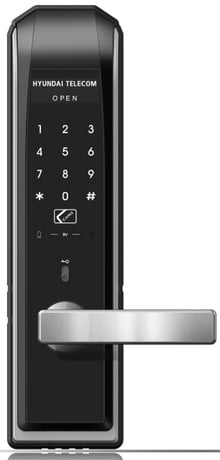

Product Image Published
1. Set the controller in inclusion mode. 2. Open the battery cover of the indoor body and press the [REG 1] button. 3. Press the [1][4] button after pressing the [*] button.
1. Set the controller in exclusion mode. 2. Open the battery cover of the indoor body and press the [REG 1] button. 3. Press the [3][6] button after pressing the [*] button.
Kaypad Touch, Button, Handle
1. Open the battery cover of the indoor body and press the [REG 1] button. 2. Press the [8][0] button after pressing the [*] button.
You can find the QR code and DSK on the product side.
1. Set the controller in inclusion mode. 2. Open the battery cover of the indoor body and press the [REG 1] button. 3. Press the [1][4] button after pressing the [*] button.
1. Set the controller in exclusion mode. 2. Open the battery cover of the indoor body and press the [REG 1] button. 3. Press the [3][6] button after pressing the [*] button.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Access Control |
|
| Emergency Alarm |
|
