Minoston
Smart Dimmer Switch
MS11Z
Light Dimmer Switch
HW: 1 FW: 1.00
ZM5202
6.81.03
0x0312 (786)
0xFF01 (65281)
0xFF04 (65284)
ZC10-19086731
2019-08-28 18:10:45.380154
N/A
Enhanced 232 Slave
Always On Slave
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.
This product can be operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network.Each module is designed to act as a repeater,which will re-transmit a radio frequency (RF) signal by routing the signal ,around obstacles and radio dead spots to ensure that the signal is received at its intended destination.

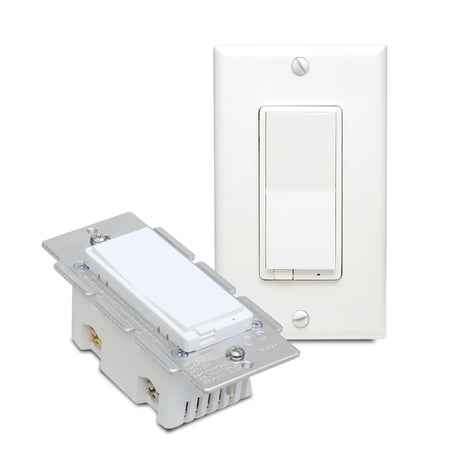

Product Image Published
1 - Locally Button function
Locally Button functionSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Up Button ON,Down Button OFF |
| 1 | 1 | Up Button ON,Down Button OFF |
| 2 | 2 | Up Button: On/Off Down Button: On/Off |
2 - Status LED Configuration
Status LED ConfigurationSize: 1 byte
Default: 0
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output and the LED are in the different state. |
| 1 | 1 | Output and the LED are in the same state. |
| 2 | 2 | Always OFF |
| 3 | 3 | Always ON |
3 - Enable Auto Turn-OFF Timer
Enable Auto Turn-OFF TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-OFF Timer Disabled |
| 1 | 1 | Auto Turn-OFF Timer Enabled |
4 - Count Down Configuration
Count Down Configuration(Turn off the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Count Down Configuration(Turn off the output by time） |
5 - Enable Auto Turn-ON Timer
Enable Auto Turn-ON TimerSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Auto Turn-ON Timer Disabled |
| 1 | 1 | Auto Turn-ON Timer Enabled |
6 - Count Down Configuration
Count Down Configuration(Turn ON the output by time）Size: 4 bytes
Default: 60
Minimum: 1
Maximum: 65535
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 65535 | Count Down Configuration(Turn ON the output by time） |
7 - Association Setting Parameter
Association Setting ParameterSize: 1 byte
Default: 15
Minimum: 0
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | None |
| 1 | 1 | Local |
| 2 | 2 | 3-way |
| 3 | 3 | 3-way&Local |
| 4 | 4 | Z-Wave hub |
| 5 | 5 | Z-Wave hub&Local |
| 6 | 6 | Z-Wave hub&3-way |
| 7 | 7 | Z-Wave hub&Local&3-way |
| 8 | 8 | Timer |
| 9 | 9 | Timer&Local |
| 10 | 10 | Timer&3-way |
| 11 | 11 | Timer&3-way&Local |
| 12 | 12 | Timer&Z-Wave hub |
| 13 | 13 | Timer&Z-Wave hub&Local |
| 14 | 14 | Timer&Z-Wave hub&3-way |
| 15 | 15 | All |
8 - Restores state after power failure
Size: 1 byte
Default: 2
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Output OFF |
| 1 | 1 | Output ON |
| 2 | 2 | The state before a power outage |
9 - Dimmer Speed Parameter （Local Button）
Dimmer Speed Parameter （Local Button）Size: 1 byte
Default: 1
Minimum: 1
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 99 | from 0x63 to 0x00 or from 0x00 to 0x63 need XXs |
10 - Multilevel minimum value can be set
Multilevel minimum value can be setSize: 1 byte
Default: 1
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Multilevel minimum value can be set（The minimum luminance value of the dimming）（Local Button） |
11 - Multilevel maxmum value can be set
Multilevel maxmum value can be setSize: 1 byte
Default: 0
Minimum: 0
Maximum: 99
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | Multilevel maxmum value can be set（The maxmum luminance value of the dimming）（Local Button） |
12 - quickly press UPPER paddle 2 times
quickly press UPPER paddle 2 timesSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Turn ON to 99 |
| 1 | 1 | turn on to the value relate |
14 - Double Tap Behavior
Double Tap BehaviorSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | enable double tap to full brightness |
| 1 | 1 | disable double tap to full brightness, single tap to last brightness level |
| 2 | 2 | disable double tap to full brightness, single tap always to full brightness |
15 - Enable or Disable local control
Enable or Disable local controlSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
ADD the MS11Z from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MS11Z to/from a Z-Wave Gateway with supporting Security.The MS11Z can support the Primary Controller that implemented the security S2.
Remove the MS11Z from the existing Z-Wave home control network with your primary controller. ---Refer to your primary controller instructions to process the inclusion / exclusion setup procedure. ---When prompted by your primary controller, click the Up or Down button three times in one second. Include MS11Z to/from a Z-Wave Gateway with supporting Security.The MS11Z can support the Primary Controller that implemented the security S2.
Press click Z-Wave button 3 times quickly, and hold for at least 10 seconds at the third time to restore the device to the factory Node:Please use this procedure only when the network primary controller is missing or otherwise inoperable.
