Philio Technology
Z-Wave Range Extender Repeater
PAU05
Repeater
HW: 1 FW: 1.01
SD3502
6.81.03
0x013C (316)
0x000C (12)
0x0074 (116)
ZC10-19086718
2019-08-21 16:45:50.288989
N/A
Enhanced 232 Slave
Always On Slave
The Range Extender Repeater is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™enabled network.
The Range Extender Repeater is a Z-Wave™ enabled device (interoperable, two-way RF mesh networking technology) and is fully compatible with any Z-Wave™enabled network. Every main powered Z-Wave enabled device acts as a signal repeater and multiple devices result in more possible transmission routes which helps eliminate “RF dead-sports” Z-Wave™ enabled devices displaying the Z-Wave™ logo can also be used with it regardless of the manufacturer, and ours can also be used in other manufacturer’s Z-Wave™ enabled networks. The product supports Over The Air(OTA) feature for the products firmware upgrade.

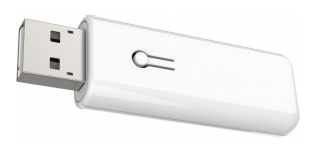

Product Image Published
1. Put your Z-Wave controller into inclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing Include button of PAU05 three times within 2 seconds will enter inclusion mode.
1. Put your Z-Wave controller into exclusion mode by following the instructions provided by the controller manufacturer. 2. Pressing Include button of PAU05 three times within 2 seconds will enter exclusion mode. 3. Node ID has been excluded.
1. Pressing Include button of PAU05 three times within 2 seconds will enter inclusion mode. 2. Within 1 second, press Include button of PAU05 again for 5 seconds. 3. IDs are excluded.
The DSK can be found on on the back of your product.
| Type | Value(s) |
|---|
