Ring
Ring Keypad EU
4AK1E9-0EU0
Entry Control Keypad
HW: 4 FW: 1.06:01.05
ZM5101
6.81.04
0x0346 (838)
0x0101 (257)
0x0202 (514)
ZC10-19096747
2019-09-12 14:26:11.35755
N/A
Enhanced 232 Slave
Listening Sleeping Slave

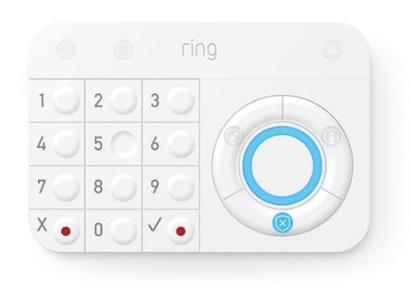

Ring Alarm features a Z-Wave keypad, which will act as an arming station for the Ring Alarm system. In addition to smartphone and web apps, the keypad provides users with an alternative interface for their alarm system.
Ring Alarm features a Z-Wave keypad, will act as an arming station for the Ring Alarm system. In addition to smartphone and web apps, the keypad provides users with an alternative interface for their alarm system. The keypad allows the user to arm and disarm their system, view system status and receive visual and audio feedback regarding system status and events. Designed for convenience, the keypad can be mounted on the wall or left on a tabletop. Additionally, a rechargeable battery and AC power option provide users with the flexibility to use the keypad in ways which work best for each individual. This keypad gives users a home arming station without having to worry about wiring, picking the right location, complicated hardware installation or making modifications to their homes. The keypad will include an interactive button interface, an informational display, a speaker, various LED lights, wall mount option, battery power, AC power option, and additional features to extend control of the Ring Protect system beyond the user’s mobile device and web applications. The keypad is intended to be used as a “dumb” terminal and will be non-programmable for end users.
Product Image Published
1 - Parameter 1
Battery Report Interval: Default Heartbeat check in time. Available settings: 70-1440 mins.Size: 2 bytes
Default: 70
Minimum: 70
Maximum: 1440
Possible values
| From | To | Desription |
|---|---|---|
| 70 | 1440 | Battery Report Interval |
2 - Parameter 2
Z-Wave Sleep Timeout: Time to wait after receiving ZW for more OTA messages. Available settings: 1-5 secondsSize: 1 byte
Default: 1
Minimum: 1
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 5 | Z-Wave Sleep Timeout |
3 - Parameter 3
Co-Proc Is Alive: Base Station check to see if the co-proc is operational. 0 = No 1 = YesSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Co-Proc Is Alive |
4 - Parameter 4
Proximity Timeout : Timeout when proximity is detected and no input is received. Available settings: 0-30 secondsSize: 1 byte
Default: 5
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | Proximity Timeout |
5 - Parameter 5
Button Press Timeout : Timeout when a button is pressed, but a sequence is not completed and buttons are no longer being pressed Available settings: 0-30 secondsSize: 1 byte
Default: 5
Minimum: 0
Maximum: 30
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 30 | Button Press Timeout |
6 - Parameter 6
Status Change Timeout: Available settings: 10-60 secondsSize: 1 byte
Default: 15
Minimum: 10
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 10 | 60 | Status Change Timeout |
7 - Parameter 7
Power Mode: Set the battery power saving mode for the keypad. 0=Extended Battery Life 1=Normal Battery LifeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Power Mode |
8 - Parameter 8
Key Backlight Timeout: Timeout for keypad LED backlight to stay on between key presses. Available settings: 1-15 secondsSize: 1 byte
Default: 3
Minimum: 1
Maximum: 15
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 15 | Key Backlight Timeout |
9 - Parameter 9
Key Backlight Brightness: Adjusts the brightness of the keypad backlight Available settings: 0-100%Size: 1 byte
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Key Backlight Brightness |
10 - Parameter 10
Key Tone Volume: Volume, Tone Time, Frequency Available settings: 0-10Size: 1 byte
Default: 8
Minimum: 1
Maximum: 8
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 8 | Key Tone Volume |
11 - Parameter 11
Ambient Light Sensor Level: Light threshold where keypad will stop backlighting if higher than Available settings: 0-100Size: 1 byte
Default: 5
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Ambient Light Sensor Level: |
12 - Parameter 12
Siren Volume: Volume to produce loudest output, Needs to be calibrated Available settings: 0-10Size: 1 byte
Default: 6
Minimum: 0
Maximum: 10
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 10 | Siren Volume |
13 - Parameter 13
Proximity On/OFF: Turn On and Off the Proximity Detection. 0 = off 1 = onSize: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 1 | Proximity On/OFF |
14 - Parameter 14
Proximity Distance: Adjusts the proximity distance (CM) If applicable to the product. Available settings: 0-100CMSize: 1 byte
Default: 100
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Proximity Distance |
15 - Parameter 15
Extended Battery Life LED Brightness Adjustment: Percentage of brightness for all LEDs in “Power Mode” = Extended (needs calibration) Available settings: 0-100%Size: 1 byte
Default: 50
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Extended Battery Life LED Brightness Adjustment |
16 - Parameter 16
Reduced Battery Life LED Brightness Adjustment: Percentage of brightness for all LEDs in ”Power Mode” = Reduced (needs calibration) Available settings: 0-100%Size: 1 byte
Default: 65
Minimum: 0
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 100 | Reduced Battery Life LED Brightness Adjustment |
17 - Parameter 17
Fast Blink Rate: LSB = 0.1 sec Fast Rate Type to blink the LEDs Available settings: 1-100Size: 1 byte
Default: 5
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Fast Blink Rate |
18 - Parameter 18
Slow Blink Rate: LSB = 0.5 sec Slow Rate Type to blink the LEDs Available settings: 1-100Size: 1 byte
Default: 2
Minimum: 1
Maximum: 100
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 100 | Slow Blink Rate |
19 - Parameter 19
Supervision Report Timeout. settings: 500-5000 millisecondSize: 2 bytes
Default: 1500
Minimum: 500
Maximum: 5000
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 5000 | Supervision Report Timeout. settings |
20 - Parameter 20
Number of Re-transmissions Attempts. settings: 0-5Size: 1 byte
Default: 1
Minimum: 0
Maximum: 5
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 5 | Number of Re-transmissions Attempts. settings |
21 - Parameter 21
Wait Period Between Re-transmissions Attempts. settings: 1-60 secondsSize: 1 byte
Default: 5
Minimum: 1
Maximum: 60
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 60 | Wait Period Between Re-transmissions Attempts. settings |
22 - Parameter 22
Available settings: 0~31. Set the languages to the keypad.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 31
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 31 | Language Used |
23 - Parameter 23
Read Only!Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Bit mask data for supported languages |
24 - Parameter 24
Read Only!Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Audio File Version |
Classic Inclusion Steps: 1. Initiate add keypad flow in the Ring Alarm mobile application – Follow the guided add flow instructions provided in the application 2. Select add manually and enter the 5 digit DSK pin found on the package of the keypad or the QR code found on the back of the keypad 3. Plugin the keypad to line power 4. Press and hold “1” key for three seconds 5. When the inclusion process is complete, the LED on the keypad will be solid blue, then go out. 6. Test the Keypad. Any button presses would beep
Exclusion Instructions: 1. Initiate remove keypad flow in the Ring Alarm mobile application – Select the settings icon from device details page and choose “Remove Device” 2. Press and hold “1” key for three seconds 3. When the exclusion process is complete, the LED on the keypad will be solid blue, then go out 4. Test the Keypad. Any button presses would not beep
Doesn't apply to this device - Wake up is not supported
Factory Default Instructions 1. Press and hold “5” key and using a pointed end of a paperclip, gently press and release reset button via the reset pinhole found at the back of the keypad 2. Red network LED at the top left-hand corner will start to blink rapidly 3. Wait for the red LED to stop blinking then release the “5” key Use this procedure only in the event that the network primary controller is missing or otherwise inoperable.
When prompted for the QR Code or PIN, you can find them on the back of the Keypad, or on the box, or on a card inside the box.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Heat Alarm | Heat sensor status: Overheat detected |
| Home Security |
|
| Power Management |
|
| System | SW status: System software failure |
