Namron
Dimmer 400W
Dimmer 400W
Light Dimmer Switch
HW: 1 FW: 1.00
ZM5101
6.71.01
0x0438 (1080)
0x0200 (512)
0xD005 (53253)
ZC10-19096754
2019-09-12 15:05:24.632597
N/A
Enhanced 232 Slave
Always On Slave
The in-wall dimmer is a Z-Wave device that is used to switch ON/OFF and adjust light intensity of the connected light and can be controlled by other Z-Wave devices.
The in-wall dimmer is a Z-Wave device that is used to switch ON/OFF and adjust light intensity of the connected light and can be controlled by other Z-Wave devices. The In-wall Dimmer can be included and operated in any Z-Wave network with other Z-Wave certified devices from other manufacturers and/or other applications. All non-battery operated nodes within the network will act as repeaters regardless of vendor to increase reliability of the network. The encryption mode that the dimmer supports is S2 Unauthenticated. When the dimmer is being included into a Z-Wave network, you can use your primary controller/gateway to enable encryption mode or disable encryption. (The primary controller/gateway shall support encryption mode configuration). The dimmer supports OTA and can update firmware wirelessly.

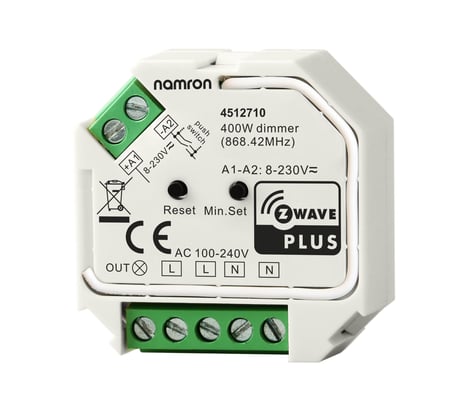

Product Image Published
2 - Saving load state before power failure
Saving load state before power failureSize: 1 byte
Default: 0
Minimum: 0
Maximum: 2
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | shutoff load |
| 1 | 1 | turn on load |
| 2 | 2 | save load state before power failure |
3 - Enable/disable to send the basic report
Enable/disable to send the basic report to the Lifeline when the load state changed (When value set as 1, re-power on the dimmer, it will send Basic report automatically）Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Disable to send Basic report |
| 1 | 1 | Enable to send Basic report |
4 - Default fade time
Default fade time (unit is second, this value has the same function as Duration of Multilevel)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 255
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Instantly |
| 1 | 127 | 1 second (0x01) to 127 seconds (0x7F) in 1 second resolution. |
| 128 | 254 | 1 minute (0x80) to 127 minutes (0xFE) in 1 minute resolution. |
| 255 | 255 | Factory default duration. （1 second） |
5 - Setting minimum brightness value
Setting minimum brightness valueSize: 1 byte
Default: 0
Minimum: 0
Maximum: 50
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 50 | the bigger the value is, the higher the load’s minimum brightness is |
6 - Choose MOSFET driving type
Choose MOSFET driving typeSize: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | trailing edge |
| 1 | 1 | leading edge |
7 - Enable/disable external switch to be added to and removed from a network
Enable/disable external switch to be added to and removed from a network (when enables this function, triple press the external switch within 1.5 seconds to be added to or removed from a network)Size: 1 byte
Default: 1
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | disable |
| 1 | 1 | enable |
1. Set primary controller/gateway into inclusion mode (Please refer to your primary controllers manual on how to turn your controller into inclusion). 2. Power on the in-wall dimmer and set it into inclusion mode. There are two methods to set the in-wall dimmer into inclusion mode: 1)Repower on the dimmer, it will be set into inclusion mode automatically, and waiting to be included. 2)Triple press the action button on the dimmer, it will set the dimmer into inclusion mode. The connected light will stay solid on for 3 seconds to indicate successful inclusion.
There are two exclusion methods: Method 1: Exclusion from the primary controller/gateway as follows: 1. Set the primary controller/gateway into exclusion mode (Please refer to your primary controllers manual on how to set your controller into exclusion). 2. Triple press the action button, the dimmer will be set to exclusion mode, and waiting to be excluded, then the dimmer will be excluded from the network. Method 2: Factory reset the dimmer will force the it to be excluded from a network. (please refer to the part “Factory Reset” of this manual)
Press and hold down the action button for over 10 seconds, the dimmer will be reset to factory defaults.Please use this procedure only when the network primary controller is missing or otherwise inoperable.
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| System | Emergency shutoff status: Emergency shutoff |
