FIBARO
RGBW Controller 2
FGRGBW-442
Multilevel Switch - Color Tunable Multilevel
HW: 2 FW: 5.00:05.00:01.00
ZM5101
6.81.03
0x010F (271)
0x0902 (2306)
0x2000 (8192)
ZC10-19096753
2019-09-12 14:15:52.871514
N/A
Enhanced 232 Slave
Always On Slave

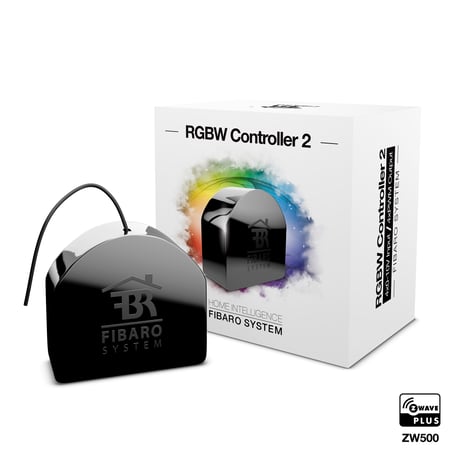

FIBARO RGBW Controller 2 is a universal, Z-Wave Plus compatible RGB/RGBW controller.
FIBARO RGBW Controller 2 is a universal, Z-Wave Plus compatible RGB/RGBW controller. FIBARO RGBW Controller 2 uses PWM output signal, allowing it to control LED, RGB, RGBW strips, halogen lights and other resistive loads. It can also measure active power and energy consumed by the load. Controlled devices may be powered by 12 or 24V DC. Inputs support momentary/toggle switches and 0-10V analog sensors, like temperature sensors, humidity sensors, light sensors etc. Main features of FIBARO RGBW Controller: • Compatible with any certified Z-Wave or Z-Wave Plus controller. • Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. • Works as a Z-Wave signal repeater. • Allows for controlling: » RGB/RGBW LED strip, » one-color LED strips, » halogen lights, » other compliant resistive loads. • Allows for connecting to inputs: » switches/buttons, » 0-10V analog sensors or potentiometers. • Active power and energy metering.

Product Image Published
View configuration parameters (29)
1 - Remember device status before the power failure
This parameter determines how the device will react in the event of power supply failure (e.g. power outage or taking out from the electrical outlet). After the power supply is back on, the device can be restored to previous state or remain switched off.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | device remains switched off |
| 1 | 1 | device restores the state from before the power failure |
20 - Input 1 - operating mode
This parameter allows to choose mode of 1st input (IN1). Change it depending on connected device.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Analog input without internal pull-up (Sensor Multilevel) |
| 1 | 1 | Analog input with internal pull-up (Sensor Multilevel) |
| 2 | 2 | Momentary switch (Central Scene) |
| 3 | 3 | Toggle switch: switch state on every input change (Central Scene) |
| 4 | 4 | Toggle switch: contact closed – ON, contact opened – OFF (Central Scene) |
21 - Input 2 - operating mode
This parameter allows to choose mode of 2nd input (IN2). Change it depending on connected device.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Analog input without internal pull-up (Sensor Multilevel) |
| 1 | 1 | Analog input with internal pull-up (Sensor Multilevel) |
| 2 | 2 | Momentary switch (Central Scene) |
| 3 | 3 | Toggle switch: switch state on every input change (Central Scene) |
| 4 | 4 | Toggle switch: contact closed – ON, contact opened – OFF (Central Scene) |
22 - Input 3 - operating mode
This parameter allows to choose mode of 3rd input (IN3). Change it depending on connected device.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Analog input without internal pull-up (Sensor Multilevel) |
| 1 | 1 | Analog input with internal pull-up (Sensor Multilevel) |
| 2 | 2 | Momentary switch (Central Scene) |
| 3 | 3 | Toggle switch: switch state on every input change (Central Scene) |
| 4 | 4 | Toggle switch: contact closed – ON, contact opened – OFF (Central Scene) |
23 - Input 4 - operating mode
This parameter allows to choose mode of 4th input (IN4). Change it depending on connected device.Size: 1 byte
Default: 2
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Analog input without internal pull-up (Sensor Multilevel) |
| 1 | 1 | Analog input with internal pull-up (Sensor Multilevel) |
| 2 | 2 | Momentary switch (Central Scene) |
| 3 | 3 | Toggle switch: switch state on every input change (Central Scene) |
| 4 | 4 | Toggle switch: contact closed – ON, contact opened – OFF (Central Scene) |
30 - Alarm configuration - 1st slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. X – channels summarized: 1/2/3/4 channel are equal to values 1/2/4/8. Y – sequence number: 1-10 (parameter 157).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action: 0x00 – no reaction, 0x0X – turn off selected channel, 0x1X – turn on selected channel, 0x2X – blink selected channel, 0x3Y – activate alarm sequence |
31 - Alarm configuration - 2nd slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. X – channels summarized: 1/2/3/4 channel are equal to values 1/2/4/8. Y – sequence number: 1-10 (parameter 157).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action: 0x00 – no reaction, 0x0X – turn off selected channel, 0x1X – turn on selected channel, 0x2X – blink selected channel, 0x3Y – activate alarm sequence |
32 - Alarm configuration - 3rd slot
his parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. X – channels summarized: 1/2/3/4 channel are equal to values 1/2/4/8. Y – sequence number: 1-10 (parameter 157).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action: 0x00 – no reaction, 0x0X – turn off selected channel, 0x1X – turn on selected channel, 0x2X – blink selected channel, 0x3Y – activate alarm sequence |
33 - Alarm configuration - 4th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. X – channels summarized: 1/2/3/4 channel are equal to values 1/2/4/8. Y – sequence number: 1-10 (parameter 157).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action: 0x00 – no reaction, 0x0X – turn off selected channel, 0x1X – turn on selected channel, 0x2X – blink selected channel, 0x3Y – activate alarm sequence |
34 - Alarm configuration - 5th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification. X – channels summarized: 1/2/3/4 channel are equal to values 1/2/4/8. Y – sequence number: 1-10 (parameter 157).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action: 0x00 – no reaction, 0x0X – turn off selected channel, 0x1X – turn on selected channel, 0x2X – blink selected channel, 0x3Y – activate alarm sequence |
35 - Duration of alarm signalization
This parameter determines duration of alarm signalization.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | infinite signalization |
| 1 | 32400 | (1s-9h, 1s step) |
40 - Input 1 - sent scenes
This parameter defines which actions result in sending scene ID and attribute assigned to them. Parameter is relevant only if parameter 20 is set to 2, 3 or 4.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 times |
| 4 | 4 | Key pressed 3 times |
| 8 | 8 | Key hold down and key released |
41 - Input 2 - sent scenes
This parameter defines which actions result in sending scene ID and attribute assigned to them. Parameter is relevant only if parameter 21 is set to 2, 3 or 4.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 times |
| 4 | 4 | Key pressed 3 times |
| 8 | 8 | Key hold down and key released |
42 - Input 3 - sent scenes
This parameter defines which actions result in sending scene ID and attribute assigned to them. Parameter is relevant only if parameter 22 is set to 2, 3 or 4.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 times |
| 4 | 4 | Key pressed 3 times |
| 8 | 8 | Key hold down and key released |
43 - Input 4 - sent scenes
This parameter defines which actions result in sending scene ID and attribute assigned to them. Parameter is relevant only if parameter 23 is set to 2, 3 or 4.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 times |
| 4 | 4 | Key pressed 3 times |
| 8 | 8 | Key hold down and key released |
61 - Power reports - on change
This parameter determines the minimum change in consumed power that will result in sending new power report to the main controller. For loads under 10W the parameter is not relevant and reports are sent every 2W change. Power reports are sent no oft en than every 30 seconds.Size: 2 bytes
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reports are disabled |
| 1 | 500 | (1-500%) - change in power |
62 - Power reports - periodic
This parameter determines in what time intervals the periodic power reports are sent to the main controller. Periodic reports do not depend of power change (parameter 61).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports are disabled |
| 30 | 32400 | (30-32400s) - report interval |
63 - Analog inputs reports - on change
This parameter defines minimal change (from the last reported) of analog input voltage that results in sending new report. Parameter is relevant only for analog inputs (parameter 20, 21, 22 or 23 set to 0 or 1). Analog inputs reports (Sensor Multilevel) are sent no often than every 30 seconds.Size: 2 bytes
Default: 5
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting on change disabled |
| 1 | 100 | (0.1-10V, 0.1V step) |
64 - Analog inputs reports - periodic
This parameter defines reporting period of analog inputs value. Periodical reports are independent from changes in value (parameter 63). Parameter is relevant only for analog inputs (parameter 20, 21, 22 or 23 set to 0 or 1).Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodical reports disabled |
| 30 | 32400 | (30-32400s, 1s step) |
65 - Energy reports - on change
This parameter determines the minimum change in consumed energy that will result in sending new energy report to the main controller. Energy reports are sent no often than every 30 seconds.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reports are disabled |
| 1 | 500 | (0.01 - 5 kWh) - change in energy |
66 - Energy reports - periodic
This parameter determines in what time intervals the periodic energy reports are sent to the main controller. Periodic reports do not depend of energy change (parameter 65)Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports are disabled |
| 30 | 32400 | (30-32400s) - report interval |
150 - Inputs - LED colour control mode
This parameter determines how connected switches control LED strips.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | RGBW mode (every input controls output with the same number, IN1‑OUT1, IN2‑OUT2, IN3‑OUT3, IN4‑OUT4) |
| 1 | 1 | HSB and White mode (inputs works in HSB color model, IN1‑H (Hue), IN2‑S (Saturation), IN3‑B (Brightness), IN4‑White (OUT4) |
151 - Local control - transition time
This parameter determines time of smooth transition between 0% and 100% when controlling with connected switches.Size: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | instantly |
| 1 | 127 | (1s-127s, 1s step) |
| 128 | 254 | (1min-127min, 1min step) |
152 - Remote control - transition time
This parameter determines time of smooth transition between initial and target state when controlling via Z-Wave network.Size: 2 bytes
Default: 3
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | instantly |
| 1 | 127 | (1s-127s, 1s step) |
| 128 | 254 | (1min-127min, 1min step) |
153 - Active reports
This parameter allows to select which reports are sent to Lifeline group. Values can be combined. Value 0 means none of the listed reports will be sent.Size: 2 bytes
Default: 1023
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Root/EP1 Switch Color Report (RGBW) |
| 2 | 2 | Root/EP1 Central Scene Report |
| 4 | 4 | EP2 Switch Multilevel Report (Red) |
| 8 | 8 | EP3 Switch Multilevel Report (Green) |
| 16 | 16 | EP4 Switch Multilevel Report (Blue) |
| 32 | 32 | EP5 Switch Multilevel Report (White) |
| 64 | 64 | EP6 Sensor Multilevel Report (analog input 1) |
| 128 | 128 | EP7 Sensor Multilevel Report (analog input 2) |
| 256 | 256 | EP8 Sensor Multilevel Report (analog input 3) |
| 512 | 512 | EP9 Sensor Multilevel Report (analog input 4) |
154 - ON frame value for single click
This parameter defines value sent to devices in association groups. The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | value sent to devices |
| 255 | 255 | value sent to devices |
155 - OFF frame value for single click
This parameter defines value sent to devices in association groups. The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | value sent to devices |
| 255 | 255 | value sent to devices |
156 - ON frame value for double click
This parameter defines value sent to devices in association groups. The parameters consist of 4 bytes, each byte reserved for separate channel, from least significant (IN1) to most significant (IN4).Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | value sent to devices |
| 255 | 255 | value sent to devices |
157 - Start programmed sequence
Setting this parameter will start programmed sequence with selected number. User can define own sequences via controller.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | sequence inactive |
| 1 | 5 | user-defined sequence |
| 6 | 6 | Fireplace sequence |
| 7 | 7 | Storm sequence |
| 8 | 8 | Rainbow sequence |
| 9 | 9 | Aurora sequence |
| 10 | 10 | Police (red-white-blue) sequence |
Operating instructions (4)
Adding (Inclusion) – Z-Wave device learning mode, allowing to add the device to existing Z-Wave network. Adding manually: To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, three times click the service button. 4. If you are adding in Security S2 Authenticated, input the underlined part of the DSK (label on the box). 5. LED will start blinking yellow, wait for the adding process to end. 6. Adding result will be confirmed by the Z-Wave controller’s message and the LED: • Green – successful (non-secure, S0, S2 Unauthenticated), • Magenta – successful (Security S2 Authenticated), • Red – not successful. Adding using Smart Start: To add the device to the Z-Wave network using SmartStart: 1. To use SmartStart your controller needs to support Security S2(see the controller’s manual). 2. Enter the full DSK string code to your controller. If your controller is capable of QR scanning, scan the QR code placed on the label on the box. 3. Power the device. 4. Wait for the adding process to start (up to few minutes), which is signalled with yellow LED blinking. 5. Adding result will be confirmed by the Z-Wave controller’s message and the LED: • Green – successful (non-secure, S0, S2 Unauthenticated), • Magenta – successful (Security S2 Authenticated), • Red – not successful.
Removing (Exclusion) – Z-Wave device learning mode, allowing to remove the device from existing Z-Wave network. Removing also results in resetting the device to factory defaults. To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, three times click the service button. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour.
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory. 1. Press and hold the service button to enter the menu. 2. Release service button when the device glows yellow. 3. Quickly click the service button to confirm. 4. After few seconds the device will be restarted, which is signalled with the red colour. Resetting the device is not the recommended way of removing the device from the Z-Wave network. Use reset procedure only if the primary controller is missing or inoperable. Certain device removal can be achieved by the procedure of removing described.
If you are adding in Security S2 Authenticated, input the underlined part of the DSK (label on the box).
Documents (2)
Features (5)
| Type | Value(s) |
|---|
Supported notifications (2)
| Group | Type |
|---|---|
| Power Management | Over-current status: Over-current detected |
| System | HW status: System hardware failure (manufacturer proprietary failure code provided) |
Supported sensors (2)
| Sensor type |
|---|
| General Purpose |
| Power |
Supported meter (1)
| Meter type |
|---|
| Electric Meter Consumption |
