Ilumin by Inovelli
Smart Bulb
LZW40
Light Dimmer Switch
HW: 255 FW: 2.24
ZM5101
6.51.09
0x031E (798)
0x0007 (7)
0x0001 (1)
ZC10-19096748
2019-09-12 14:24:27.750521
N/A
Enhanced 232 Slave
Always On Slave

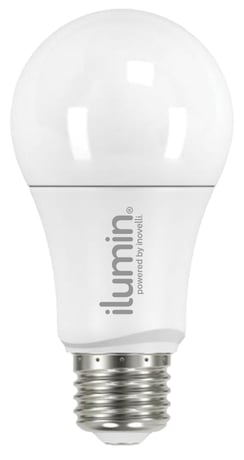

The dimming bulb by ilumin allows you to experience smart lighting at its finest (set schedules, scenes, etc). All powered by Z-Wave Plus technology.
With 806 lumens and smooth dimming, this bulb has it all. Best part? It's powered by Z-Wave Plus technology. Imagine walking into a room, tapping a switch (hopefully Inovelli) and your ilumin lights come on to a beautiful movie scene. Or as you're winding down for the night, the lights gradually dim off as you drift to sleep. These are some of the many things you can do with smart bulbs and we're excited to be able to share them with you.
Product Image Published
2 - Memory Function
This parameter will determine how your bulb behaves after power is restored to it from an outage.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 1
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Remembers Last State |
| 1 | 1 | Bulb turns ON after power outage |
With the power to the smart bulb turned off, start the inclusion process on your HUB/Gateway. Once the inclusion process has started, turn on power to the bulb and it will blink twice (2x) indicating it’s in inclusion mode. If the bulb was included successfully, it will blink one more (1x) time. If it was not included successfully, you may have to run an exclusion as mentioned above. If there’s still issues, please ensure your bulb is within range.
If you are having issues pairing/including your device, please ensure your bulb is within range of your HUB (pages 2-3). If you believe you’re within range and it’s still not working, then you may have to run an Exclusion. Put your HUB in Exclusion mode and turn the power on. Your bulb will blink twice (2x), indicating it’s in exclusion mode. When exclusion is successful, it will blink one more time (1x) to confirm. Your HUB should say that the device is excluded.
You may power on/off the bulb 6x (between 0.5-2 seconds each time) or use a certified controller to remove the device from your network to factory default. Only use this procedure in the event that the network primary controller is missing or otherwise inoperable. Your bulb will flash twice to confirm factory reset.
| Type | Value(s) |
|---|
| Sensor type |
|---|
| Illuminance |
