FIBARO
Wall Switch
FGWDSEU-221
On/Off Power Switch
HW: 1 FW: 5.02:05.02
ZM5101
6.81.01
0x010F (271)
0x1A01 (6657)
0x1000 (4096)
ZC10-19106772
2019-09-30 18:27:13.51946
N/A
Enhanced 232 Slave
Always On Slave
FIBARO Walli Single Switch is a smart wall switch designed to control one or two light sources via Z-Wave network.
FIBARO Walli Single Switch is a smart wall switch designed to control one or two light sources via Z-Wave network. It measures active power and energy consumed by the controlled load. You can install it with provided cover plate or other compatible. Main features of FIBARO Walli Double Switch: - Can be used with: o Conventional incandescent and halogen light sources, o LED lamps, o Fluorescent lamps, o Electronic transformers (for ELV halogen lamps and LED bulbs), o Ferromagnetic transformers (for MLV halogen lamps). - Can be used with provided cover plate or one of the following: o GIRA – System 55 (Standard 55, E2, Event, Event Clear), o Legrand – Céliane, o Schneider – Odace. - Active power and energy consumption metering. - Supports Z-Wave network Security Modes: S0 with AES-128 encryption and S2 Authenticated with PRNG-based encryption. - Works as Z-Wave signal repeater (all non-battery operated devices within the network will act as repeaters to increase reliability of the network). - May be used with all devices certified with the Z-Wave Plus certificate and should be compatible with such devices produced by other manufacturers.

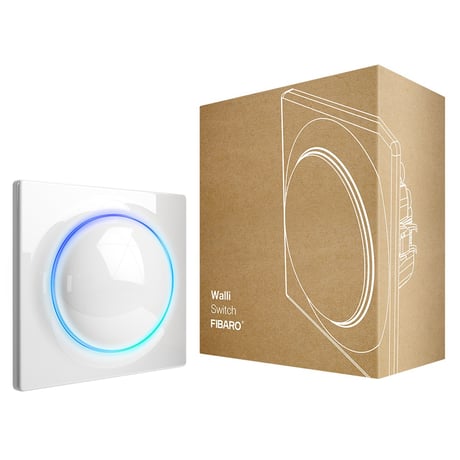

Product Image
1 - Remember device state
This parameter determines how the device will react in the event of power supply failure (e.g. power outage). The parameter is not relevant for outputs set to pulse mode (parameter 150/151 set to 2).Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | remains switched off after restoring power |
| 1 | 1 | restores remembered state after restoring power |
2 - First channel – overload safety switch
This function allows to turn off the controlled device in case of exceeding the defined power. Controlled device can be turned back on via button or sending a control frame.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 45000
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function disabled |
| 10 | 45000 | (1.0-4500.0W, step 0.1W) – power threshold |
3 - Second channel – overload safety switch
This function allows to turn off the controlled device in case of exceeding the defined power. Controlled device can be turned back on via button or sending a control frame.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | function disabled |
| 10 | 36200 | (1.0-3620.0W, step 0.1W) – power threshold |
10 - LED frame – power limit
This parameter determines maximum active power. Exceeding it results in the LED frame flashing violet. Function is active only when parameter 11 is set to 8 or 9.Size: 4 bytes
Default: 36800
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 500 | 36800 | (50.0-3680.0W, step 0.1W) – power threshold |
11 - LED frame – colour when ON
This parameter defines the LED colour when thedevice is ON. When set to 8 or 9, LED frame colour will change depending on he measured power and parameter 10. Other colours are set permanently and do not depend on power consumption.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED disabled |
| 1 | 1 | White |
| 2 | 2 | Red |
| 3 | 3 | Green |
| 4 | 4 | Blue |
| 5 | 5 | Yellow |
| 6 | 6 | Cyan |
| 7 | 7 | Magenta |
| 8 | 8 | colour changes smoothly depending on measured power |
| 9 | 9 | colour changes in steps depending on measured power |
12 - LED frame – colour when OFF
This parameter defines the LED colour when the device is OFF.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED disabled |
| 1 | 1 | White |
| 2 | 2 | Red |
| 3 | 3 | Green |
| 4 | 4 | Blue |
| 5 | 5 | Yellow |
| 6 | 6 | Cyan |
| 7 | 7 | Magenta |
13 - LED frame – brightness
This parameter allows to adjust the LED frame brightness.Size: 1 byte
Default: 100
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | LED disabled |
| 1 | 100 | (1-100% brightness) |
| 101 | 101 | brightness directly proportional to measured power |
| 102 | 102 | brightness inversely proportional to measured power |
20 - Buttons operation
This parameter defines how device buttons should control the channels.Size: 1 byte
Default: 1
Minimum: 0
Maximum: 3
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | 1st and 2nd button toggle the load |
| 2 | 2 | 1st button turns the load ON, 2nd button turns the load OFF |
| 3 | 3 | device works in 2-way/3-way switch configuration |
24 - Buttons orientation
This parameter allows reversing the operation of the buttons.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | default (1st button controls 1st channel, 2nd button controls 2nd channel) |
| 1 | 1 | reversed (1st button controls 2nd channel, 2nd button controls 1st channel) |
25 - Outputs orientation
This parameter allows reversing the operation of Q1 and Q2 without changing the wiring (e.g. in case of invalid connection). Changing orientation turns both outputs off.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | default (Q1 - 1st channel, Q2 - 2nd channel) |
| 1 | 1 | reversed (Q1 - 2nd channel, Q2 - 1st channel) |
30 - Alarm configuration - 1st slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 0 | [MSB] – Notification Type |
| 2 | 2 | Notification Value |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
31 - Alarm configuration - 2nd slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Value |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
32 - Alarm configuration - 3rd slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Value |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
33 - Alarm configuration - 4th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Notification Type |
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] – action |
34 - Alarm configuration - 5th slot
This parameter determines to which alarm frames and how the device should react. The parameters consist of 4 bytes, three most significant bytes are set according to the official Z-Wave protocol specification.Size: 4 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | [MSB] – Notification Type |
| 2 | 2 | Notification Status |
| 3 | 3 | Event/State Parameters |
| 4 | 4 | [LSB] - action |
35 - Alarm configuration – duration
This parameter defines duration of alarm sequence. When time set in this parameter elapses, alarm is cancelled, LED frame and relay restore normal operation, but do not recover state from before the alarm.Size: 2 bytes
Default: 600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | infinite |
| 1 | 32400 | (1s-9h, 1s step) – duration |
40 - First button – scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 time |
| 4 | 4 | Key pressed 3 time |
| 8 | 8 | Key hold down and key released |
41 - Second button – scenes sent
This parameter determines which actions result in sending scene IDs assigned to them. Values can be combined (e.g. 1+2=3 means that scenes for single and double click are sent). Enabling scenes for triple click disables entering the device in learn mode by triple clicking.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 1 | 1 | Key pressed 1 time |
| 2 | 2 | Key pressed 2 time |
| 4 | 4 | Key pressed 3 time |
| 8 | 8 | Key hold down and key released |
60 - Power reports – include self-consumption
This parameter determines whether the power measurements should include power consumed by the device itself.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | Self-consumption not included |
| 1 | 1 | Self-consumption included |
61 - Power reports for first channel – on change
This parameter defines minimal change (from the last reported) in measured power that results in sending new report. For loads under 50W the parameter is irrelevant, report are sent every 5W change.Size: 2 bytes
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting on change disabled |
| 1 | 500 | (1-500%, 1% step) – minimal change |
62 - Power reports for first channel – periodic
This parameter defines reporting interval for measured power. Periodic reports are independent from changes in value (parameter 61).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports disabled |
| 30 | 32400 | (30s-9h, 1s step) – time interval |
63 - Power reports for second channel – on change
This parameter defines minimal change (from the last reported) in measured power that results in sending new report. For loads under 50W the parameter is irrelevant, report are sent every 5W change.Size: 2 bytes
Default: 15
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting on change disabled |
| 1 | 500 | (1-500%, 1% step) – minimal change |
64 - Power reports for second channel – periodic
This parameter defines reporting interval for measured power. Periodic reports are independent from changes in value (parameter 63).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports disabled |
| 30 | 32400 | (30s-9h, 1s step) – time interval |
65 - Energy reports for first channel – on change
This parameter defines minimal change (from the last reported) in measured energy that results in sending new report.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting on change disabled |
| 1 | 500 | (0.01-5kWh, 0.01kWh step) – minimal change |
66 - Energy reports for first channel – periodic
This parameter defines reporting interval for measured energy. Periodic reports are independent from changes in value (parameter 66).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports disabled |
| 30 | 32400 | (30s-9h, 1s step) – time interval |
67 - Energy reports for second channel – on change
This parameter defines minimal change (from the last reported) in measured energy that results in sending new report.Size: 2 bytes
Default: 10
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | reporting on change disabled |
| 1 | 500 | (0.01-5kWh, 0.01kWh step) – minimal change |
68 - Energy reports for second channel – periodic
This parameter defines reporting interval for measured energy. Periodic reports are independent from changes in value (parameter 67).Size: 2 bytes
Default: 3600
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | periodic reports disabled |
| 30 | 32400 | (30s-9h, 1s step) – time interval |
150 - First channel – operating mode
This parameter allows to choose operating for the 1st channel .Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | standard operation |
| 1 | 1 | delayed OFF |
| 2 | 2 | single pulse |
151 - Second channel – operating mode
This parameter allows to choose operating for the 2nd channel.Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | standard operation |
| 1 | 1 | delayed OFF |
| 2 | 2 | single pulse |
152 - First channel - reaction to switch for delayed OFF / pulse modes
This parameter determines how the device in timed mode reacts to pushing the button for 1st channel. The parameter is relevant only for button toggles modes (parameter 20 set to 1 or 3).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | cancel mode and set default state |
| 1 | 1 | no reaction - mode runs until it ends |
| 2 | 2 | reset timer - start counting from the beginning |
153 - Second channel - reaction to switch for delayed OFF / pulse modes
This parameter determines how the device in timed mode reacts to pushing the button for 2nd channel. The parameter is relevant only for button toggles modes (parameter 20 set to 1 or 3).Size: 1 byte
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | cancel mode and set default state |
| 1 | 1 | no reaction - mode runs until it ends |
| 2 | 2 | reset timer - start counting from the beginning |
154 - First channel - time parameter for delayed OFF / pulse modes
This parameter allows to set time parameter used in timed modes for 1st channel (parameter 150). Delay time for switching off or duration of the pulse.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0.1 second |
| 1 | 32000 | (1-32000s, 1s step) – time parameter |
155 - Second channel - time parameter for delayed OFF / pulse modes
This parameter allows to set time parameter used in timed modes for 2nd channel (parameter 151). Delay time for switching off or duration of the pulse.Size: 2 bytes
Default: 50
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 0 | 0.1 second |
| 1 | 32000 | (1-32000s, 1s step) – time parameter |
156 - First channel – Switch ON value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch ON command to devices associated in 2nd and 3rd association group for manual changes of Endpoint 1 state.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | 2nd association group |
| 255 | 255 | 3rd association group |
157 - First channel – Switch OFF value sent to 2nd and 3rd association groups
This parameter defines value sent with Switch OFF command to devices associated in 2nd and 3rd association group for manual changes of Endpoint 1 state.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | 2nd association group |
| 255 | 255 | 3rd association group |
158 - First channel – Double Click value sent to 2nd and 3rd association groups
This parameter defines value sent with Double Click command to devices associated in 2nd and 3rd association group for manual changes of Endpoint 1 state.Size: 2 bytes
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | 2nd association group |
| 255 | 255 | 3rd association group |
159 - Second channel – Switch ON value sent to 4th and 5th association groups
This parameter defines value sent with Switch ON command to devices associated in 4th and 5th association group for manual changes of Endpoint 2 state.Size: 2 bytes
Default: 255
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | 4th association group |
| 255 | 255 | 5th association group |
160 - Second channel – Switch OFF value sent to 4th and 5th association groups
This parameter defines value sent with Switch OFF command to devices associated in 4th and 5th association group for manual changes of Endpoint 2 state.Size: 2 bytes
Default: 0
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | 4th association group |
| 255 | 255 | 5th association group |
161 - Second channel – Double Click value sent to 4th and 5th association groups
This parameter defines value sent with Double Click command to devices associated in 4th and 5th association group for manual changes of Endpoint 2 state.Size: 2 bytes
Default: 99
Minimum: 0
Maximum: 0
Possible values
| From | To | Desription |
|---|---|---|
| 0 | 99 | 4th association group |
| 255 | 255 | 5th association group |
To add the device to the Z-Wave network manually: 1. Power the device. 2. Set the main controller in (Security/non-Security Mode) add mode (see the controller’s manual). 3. Quickly, three times click one of the buttons. 4. If you are adding in Security S2 Authenticated, scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 5. LED will start blinking yellow, wait for the adding process to end. 6. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful. To add the device to the Z-Wave network using SmartStart: 1. Set the main controller in Security S2 Authenticated add mode (see the controller’s manual). 2. Scan the DSK QR code or input the underlined part of the DSK (label on the bottom of the box). 3. Power the device. 4. Wait for the adding process to start (up to few minutes), which is signaled with yellow LED blinking. 5. Adding result will be confirmed by the Z-Wave controller’s message and the LED frame: - Green - successful (non-secure, S0, S2 non-authenticated), - Magenta - successful (Security S2 Authenticated), - Red – not successful.
To remove the device from the Z-Wave network: 1. Power the device. 2. Set the main controller into remove mode (see the controller’s manual). 3. Quickly, three times click one of the buttons. 4. LED will start blinking yellow, wait for the removing process to end. 5. Successful removing will be confirmed by the Z-Wave controller’s message and red LED colour.
FIBARO Walli Double Switch is powered using DC power supply unit so it is always awake.
Reset procedure allows to restore the device back to its factory settings, which means all information about the Z-Wave controller and user configuration will be deleted. Resetting to factory defaults does not reset energy consumption memory. 1. Quickly, three times click, then press and hold one of the buttons to enter the menu. 2. Release the button when the device glows yellow. 3. Quickly click the button to confirm. 4. After a few seconds the device will be restarted, which is signalled with the red LED colour.
Page 12, chapter 5.1: "If you are adding in Security S2 Authenticated, input the underlined part of the DSK (label on the bottom of the box)."
| Type | Value(s) |
|---|
| Group | Type |
|---|---|
| Power Management |
|
| System | HW status: System hardware failure (manufacturer proprietary failure code provided) |
| Meter type |
|---|
| Electric Meter Consumption |
